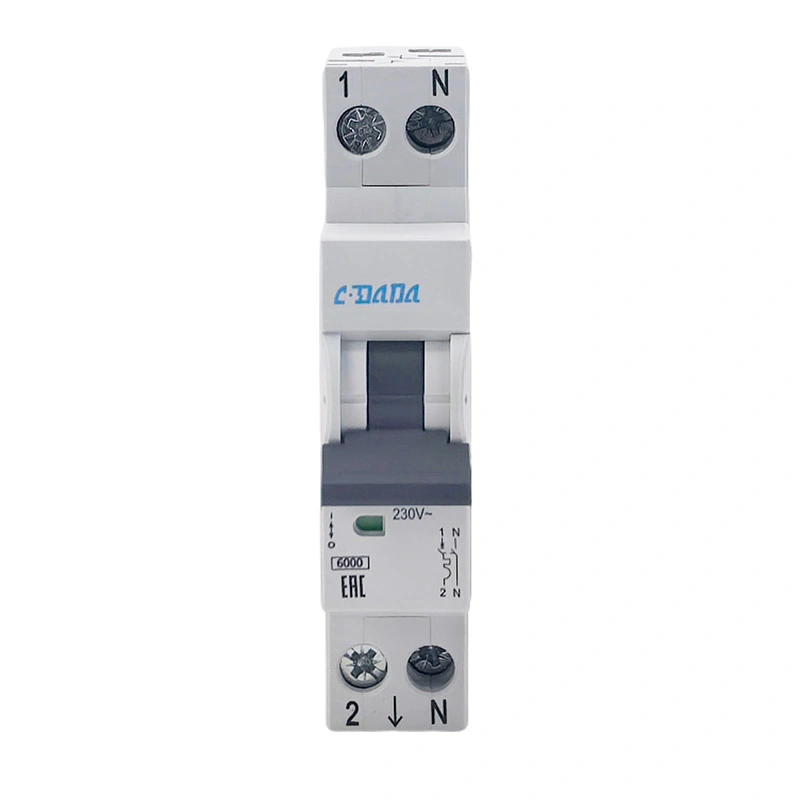

Miniature Circuit Breaker DPN 6KA
Model:DAB7N
CDADA Miniature Circuit Breaker DPN 6KA cikakke ne don siye da yawa, ingantaccen 1P + N ƙaramin mai jujjuyawa mai dacewa tare da IEC60898-1 don amintaccen gida da kariyar da'irar kasuwanci. Yana amfani da ƙira-biyu-karye-ƙira da bargawar thermal-magnetic tripping, mai sauƙin shigarwa akan dogo na DIN kuma mai sauƙin kulawa. Yana haɗu da ingantaccen tsari tare da tsawon rayuwar sabis, yana tabbatar da amintaccen samar da wutar lantarki don tsarin wutar lantarki daban-daban.

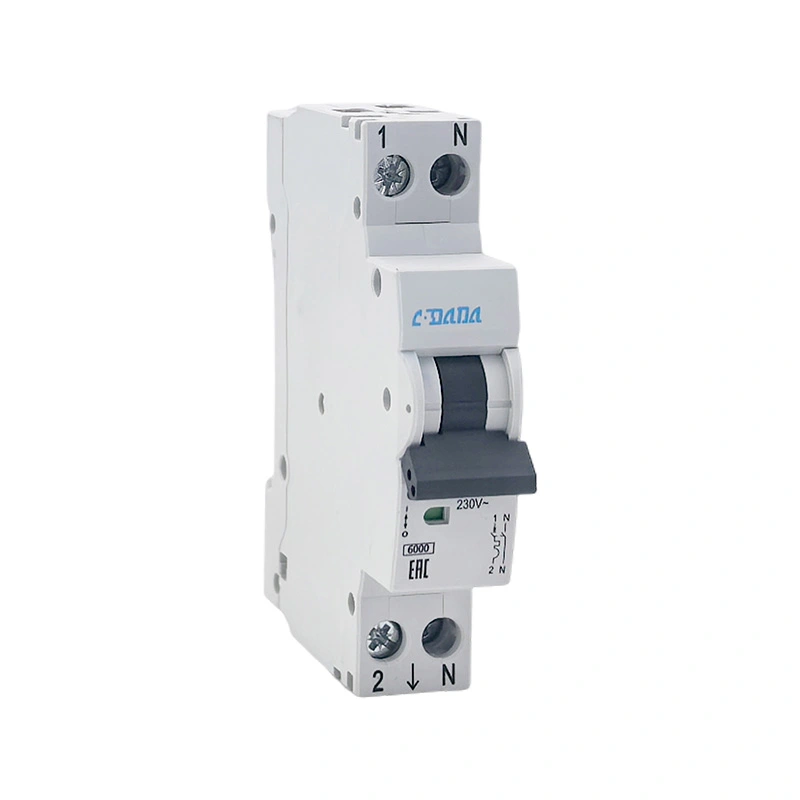

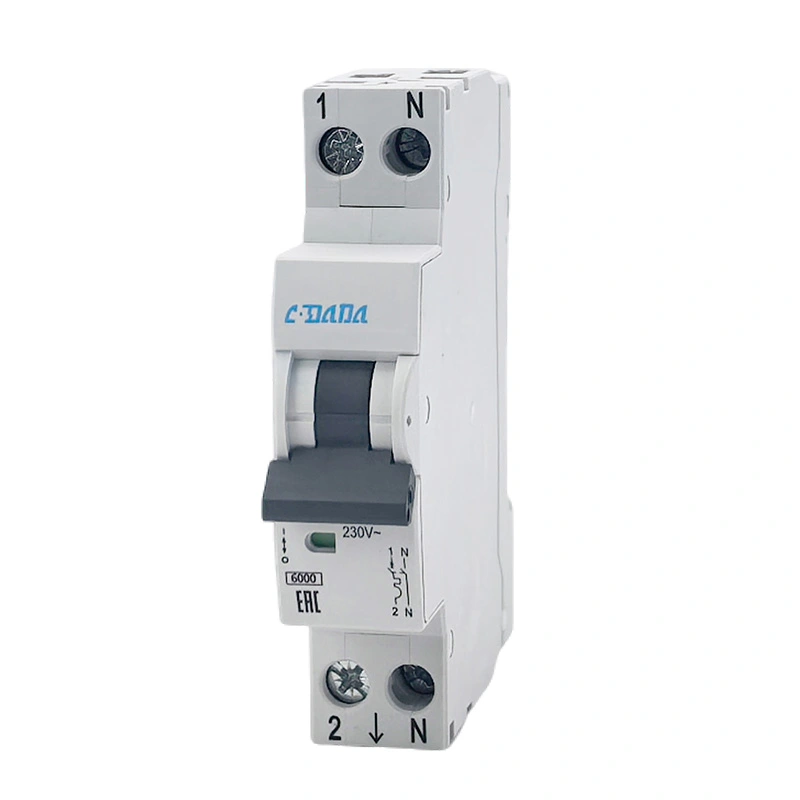

CDADA DAB7N Miniature Circuit Breaker DPN 6KA kwararre ne na 1P + N dual-break miniature breaker da kansa wanda Shanghai DADA Electric ya haɓaka, amintaccen masana'anta tare da gogewar shekaru 40+. Tare da babban ƙarfin 6kA, aiki tare da aiki tare, da N-pole "yi farko, karya daga baya" ƙira, yana inganta haɓaka aikin arc da kyau kuma yana kare kewaye da kayan aiki lafiya. An yi amfani da shi sosai a cikin akwatunan rarraba, kayan ado na gida, ikon kasuwanci, da da'irar haske, shine zaɓi na farko don masu siye na duniya, masu rarrabawa da abokan cinikin OEM.

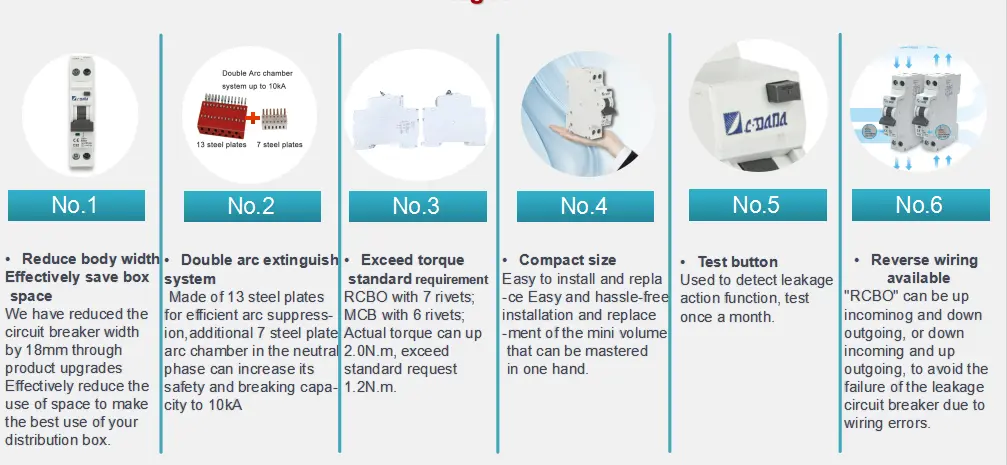

Menene Fa'idodin MCB DPN 6KA?
★ 1P+N DPN tsarin, dual break points, mafi aminci kuma mafi aminci
★ N sandar yana yin farko kuma ya karye daga baya, yana haɓaka iyawar baka
★ 6kA ainihin iya karyawa, kariyar gajeriyar hanya mai ƙarfi
★ Karamin 17.8mm nisa, ceton sarari majalisar
★ B/C tripping curves samuwa ga daban-daban lodi
★ IP20 kariya daraja, mai lafiya taba
★ kewayon waya mai faɗi: 1-25mm² m na USB

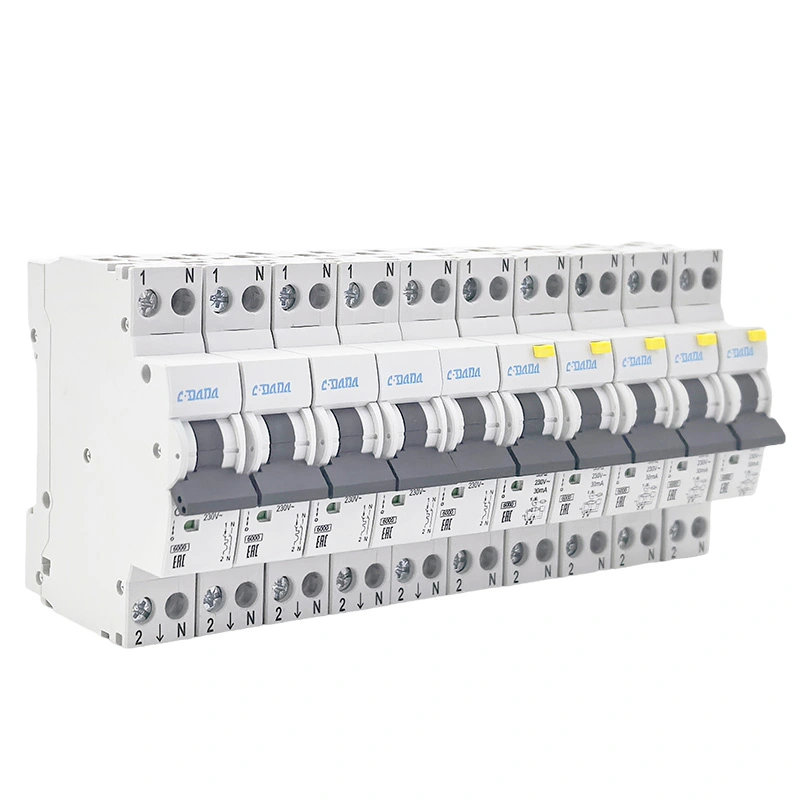

★ DIN dogo hawa, sauri da kuma barga shigarwa
★ High and low zazzabi juriya: -25℃~+50℃
★ Rayuwar injina mai tsayi har sau 20,000
Aikace-aikace
CDADA Miniature Circuit Breaker DPN 6KA ana amfani dashi sosai a:
★ Gine-gine, gidaje, villa, kayan ado na gida
★ ofisoshi, shaguna, otal, makarantu, asibitoci
★ Wutar lantarki, kwasfa na wuta, ƙananan kayan wuta
★ Kayan aiki na gida: na'urar dumama ruwa, na'urorin sanyaya iska, injin wutar lantarki
★ Tsohon kewaye sake ginawa da kuma rarraba akwatin haɓakawa
★ Commercial da na farar hula low-voltage wutar lantarki rarraba tsarin
Teburin Ma'auni na Fasaha
| Abu | Ƙayyadaddun bayanai |
| Samfura | DAB7N-40 |
| Sunan samfur | MCB DPN 6KA |
| Daidaitawa | Saukewa: IEC60898-1 |
| Sandunansu | 1P+N (2P) |
| Karya Ƙarfi | 6k ku |
| An ƙididdigewa a halin yanzu | 6A,16A,20A,25A,32A,40A |
| Ƙimar Wutar Lantarki | AC 220/230/240V |
| Yawanci | 50/60Hz |
| Lanƙwasa Tafiya | B/C |
| Insulation Voltage | 500V |
| Ƙarfafa ƙarfin lantarki | 4kV ku |
| Digiri na Kariya | IP20 |
| Rayuwar Injiniya | sau 20,000 |
| Rayuwar Lantarki | sau 6,000 |
| Tashar Torque | 1.5 nm |
| Ƙarfin Waya | 1-25mm² |
| Yanayin Aiki | -25 ℃ ~ +50 ℃ |

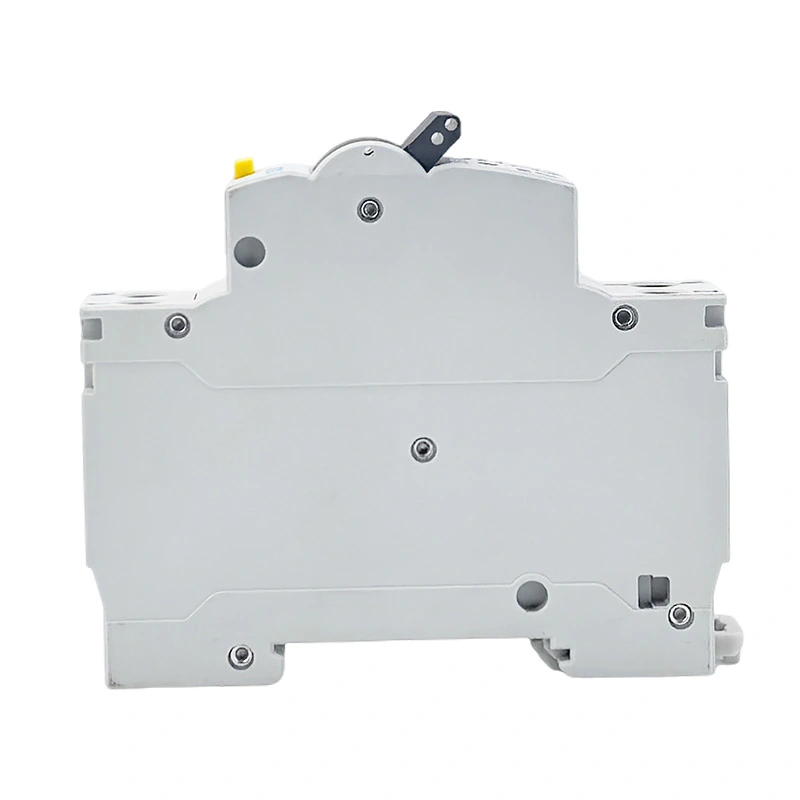

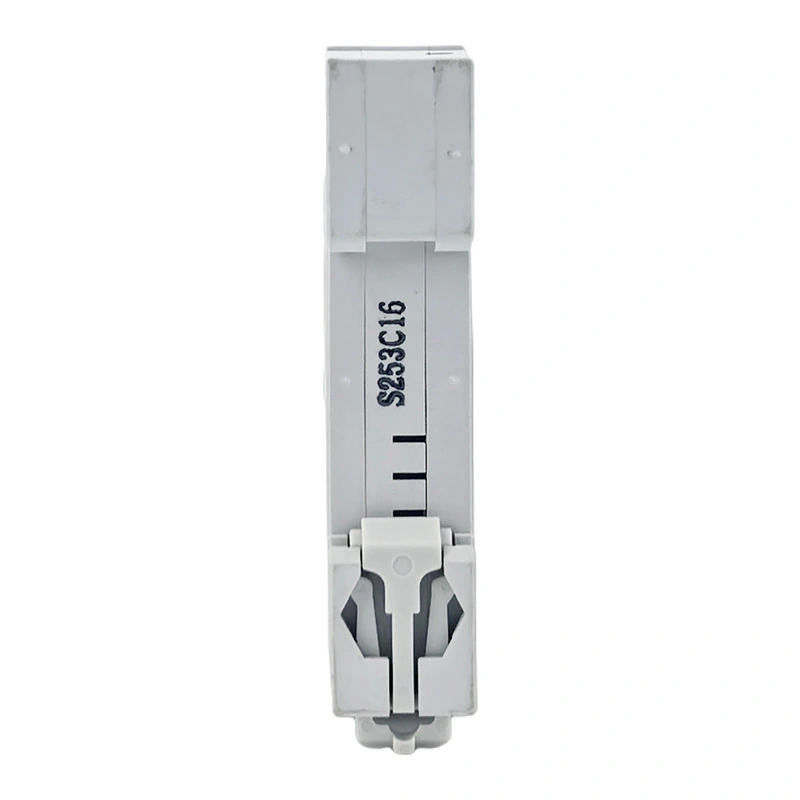

| Girma | 82.5×73.2×17.8mm |
Fahimtar Girman Girma
★ Tsawon: 82.5mm
★ Tsawo: 73.2mm
★ Nisa: 17.8mm (misali nisa 1-module)
★ hawa: 35mm DIN dogo
★ Waya: dace da 1-25mm² m/m na USB
★ Kaurin Busbar: 0.8-2mm
Daidaitaccen Abubuwan Gwaji
★ 1.13A cikin gwajin rashin tafiya (≥1 hour)
★ 1.45A cikin gwaji (<1 hour)
★ 2.55A cikin gwajin aiki mai yawa
Gwajin faɗuwa na Magnetic nan take (3In/5In for B/C curve)
★ Dielectric jure irin ƙarfin lantarki gwajin
★ Gwajin hawan zafi
★ Gwajin iya karyawar gajeriyar hanya (6kA)
★ Gwajin rayuwar injina & lantarki
★ High & low zafin jiki gwajin aiki

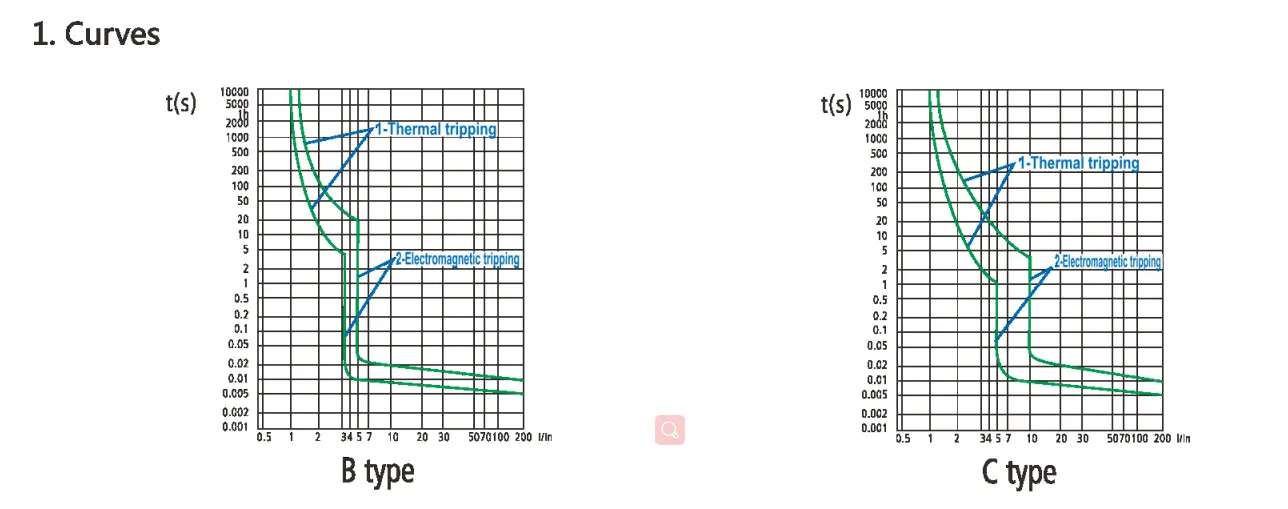

Yankunan Halayen Tattara
Saukewa: IEC 60898-1
Sakin Magnetic
Lokacin da gajeriyar kewayawa ta auku, ana samun faɗuwa nan take ta hanyar maganadisu tare da ainihin ƙarfe. Dangane da ma'aunin IEC60898, ana iya raba wannan samfurin zuwa nau'ikan uku: B, C, da D.
|
|
Gwada halin yanzu | Lokacin tafiya | Aikace-aikace |
| B Curve | 3 l5n |
0.1 |
Nau'in B yana aiki ne kawai ga kayan aiki masu aiki: -Huta wutar lantarki-Water hita-Tashin wutar lantarki |
| C Curve | 5 cikin 10ln |
0.1 |
Nau'in C ya dace da kaya na yau da kullun: -Lamp -Power soket -Ƙananan injin wuta |
Sakin thermal
●Da zarar an yi nauyi a cikin kewayawa, ɗigon bimetallic na na'urar na'urar za ta lanƙwasa saboda zafi, haifar da lambobi don cire haɗin kuma haifar da raguwa na thermal;
●Ma'aunin IEC yana bayyana kewayon lokacin ɓata lokaci don magudanar ruwa daban-daban;
●Mai zafi yanayin gwajin tunani shine 30 °C.
| Gwada halin yanzu | Lokacin tafiya |
| 1.13 ln | t z 1h (a cikin ≦ 63A) |
| 1.45 ln | t <1h (A cikin ≦ 63A) |
| 2.55ln | 1s<1h<60s(In≤32A)1s |

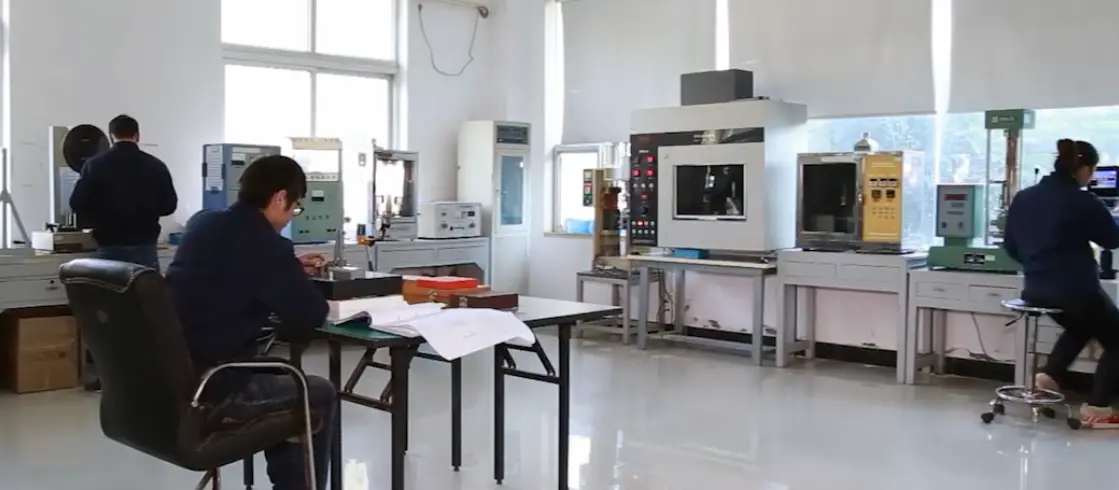

Tsarin Kula da inganci
1. Raw abu mai shigowa dubawa & takaddun shaida
2. Atomatik allura gyare-gyare & daidai karfe stamping
3. Semi-ƙare samfurin taro & calibration
4. 100% cikakken jarrabawar sifa
5. Juriya da ƙarfin lantarki & gwajin aikin rufewa
6. Gwajin tsufa mai girma da ƙarancin zafin jiki
7. Siffar, girma & duba tambari
8. Marufi na ƙarshe & dubawar kaya
Marufi & jigilar kaya
★ Standard fitarwa kartani tare da shockproof rufi
★ Akwatin rukuni na kunshe don gujewa karce
★ Tabbataccen lakabi: samfurin, halin yanzu, sanduna, yawa, takaddun shaida
★ Ya dace da sufurin ruwa, iska da kasa
★ Support OEM marufi, al'ada logo da lakabin
Abubuwan Nasara na Abokin ciniki
CDADA MCB DPN 6KA an fitar dashi zuwa kasashe da yankuna sama da 50:
★ Dogon lokaci mai yawa wadata ga masu rarraba Turai da Asiya
★ Ayyukan gyare-gyaren da'irar gida a Gabas ta Tsakiya & Afirka
★ OEM hadin gwiwa tare da sanannun kasa da kasa lantarki brands
★ Rarraba wutar lantarki yana tallafawa masu haɓaka ƙasa
★ Stable umarni daga lantarki kwangila da tsarin integrators
Me yasa Zabi DADA Electric?
★ 40+ shekaru na gwaninta gwaninta a kewaye mai watse R&D da samarwa
★ 90% core sassa samar a cikin gida, barga ingancin iko
★ ISO9001 bokan, cikakken yarda da kasa da kasa matsayin
★ Cikakkun takaddun shaida: CE, CB, CCC, da sauransu.
★ Babban ƙarfin samarwa, isar da sauri don umarni mai yawa
★ Ƙwararrun goyon bayan fasaha da sabis na tallace-tallace
★ Yarda da OEM & ODM gyare-gyare don biyan buƙatun kasuwa
★ Tsarin dabaru na duniya, lafiya da isarwa akan lokaci
