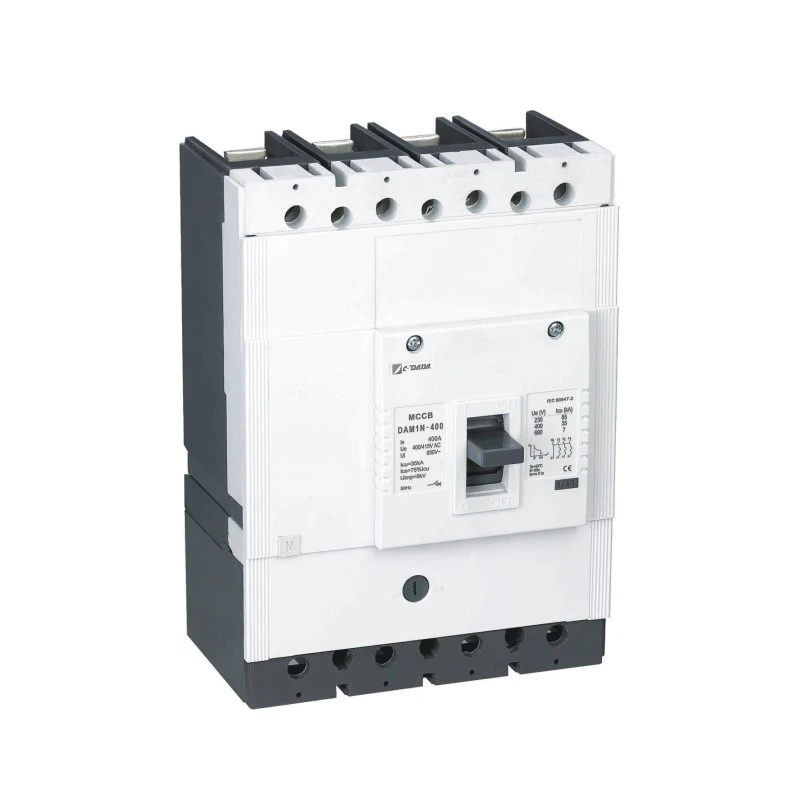

Kafaffen Nau'in Gyaran Case Mai Kashewa

CDADA Kafaffen Nau'in Molded Case Circuit Breaker (MCCB) jerin DAM1 sun cika buƙatun kowane aikace-aikacen, daga ƙananan masu amfani zuwa na'urar canjin masana'antu da shigarwar rarrabawa.

Jerin DAM1 yana da nau'ikan firam guda bakwai, har zuwa 1600A, ƙarfin karya har zuwa 100 kA, ƙarfin aiki har zuwa 1000 Volts, sauƙin saduwa da nau'ikan ingantattun kayan aikin lantarki da na inji, suna ba da nau'ikan hanyoyin shigarwa iri-iri don haɓaka buƙatun kowane tsarin wutar lantarki.

Tare da takaddun shaida na duniya KEMA, ASTA, SEMKO, CB, CE, ROHS; DAM1 shine mafi kyawun zaɓi don tsire-tsire na kayan lantarki na duniya da OEM.

Maɓalli Maɓalli

Siffofin lantarki na DAM1 MCCB molded case breaker

● Icu: O-t-CO gwajin

● Ics: O-t-CO-t-CO gwajin (O: bude maneuver, CO: Kusa-Bude motsi, t: Tsawon lokacin jira)

Matsayin ON/I: Yana nuna cewa an rufe lambobin sadarwa. A cikin wannan matsayi, lever mai karya yana cikin matsayi na sama

★ Matsayin TAFIYA: Yana nuna cewa an buɗe na'urar saboda duk wani gazawa (over load ko short circuit). A wannan yanayin, lever mai karya yana cikin matsayi na tsakiya tsakanin ON da KASHE. Domin ɗaukar mai karya, wanda ke cikin matsayi na tafiya, zuwa ON matsayi; tura lever zuwa ƙasa kamar yadda alamar KASHE ta nuna

Za a saita Breaker tare da sautin "danna". Bayan haka, ja lever kamar yadda aka nuna ta alamar ON don rufe mai karyawa.

★ KASHE/0 Matsayi: Yana nuna cewa lambobin sadarwa a buɗe suke. Ta wannan hanyar, lever mai karya yana cikin matsayi na ƙasa.

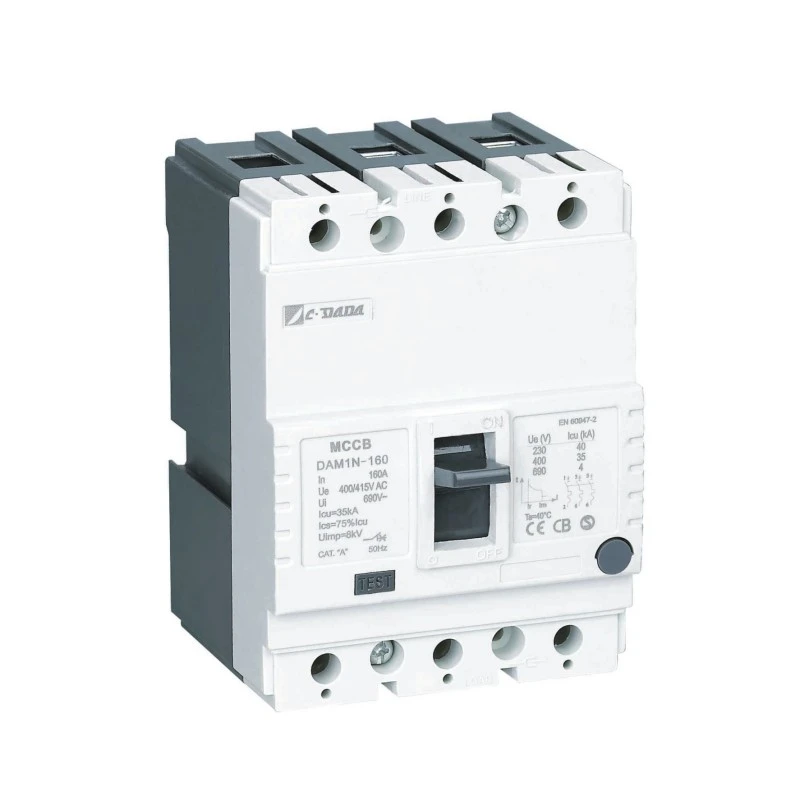

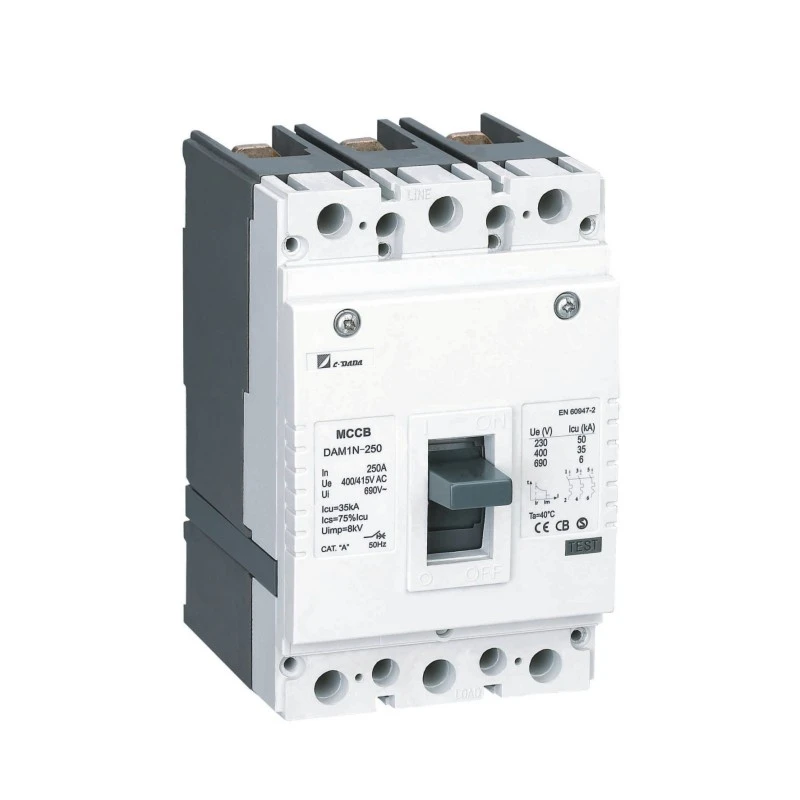

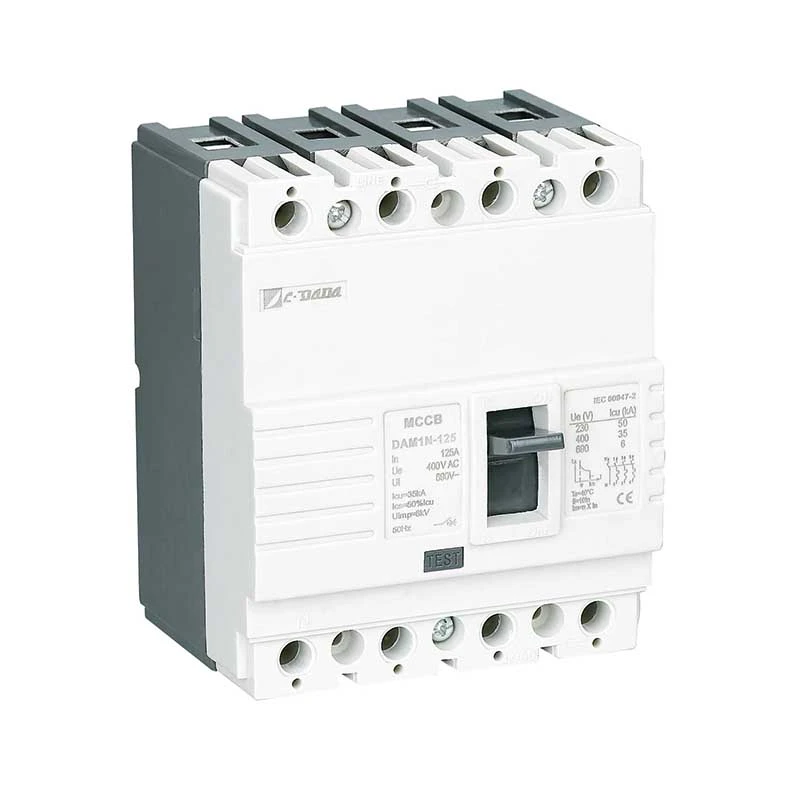

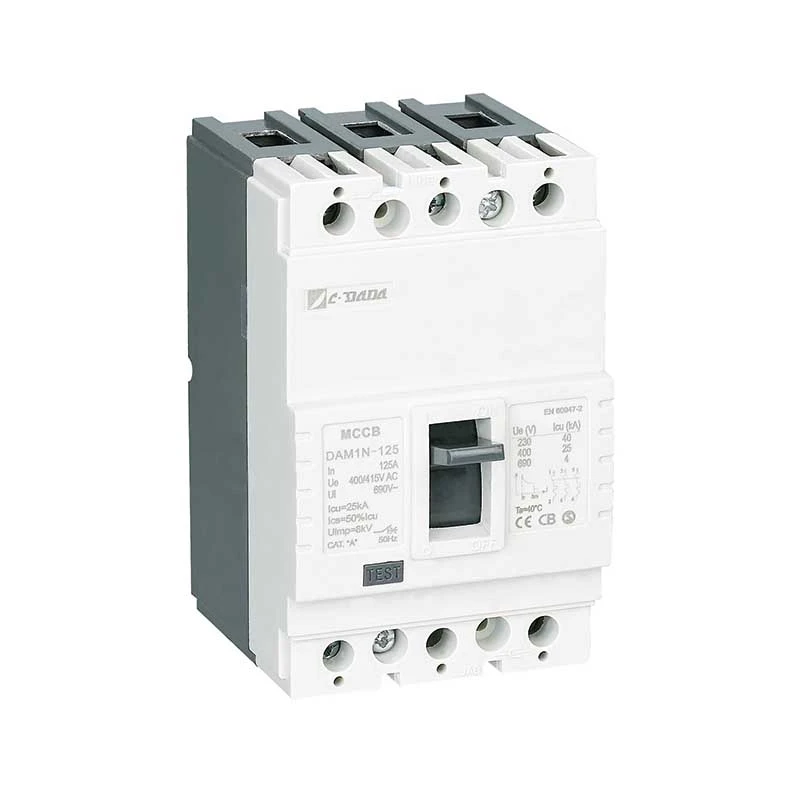

Siffofin jiki na DAM1-125 MCCB gyare-gyaren yanayin da'ira

Ƙa'idar Aiki & Tsarin Kariya

★ Kariyar zafi (Overload)

Ramin bimetallic yana lanƙwasa lokacin zafi ta hanyar juzu'i mai ɗorewa (> ƙimar halin yanzu). Gudun lankwasawa yayi daidai da girman halin yanzu-tabbatar da ɓarkewar lokaci-lokaci wanda ke kwaikwayi halayen zafi na kebul, hana tafiye-tafiyen tashin hankali yayin da ake kare kayan aiki.

★ Kariyar Magnetic (Gajeren kewayawa)

A lokacin gajeren kewayawa (misali, lokaci-zuwa-lokaci ko lokaci-zuwa-ƙasa), babban filin maganadisu na yanzu yana jan solenoid plunger nan take, yana sakin injin latch a cikin milliseconds-yanke matsalar halin yanzu kafin lalacewar thermal ta faru.

Amfanin samfur

★ Jiki da Rufe:

An yi amfani da resin fiber-glass polyester azaman jiki da kayan rufewa daidai da ma'aunin EN 60512-20-2. Wannan abu, wanda ake kira BMC (Bulk Molding Compound) a cikin wallafe-wallafen, an fi son shi ne saboda manyan ƙimar lantarki da na inji kuma yana iya tsayayya da zafin jiki na 160 ℃ ci gaba. BMC abu ba ya ƙone lokacin da ake hulɗa da waya a zazzabi na 960 ℃ daidai da IEC 695-2-1

Bimetal: Bimetal wani abu ne wanda ya ƙunshi haɗaɗɗun farantin karfe biyu tare da ma'aunin haɓaka daban-daban akan zafi. Abin da ke wucewa ta cikin na'ura na yanzu yana dumama bimetal. Sakamakon tasirin wannan zafi. bimetal ya lanƙwasa zuwa ga farantin da ba ya da ƙasa. Tun da zafi yana ƙaruwa yayin da halin yanzu ke wucewa ta cikin mai fashewa yana ƙaruwa, bimetal yana ƙara zafi kuma yana ƙara lanƙwasa. Ta wannan hanyar, yana sarrafa tsarin buɗewa don buɗe mai karyawa.

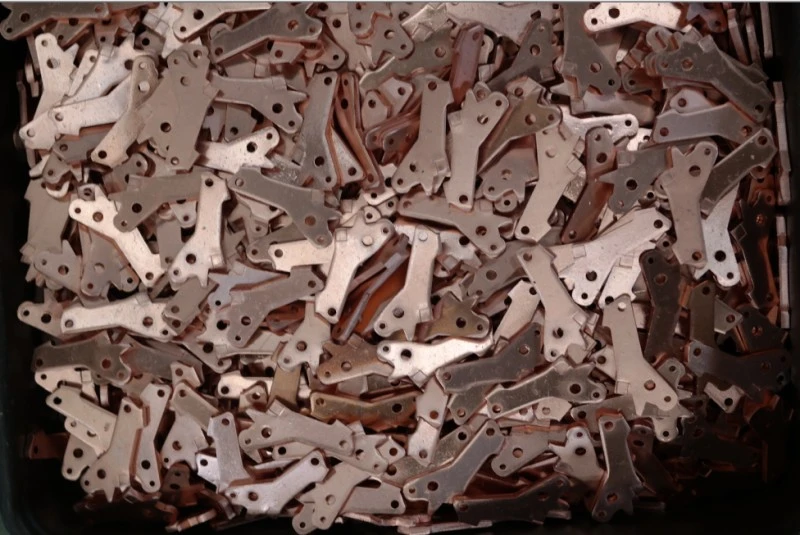

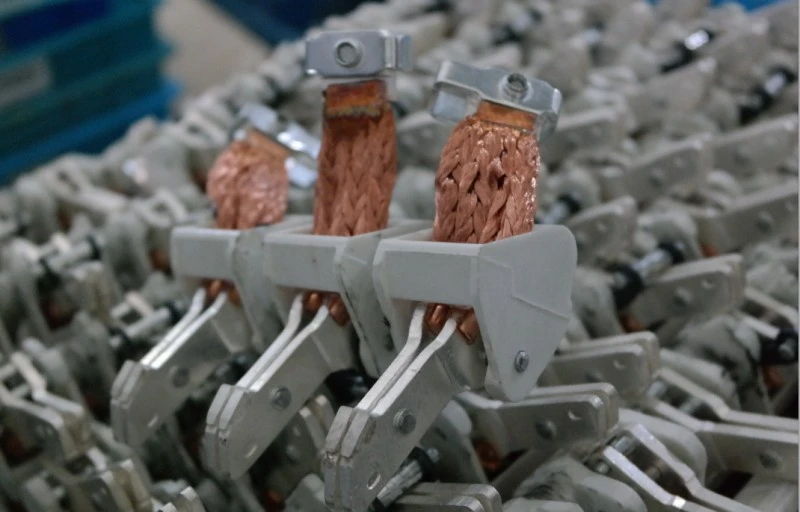

★ Lambobin sadarwa:

Ana ƙaddamar da haɗin haɗi don masu fashewa ta hanyar la'akari da fashe da ɗaukar dabi'u na yanzu da ginawa Yawancin azurfa, graphite, nickel, wolfram alloy lambobin sadarwa ana amfani da su a cikin masu fashewa Lambobin sadarwa, waɗanda aka yi da azurfa-graphite gami da tsarin santsi, ana amfani da su a cikin ƙayyadaddun (ƙasa) lambobin sadarwa, lambobin wolfram na azurfa, waɗanda suke da wahala, ana amfani da su a cikin lambobi masu motsi (saman). An tabbatar da tsarin swaged a cikin lambobi masu motsi. Ta wannan hanyar, swaged da hard gami lambobin sadarwa suna da wuri a kan taushi kafaffun lambobi a kowace bude-rufe.

Ta wannan hanyar, ana tabbatar da mafi ƙarancin juriya. Matsar da lamba ya kamata ya taɓa madaidaicin lamba sosai don samun ƙarancin juriya. Koyaya, ƙarfin matsin lamba da yawa yana haifar da lalacewar lambobi a cikin ɗan gajeren lokaci fiye da na al'ada. Alamomin tuntuɓa suna da matukar mahimmanci don buɗewa lafiya.

★ Arc Extinguisher Cell (Separator):

Ana amfani da masu rarrabawa don kawar da baka wanda aka kafa yayin aiki na mai karya aiki a ƙarƙashin makamashi. Yayin da aka raba lambar sadarwa mai motsi daga kafaffen lamba, halin yanzu yana ci gaba da gudana tsakanin lambobin sadarwa na ɗan lokaci kuma ana kiran wannan arc. Wannan baka ya kamata ya ɓace cikin ɗan ƙanƙanin lokaci.

★ Bacewar Arc:

Ana tura Arc zuwa masu raba saboda filin maganadisu da aka kafa a kusa da baka. Ta wannan hanyar, arc yana faɗaɗa kuma ya zama siriri kuma ya karye tsakanin faranti mai raba (Hoto-5). Saboda halayen kayan da aka yi amfani da su a kan bangon gefe na masu rarraba, gas yana fitowa saboda yawan zafin jiki da ke haifar da arc. Wannan gas yana da tasiri mai mahimmanci akan bacewar baka.

Aikace-aikace

CDADA DAM1 Kafaffen Nau'in Molded Case Circuit Breaker (MCCB) an amince dashi a cikin mahimman abubuwan more rayuwa:

★ Masana'antu: Masana'antar karfe, dandamalin mai & iskar gas, tsire-tsire masu sinadarai

★ Kiwon Lafiya: Babban Asibiti & allon rarrabawa

★ Sufuri: Siginar layin dogo, tsarin jigilar kaya na filin jirgin sama

★ Commercial: Skyscrapers, data cibiyoyin, shopping malls, Convention cibiyoyin

★ Wuraren Jama'a: Gidan wasan kwaikwayo, filin wasa, gine-ginen gwamnati

Shigarwa & Amfanin Kulawa

★ Sauƙin Haɗin Kai:

Daidaitaccen kit ɗin ya haɗa da sandunan bas, shingen lokaci, da kayan masarufi

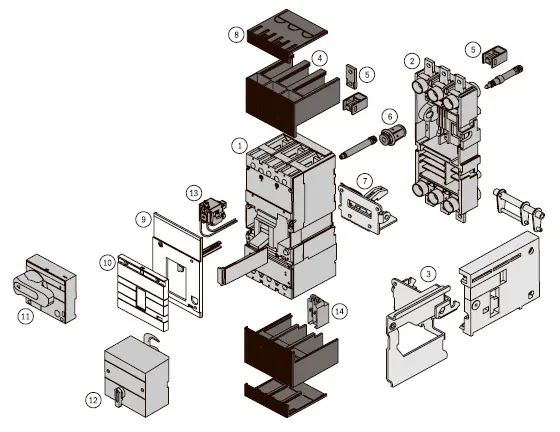

Na'urorin haɗi na zaɓi: lambobin ƙararrawa, ƙaddamarwar shunt/ƙarar ƙarfi, hanyoyin aiki na lantarki

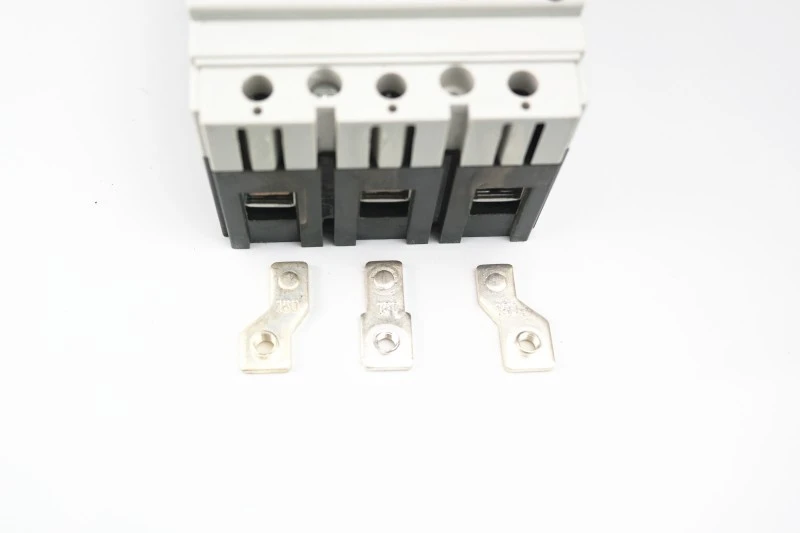

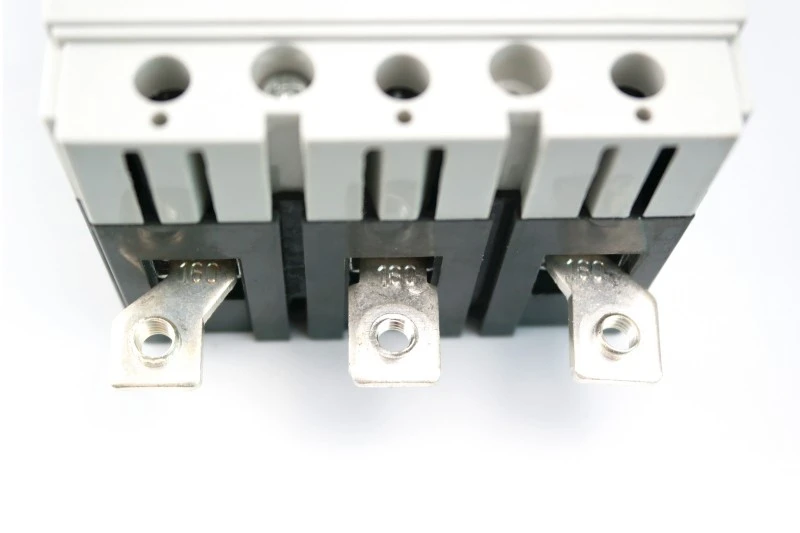

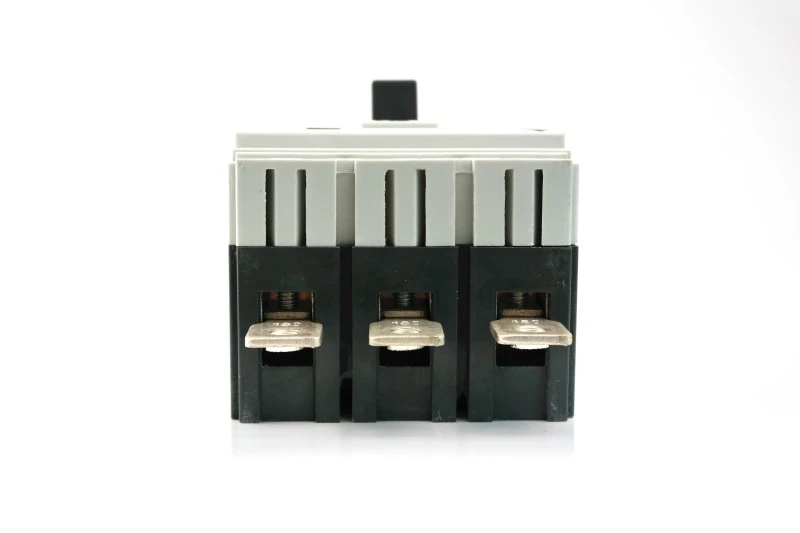

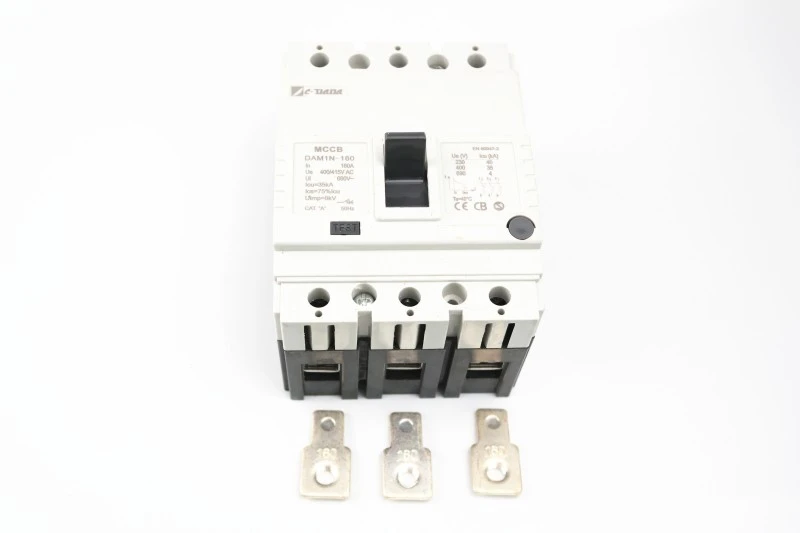

1) Haɗa ta hanyar bas ɗin mai tsawo (hoto 1)

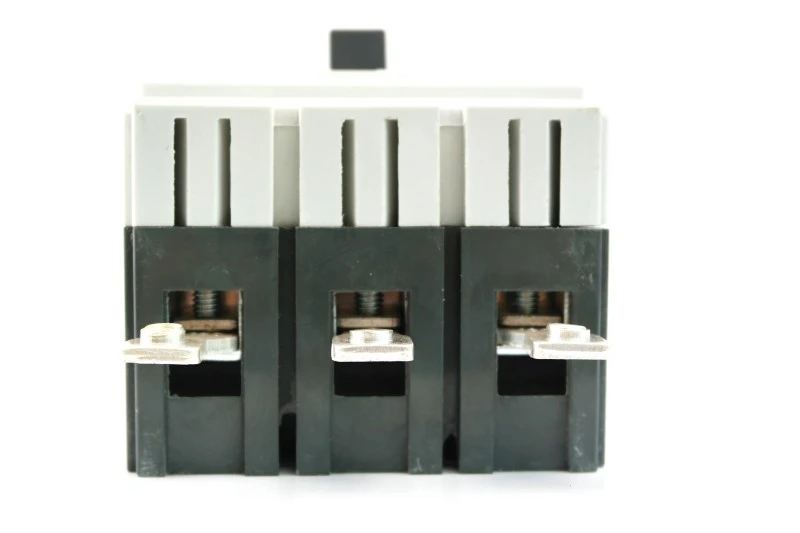

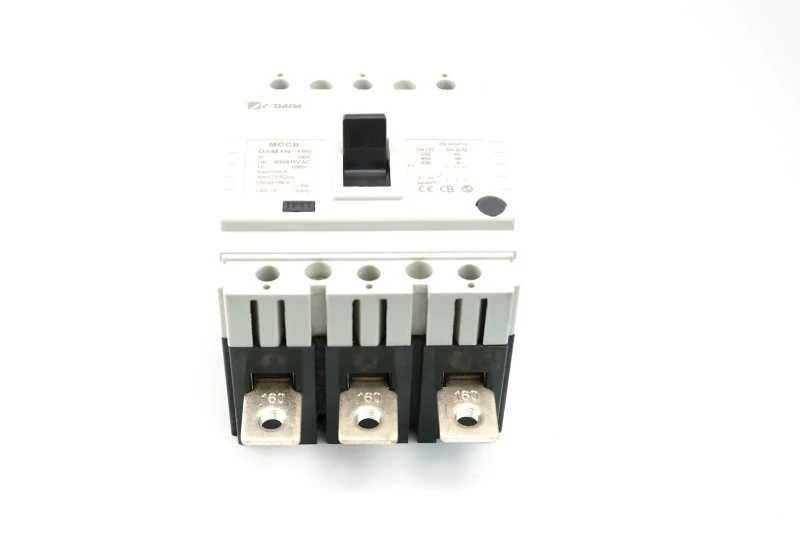

2) Haɗa ta tashar mai shimfidawa (hoto 2)

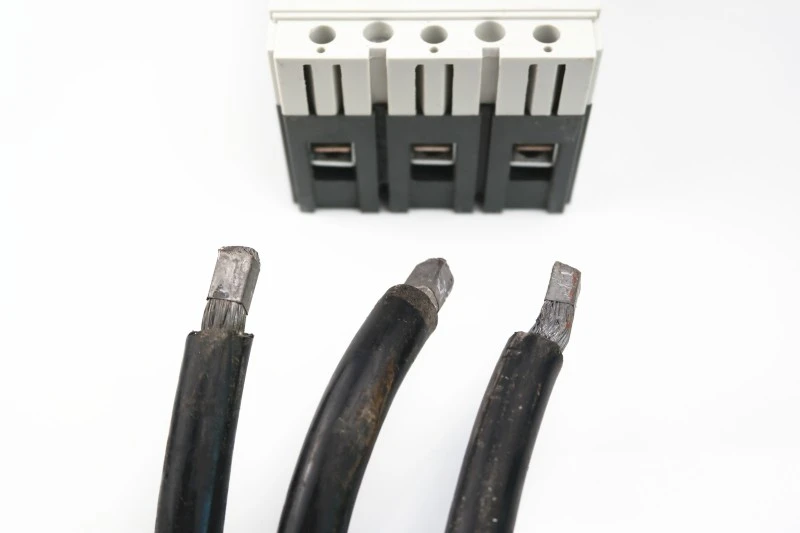

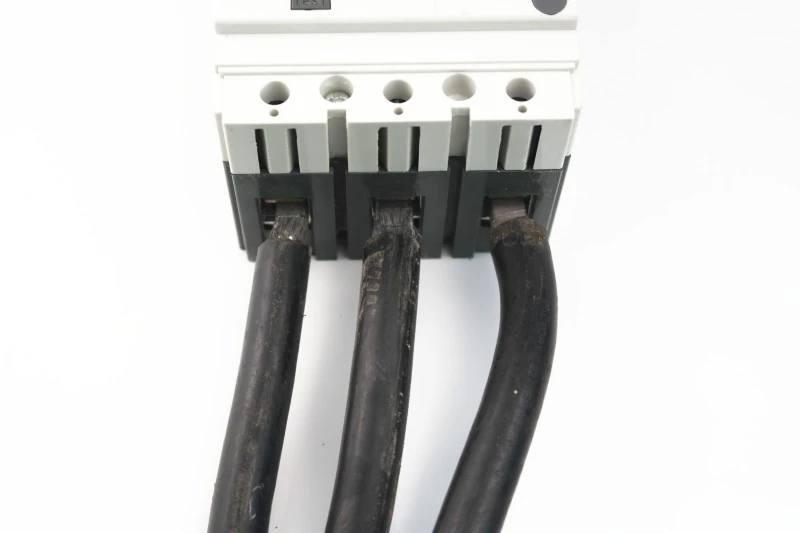

3) Haɗa kebul kai tsaye (hoto 3) ba tare da amfani da igiyoyin igiya ba.

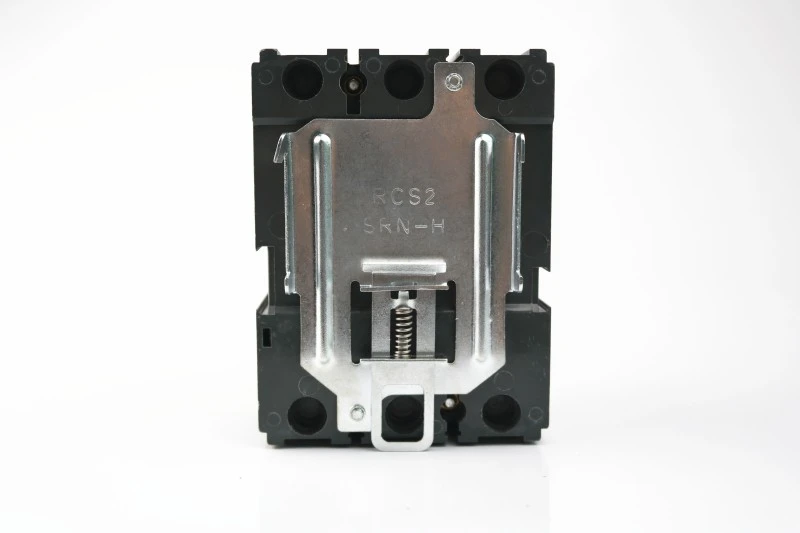

Tare da taimakon matsi na musamman 125 da 160 raka'a za a iya shigar a kan DIN-dogo.

Mai karyawa tare da manne

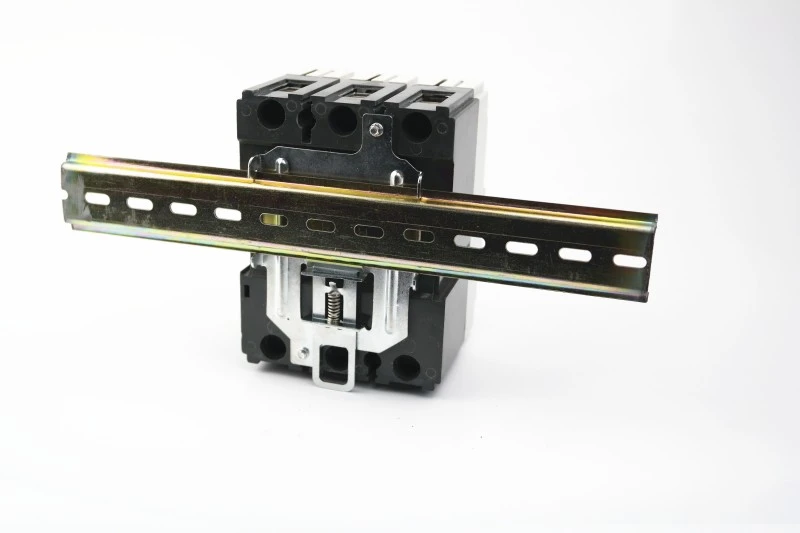

manne tare da DIN dogo

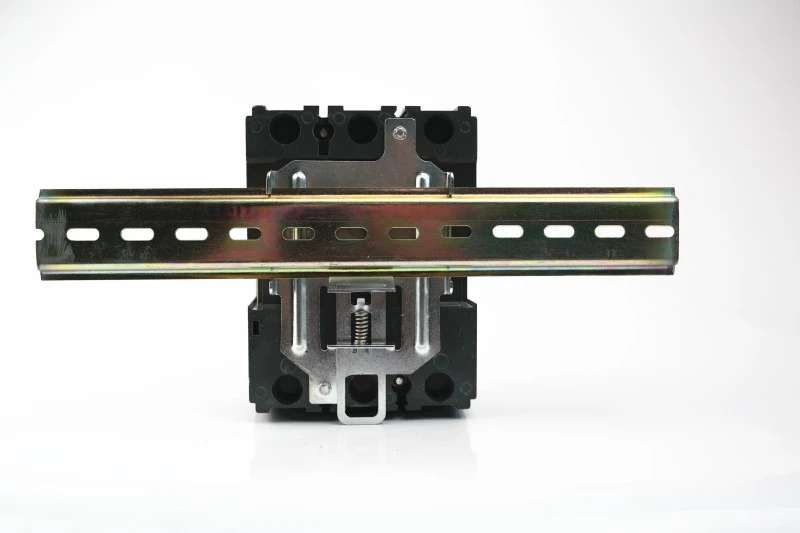

manne tare da DIN dogo

★ Zane-zane na Ajiye sararin samaniya:

10-20% mai sauƙi kuma mafi ƙanƙanta fiye da madadin gida

Yana ba da damar ƙarami masu girma dabam → ƙananan kayan & farashin jigilar kaya

★ Sake saitin Abokin Amfani:

Bayyanar alamar TAFIYA yana hana rufewar makaho

“danna” mai ji yana tabbatar da aikin injin da ya dace

★ Shirye-shiryen Gaba:

Yana goyan bayan plug-in da kayan cirewa (don zaɓin ƙira)

Mai jituwa tare da ƙara-kan saka idanu mai wayo

Me yasa zabar CDADA?

1. Mu ne manyan masana'anta don shekaru 42+. Kamfaninmu wanda aka kafa a cikin 1983, yana haɓaka cikin sauri yayin shekaru 40.

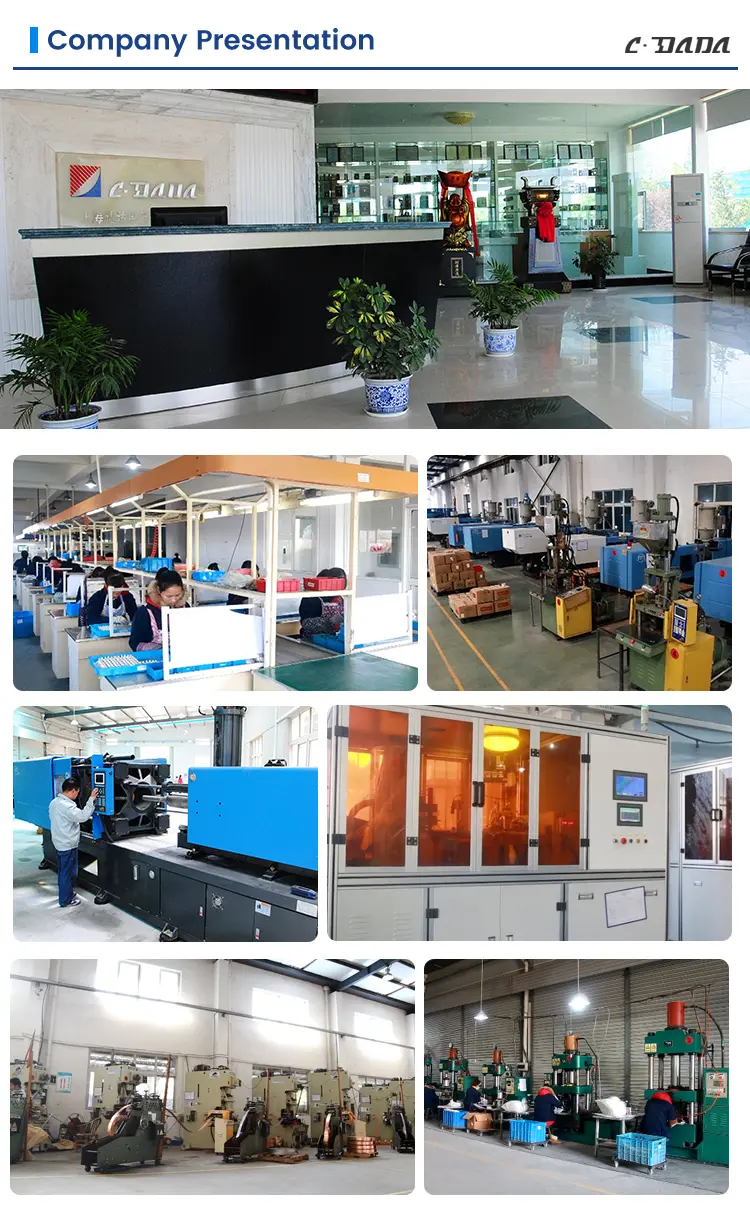

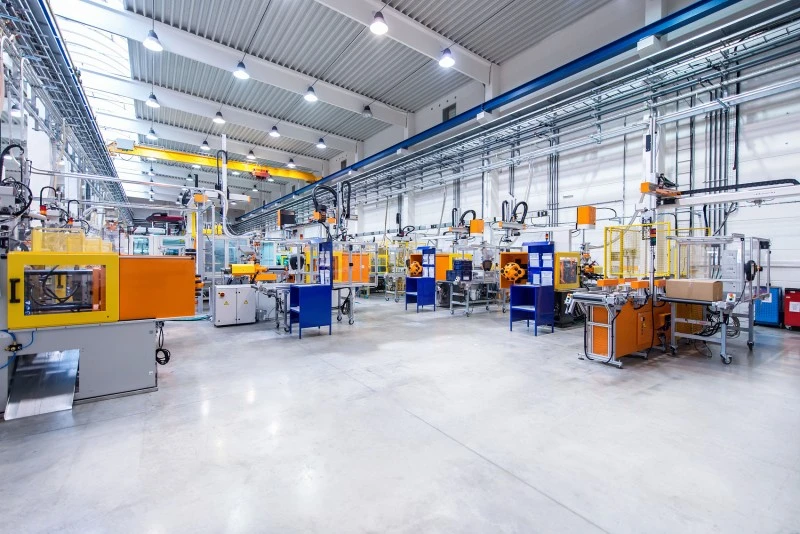

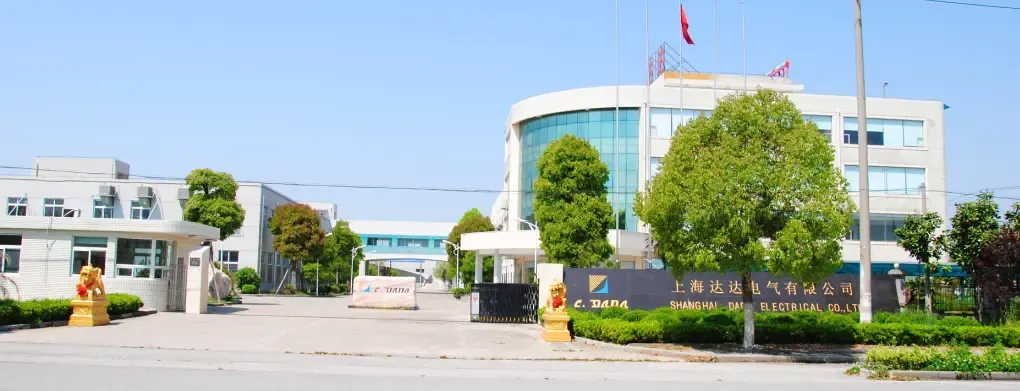

2. Rukunin, wanda ya ƙunshi masana'antu 3, ya mallaki yanki mai girman 52,400m² kuma yana ɗaukar ma'aikata sama da 500. Mun kashe kusan yuan miliyan goma don fadada ayyukanmu da inganta tarurrukan bita.

3. Masana'antar ta INTERTEK, DEKRA & GMC suka tantance

4. Akwatin katako mai ƙarfi, kariyar pallet, mai kyau don jigilar fitarwa na nesa

Tambayoyin da ake yawan yi (FAQ)

Q1: Shin za'a iya ɗorawa DAM1 Kafaffen Nau'in Case Mai Kafaffen Sashin Wuta a kan dogo na DIN?

A1: Ee-samfuran 125A da 160A ana iya shigar dasu akan dogo na DIN ta amfani da matsi na musamman na zaɓi. An ɗora manyan ƙididdiga masu girma kawai.

Q2: Wadanne takaddun shaida ne jerin DAM1 ke riƙe?

A2: An ba da izini tare da CE, CB, ASTA, KEMA, SEMKO, da RoHS, yana tabbatar da yarda a EU, Gabas ta Tsakiya, Kudu maso Gabashin Asiya, da ƙari.

Q3: Ta yaya zan sake saita mai karya bayan tafiya?

A3: Da farko, matsar da lever gaba ɗaya zuwa KASHE (za ku ji dannawa), sannan ja shi zuwa ON. Kar a taɓa tilasta shi kai tsaye daga TAFIYA zuwa ON.

Q4: Shin kayan aikin taimako sun dace?

A4: Ee—lambobin ƙararrawa, lambobi masu taimako, sakin shunt/ƙarar ƙarfin lantarki, da masu aikin lantarki ana iya ƙarawa ba tare da tarwatsawa ba.

Q5: Shin DAM1 ya dace da maye gurbin tsofaffin masu karyawa?

A5: Lallai. Karamin sawun sa yana ba da damar maye gurbin MCCBs na gado kai tsaye a cikin mafi yawan bangarori - adana lokaci da haɓaka farashi.
