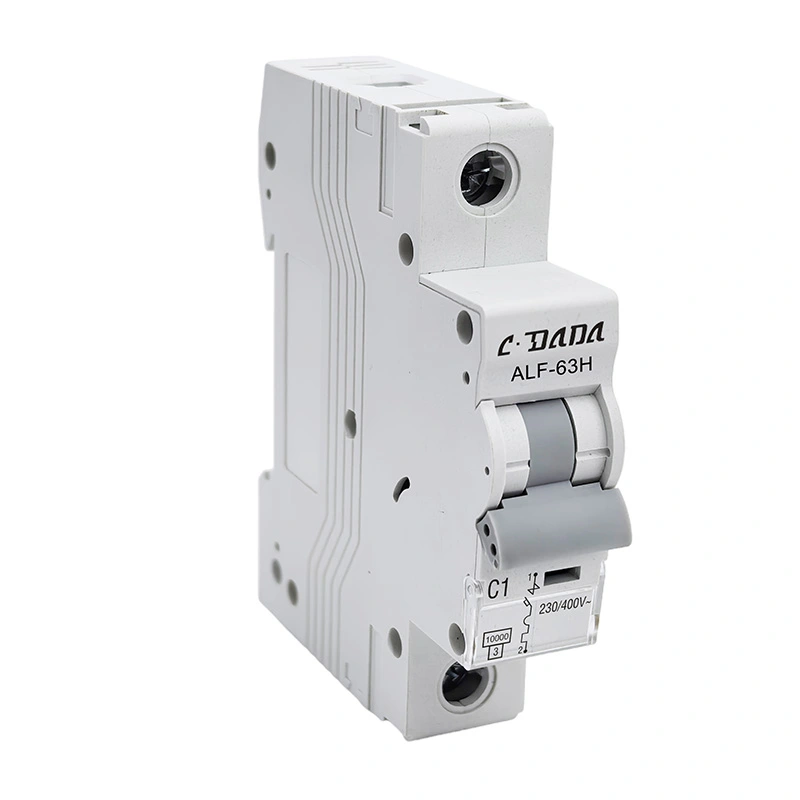

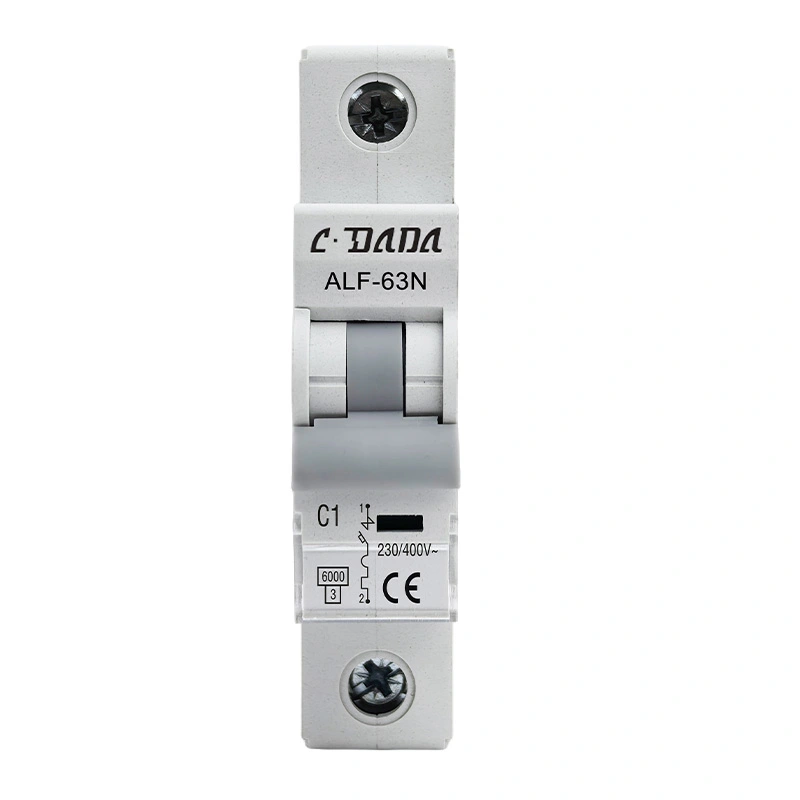

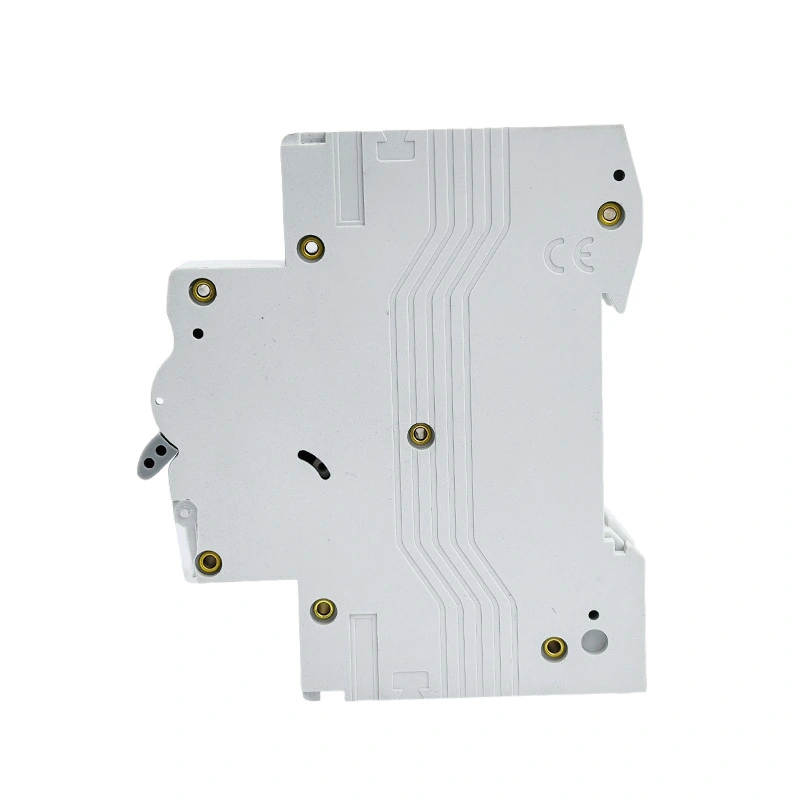

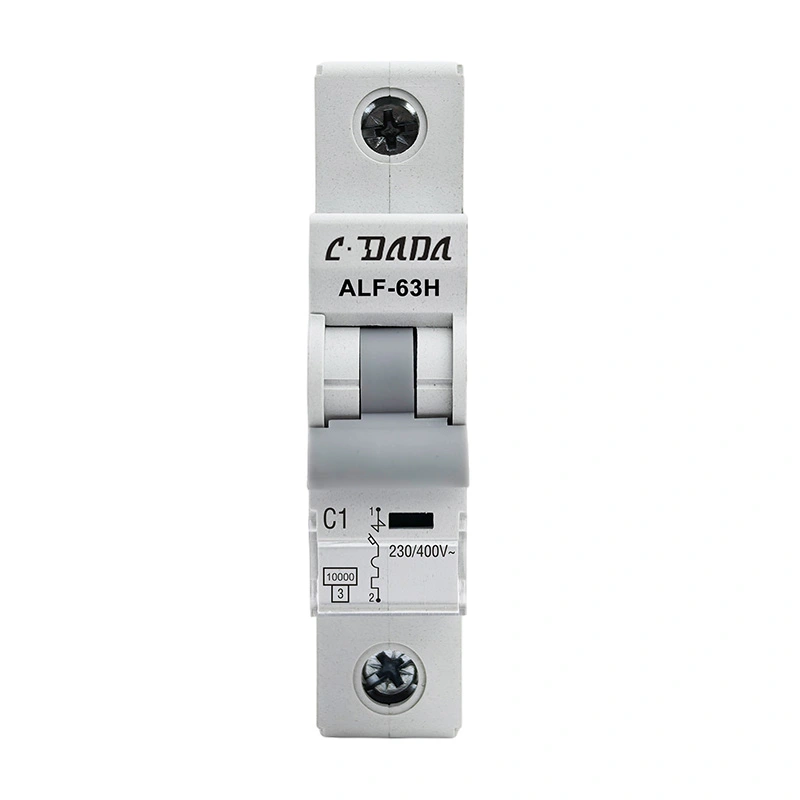

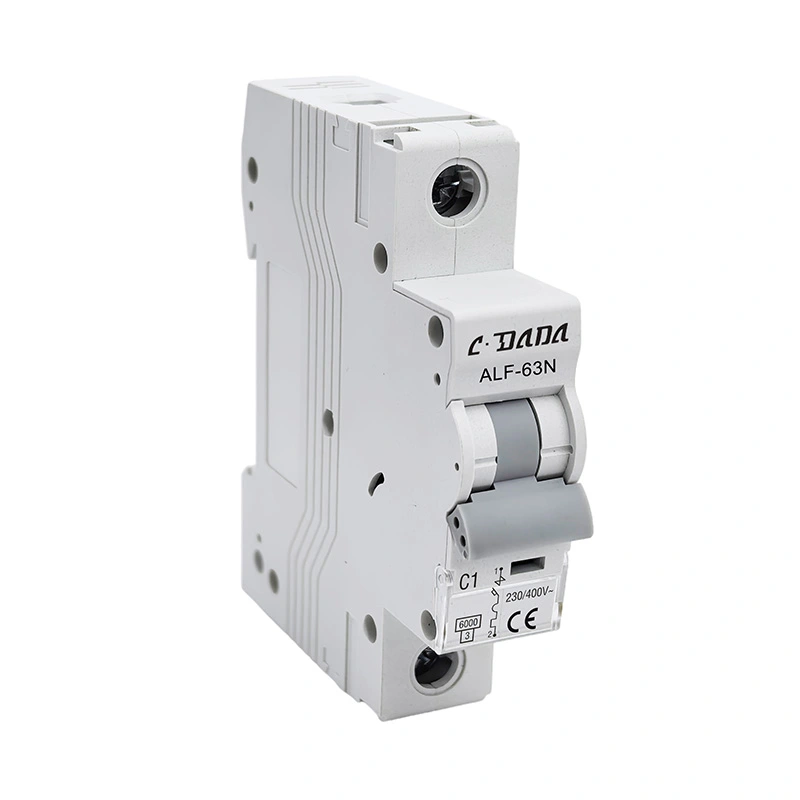

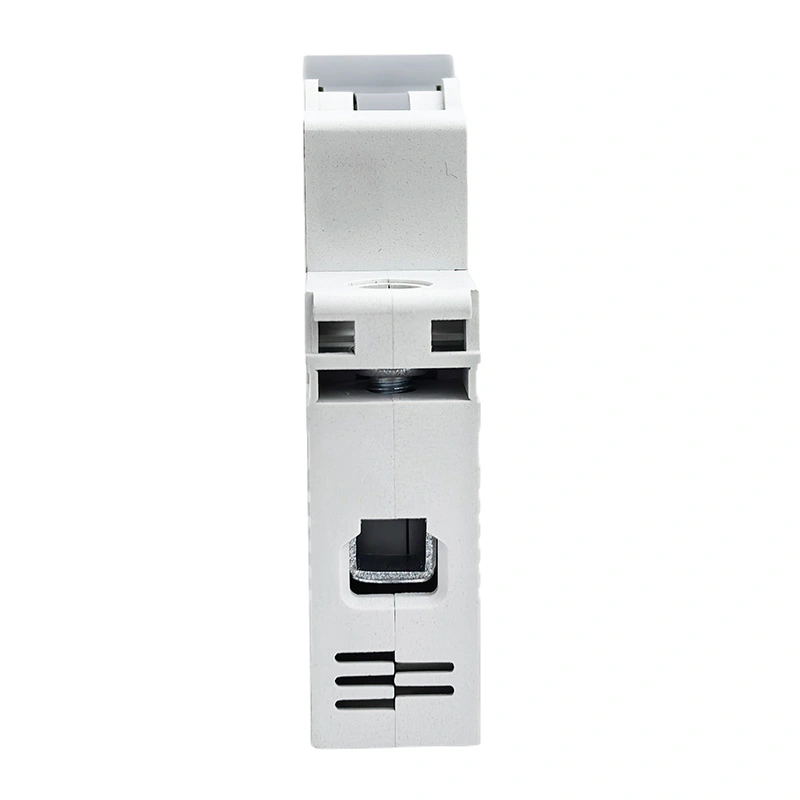

6KA 10kA Karamin Mai Rarraba Wuta

ALF-63N / H jerin high karya 6KA 10kA Miniature Circuit Breaker (MCB), daidai da IEC60898 misali, MCB yana da halayyar abin dogara yi, daidai m aikin, short saki lokaci, da high break iya aiki, kananan girma da. Ana amfani dashi ko'ina a ciki da kuma wuce gona da iri na contactors, switchgear, da na'urorin lantarki.

Tuntuɓi CDADA kuma zaɓi mu a matsayin masana'anta, za mu iya ba da sabis na OEM/ODM.

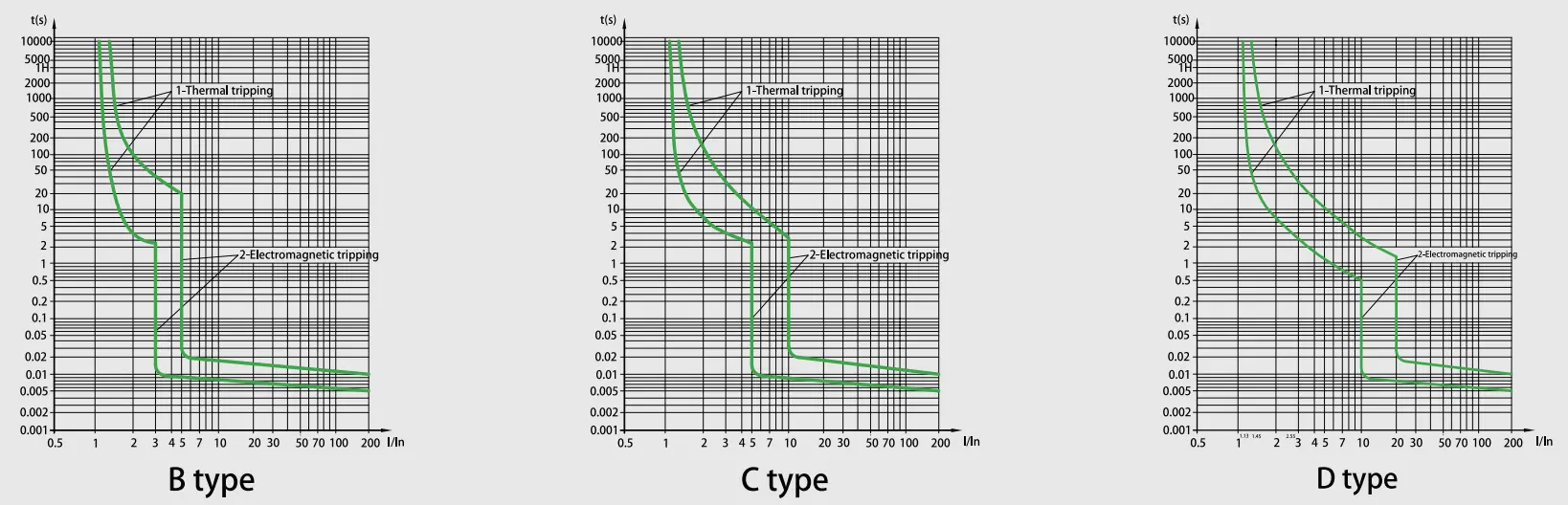

Lanƙwasa Halaye

Ƙayyadaddun Fasaha

ALF-63N/H Series 6KA 10kA Miniature Breaker
Daidaitawa	Saukewa: EN/IEC60898-1
Karya iya (kA)	6,10
Kariya	Against overload da gajeren kewaye
Ƙididdigar halin yanzu (A) In	1,2,3,4,6,10,13,16,20,25,32,40,50,63
Ƙarfin wutar lantarki (V)	1PAC 230/400,240/415
	1P+N,2P,3P,3P+N,4PAC400/415
Ƙimar ƙwaƙƙwarar ƙarfin ƙarfin jurewar wutar lantarki Uimp(kV)	4
Ƙimar wutar lantarki mai rufi Ui(V)	500
Cass mai iyakance makamashi	3
Yanayin yanayi (℃)	-25~+40,Max.95% danshi
Iyakar aiki na thermal	1.13xln Babu tatsewa cikin sa'a guda
	1.45xA Tafiya cikin awa ɗaya
Magnertic aiki	B: (3-5) xIn, C: (5-10) xIn, D: (10-20) xIn
Adadin sanduna	1P,1P+N,2P,3P,3P+N da 4P
Nau'in tafiya	Thermal / Magnetic saki
Iyawar tasha	16mm² sassauƙa ko 25mm² m har zuwa ƙimar 25A
	25mm² mai sassauƙa ko 35mm² m daga ƙimar 32A zuwa 63A
Digiri na kariya	IP20
Shigarwa	Hauwa akan DIN dogo 35mm
Nisa	17.8mm a kowace sanda

Siffar sakin mai watsewar kewayawa

A'A.	Ƙididdigar halin yanzu na fitarwa (A)	Jiha ta farko	Gwada halin yanzu	Ƙayyadadden lokaci	Sakamakon da za a samu	Jawabi
1	1-63	yanayin sanyi	1.13 In	t 1h	Ba tafiya ba
2	1-63	akan jarabawar da ta gabata	1.45 ln	t<1h	tafiya	Saita halin yanzu zuwa ƙayyadaddun ƙima a hankali a cikin 5s
3	A cikin ≤32	yanayin sanyi	2.55 in	1s	tafiya
	A cikin> 32
4	1-63	yanayin sanyi	3 In	t 0.1s	Ba tafiya ba	nau'in B
			5 In	t<0.1s	tafiya	nau'in B
			5 cikin 10ln	t 0.1s	Ba tafiya ba	nau'in C
			10 In	t<0.1s	tafiya	nau'in C
			20 ln	t 0.1s	Ba tafiya ba	D irin
				t<0.1s	tafiya	D irin

Jimiri(Ayyuka)

Kashi	Zagayowar Aiki	Mitar aiki	Ƙididdigar halin yanzu
Juriya na lantarki	4000	240/h	1-32
		120/h	40-63
Juriya na injina	10000	240/h	1-63

Siffofin

★ Ƙarfafa Ƙarfafa Ƙarfafa Ƙarfafa Ƙarfafawa

Fasahar sarrafa baka ta ci gaba tana samun mafi girman ƙarfin katsewa idan aka kwatanta da ka'idodin masana'antu, tabbatar da ingantaccen kariya ga tsarin lantarki na masana'antu a ƙarƙashin matsanancin yanayi mara kyau.

★ Interface Haɗin Yanayin Dual-Mode

Haɗe-haɗen ƙirar tashoshi mai haɗaɗɗiya yana tallafawa duka ƙaƙƙarfan tashar bas ɗin bus ɗin da sassauƙan igiyar kebul, ba da damar daidaitawa mara amfani da kayan aiki zuwa yanayin shigarwa daban-daban yayin rage lokacin wayoyi da kashi 40%.

★ Injinan Adana Makamashi don Tsawon Rayuwa

Tsarin aiki mai taimakon bazara tare da juriya na injina guda 10,000, yana nuna fasahar ramawa

★ Babban Rukunin Rukunin Rubuce-rubuce

tare da shahara-retarcant, zafi-jure, da yunƙurin-hujja kaddarorin hadedde baka-quenching dakunan domin ƙunshe da laifuffuka.

★ Ɗaukar Halitta na Yanzu-Yanzu

Hannun bari-ta hanyar hana kuzari yana rage kololuwar kuskure da kashi 65-80%, yana ba da damar haɓaka ƙayyadaddun na'urar tare da yuwuwar rage ƙimar tsarin gabaɗaya 30%.

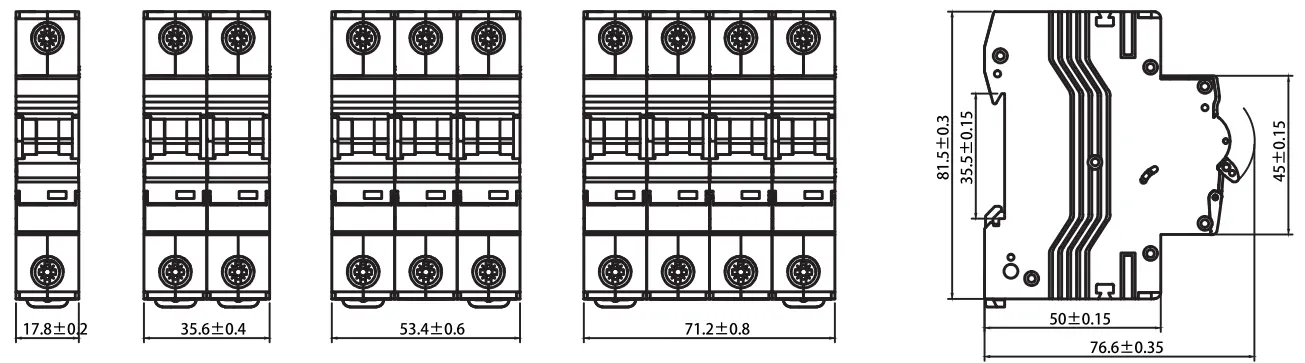

Fahimtar girma

Yanayin aikace-aikace

★ Gidan zama: Raka'a masu amfani da allon rarraba don amincin gida.

★ Masana'antu: Kariya na contactors, switchgear, da nauyi lantarki na'urar.

★ Kasuwanci: Gine-ginen ofis da manyan kantunan sayayya da ke buƙatar ingantaccen aminci.

Kula da Inganci & Gwajin Gwaji

Kowane CDADA MCB yana fuskantar gwaji mai tsauri don tabbatar da yarda da IEC60898-1:

Gwajin Tafiya mai zafi: Tabbatarwa a 1.13In (ba tafiya ba) da 1.45In (tafiya cikin awa 1).

Gwajin Tripping Magnetic: Madaidaicin gwajin fitarwa don halayen B, C, da D.

★ Juriya na Wutar Lantarki: An gwada don zagayowar aiki 4,000.

★ Juriya na Injini: An tabbatar da hawan keke 10,000.

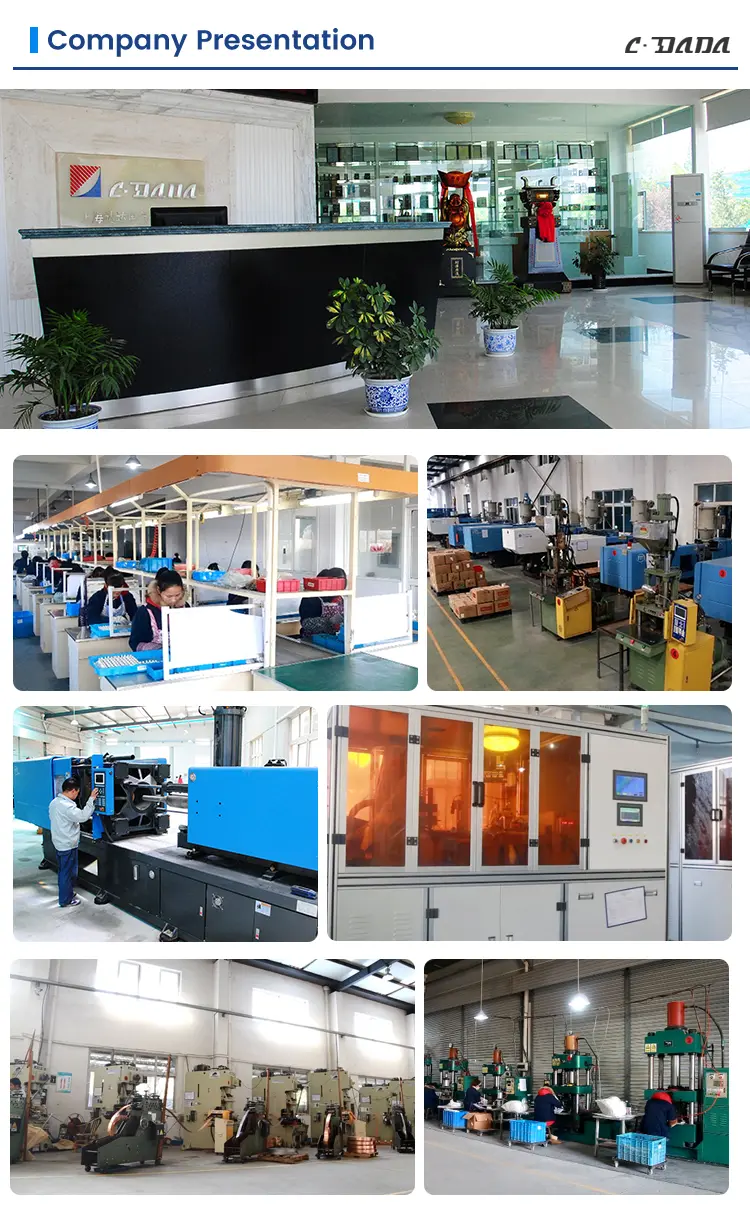

Ƙarfin Factory & Tallafi

Shanghai DADA Electric Co., Ltd. shine babban masana'anta tare da layukan samar da ci gaba da ƙungiyar ƙwararrun injiniya. Mun bayar:

★ Musamman OEM/ODM sabis na duniya brands.

★ Na'urorin gwaji na zamani don tabbatar da isar da sifili.

★ Global Logistics Support: Gyaran marufi don teku da sufurin jiragen ruwa don tabbatar da kayayyakin isa a cikakken yanayin.
