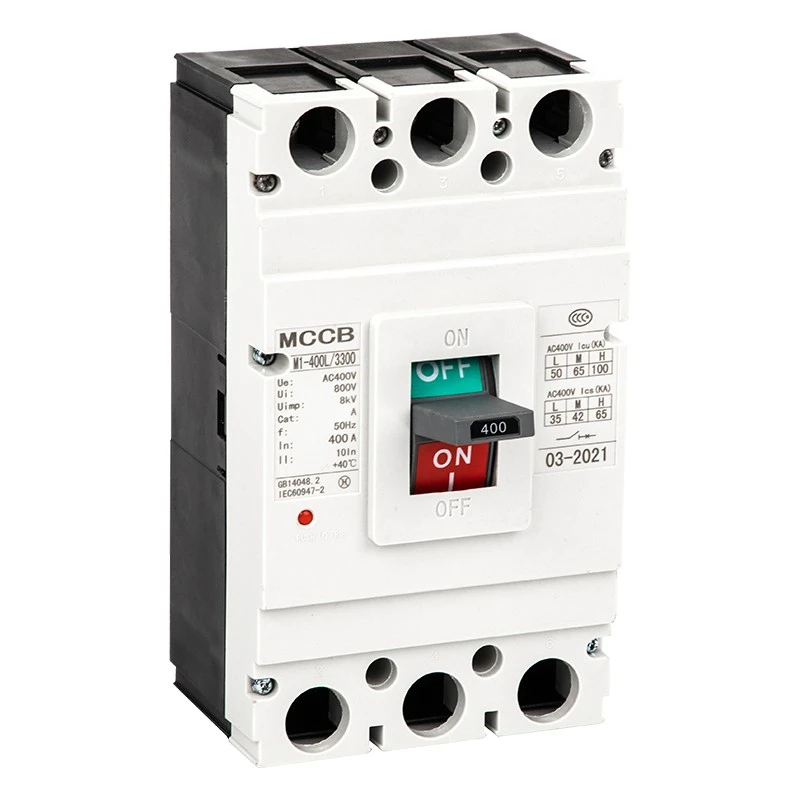

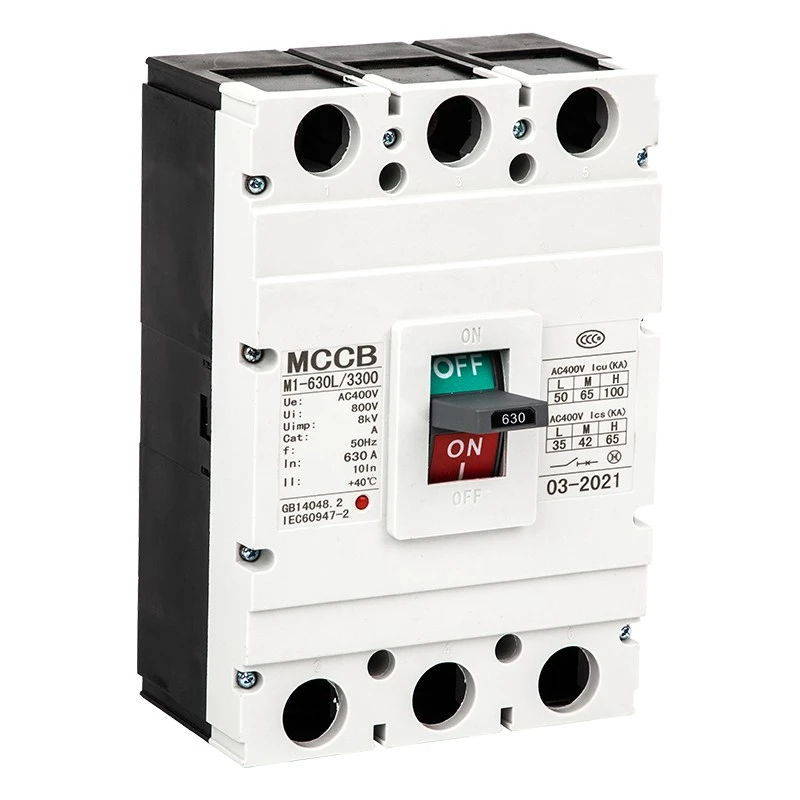

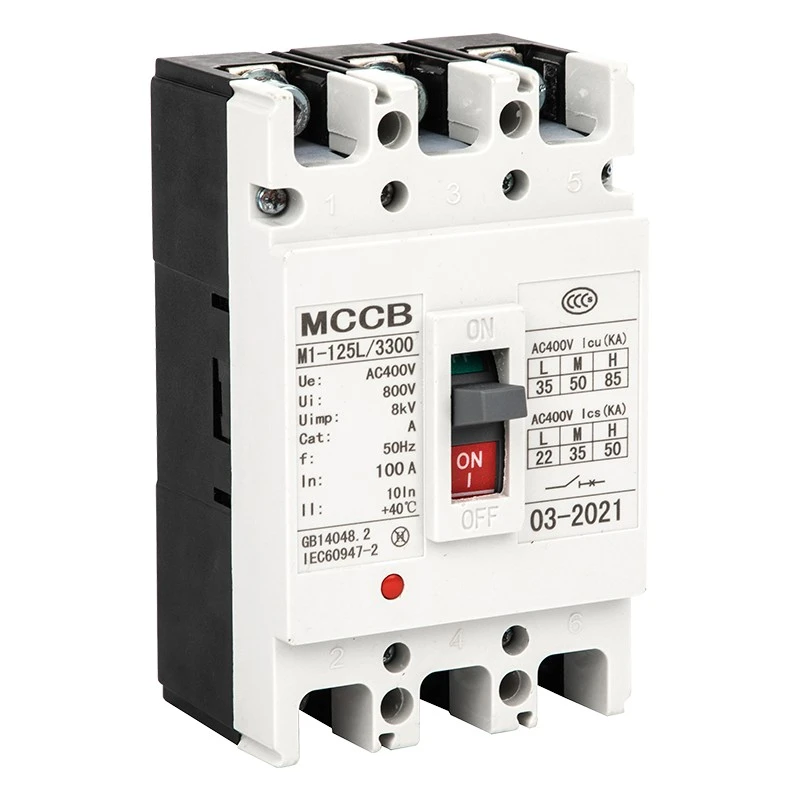

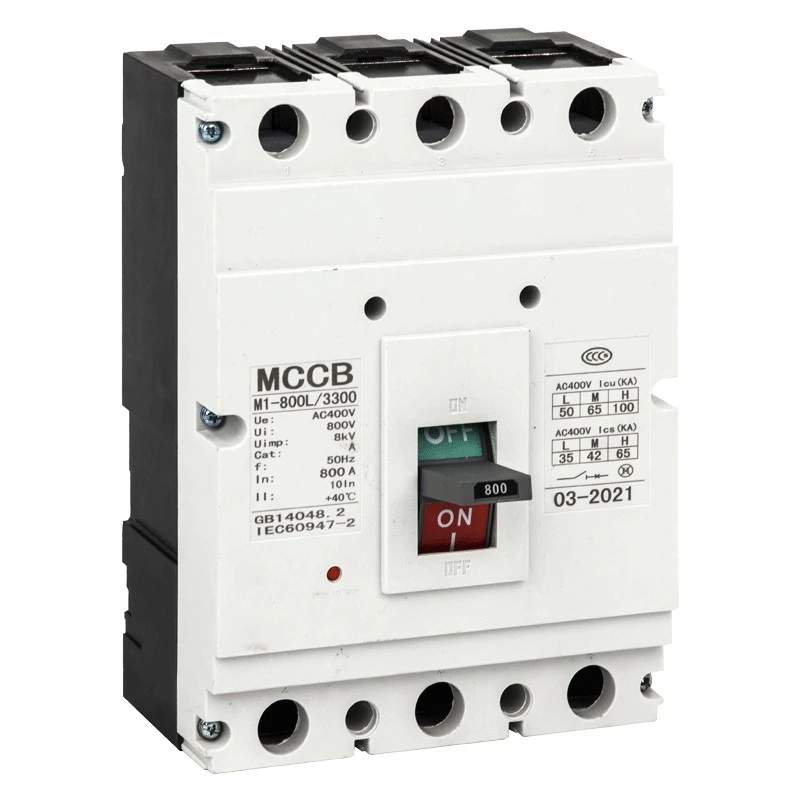

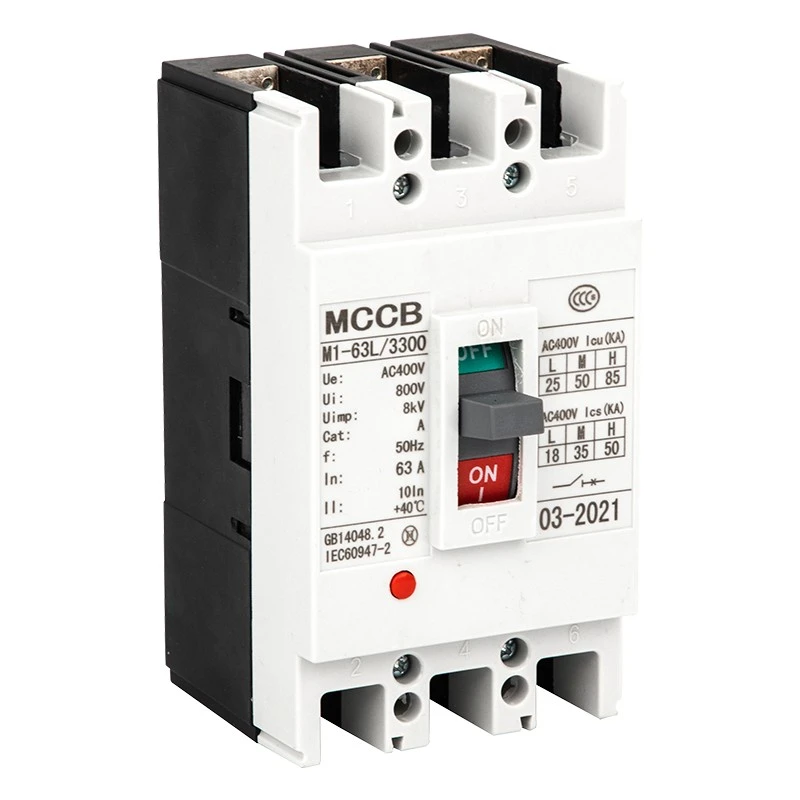

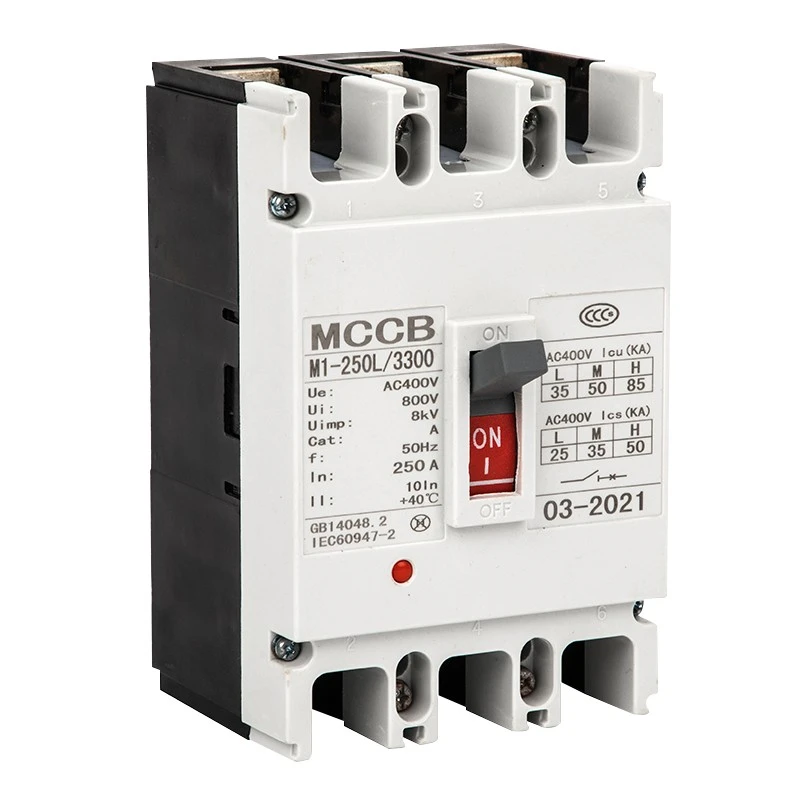

CM1 Molded Case Breaker
Model:DAM2 (CM1) Series
Wannan CDADA CM1 Molded Case Circuit Breaker (MCCB) an gina shi don siye da yawa, tare da takaddun IEC60947-2 da ingantaccen aiki don tsarin wutar lantarki na masana'antu. CM1 MCCB yana amfani da tsari mai ƙarfi da ingantaccen tsarin tarwatsewa, mai sauƙin shigarwa da kulawa. Ya haɗu da kariya mai hankali tare da ƙira mai dorewa, yana tabbatar da tsawon rayuwar sabis a cikin rarraba wutar lantarki da aikace-aikacen masana'antu masu nauyi.
Wannan jerin DAM2 (CM1) CM1 Molded Case Circuit Breaker babban na'urar kariya ce mai ƙarancin ƙarfin wuta wanda Shanghai DADA Electric Co., Ltd., amintaccen masana'anta ne kuma mai siyarwa a China. Tare da rated insulation ƙarfin lantarki har zuwa 800V, rated aiki ƙarfin lantarki 400V/690V, da kuma rated halin yanzu daga 63A zuwa 1600A, shi ne yadu amfani da wutar lantarki rarraba, kewaye kariya, motor iko da kuma sau da yawa sauyawa.
Wannan jerin yana goyan bayan shigarwa a tsaye da a kwance, ya dace da daidaitattun IEC60947-2, kuma yana ba da cikakken nauyi, gajeriyar kewayawa da kariyar ƙarancin wutar lantarki don kayan wuta.
Siffofin samfur
★ Wutar lantarki mai ƙima: 800V; Wutar lantarki mai aiki: 400V/690V
★ Kewayon Yanzu: 63A, 100A, 225A, 400A, 630A, 800A, 1250,1600A
★ Breaking iya aiki: L misali, M matsakaici, H high karya irin
★ Thermal-magnetic & electromagnetic dual saki halaye
★ A tsaye / a kwance shigarwa, dace da keɓe amfani
★ Faɗin yanayin yanayin yanayi: -5℃~+40℃
★ Altitude ≤2000m, gurbacewa digiri 3
Aikace-aikace
CDADA CM1 Molded Case Circuit Breaker ana amfani dashi ko'ina a cikin masana'antu da tsarin rarraba wutar lantarki, gami da masana'antu, gine-gine, cibiyoyin bayanai, tashoshin wutar lantarki, kayan more rayuwa, kayan aikin injiniya, da katunan rarraba wutar lantarki. Hakanan ana amfani dashi don kariyar mota, jujjuyawar kewayawa, da samar da wutar lantarki mai aminci a cikin gine-gine, ƙarfe, petrochemical da sauran masana'antu.
Ma'aunin Fasaha
★ Matsayi: IEC60947-2, GB14048.2
★ Mitar: AC 50Hz/60Hz
★ Sanda: 1P, 2P, 3P, 4P
★ Saki: Thermal-magnetic (biyu), electromagnetic (nan take)
★ Saitin nan take: Nau'in Rarraba 10In ± 20%; Nau'in Motoci 12In ± 20%
★ Shigarwa: Waya ta gaba, na'ura ta baya, nau'in plug-in
★ Aiki: Manual, lantarki aiki inji
|
Samfura |
Sanda |
Ƙididdigar halin yanzu (A) |
An ƙididdigewa aiki ƙarfin lantarki (V) |
An ƙididdigewa rufi ƙarfin lantarki (V) |
Ƙarfin Ƙarshen Ƙarfin Ƙarfin Ƙarfin Ƙarfin Ƙarfafawa (Icu) |
Flashover nisa (mm) |
||
|
Gwajin ƙarfin lantarki (V) |
Iku (kA) |
Ics (kA) |
||||||
|
DAM2L-63 |
3 |
10, 16, 20, 25, 32, 40, 50, 63 |
400 |
500 |
400×1.10 |
25 |
18 |
0 |
|
DAM2M-63 |
3, 4 |
50 |
35 |
|||||
|
DAM2L-100 |
3, 4 |
16, 20, 25, 32, 40, 50, 63, 80, 100 |
400 |
800 |
30 |
22 |
≤50 |
|
|
DAM2M-100 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-100 |
3 |
85 |
50 |
|||||
|
DAM2L-100 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-100 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-225 |
3, 4 |
100, 125, 140, 160, 180, 200, 225 |
400 |
800 |
35 |
25 |
||
|
DAM2M-225 |
2,3,4 |
50 |
35 |
|||||
|
DAM2H-225 |
3 |
85 |
50 |
|||||
|
DAM2L-225 |
3, 4 |
690 |
10 |
5 |
||||
|
DAM2M-225 |
2,3,4 |
20 |
10 |
|||||
|
DAM2L-400 |
3 |
225, 250, 315, 350, 400 |
400 |
800 |
50 |
35 |
≤100 |
|
|
DAM2M-400 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-400 |
3 |
100 |
65 |
|||||
|
DAM2L-400 |
3 |
690 |
15 |
8 |
||||
|
DAM2M-400 |
3, 4 |
20 |
10 |
|||||
|
DAM2L-630 |
3 |
400, 500, 630 |
400 |
800 |
50 |
35 |
||
|
DAM2M-630 |
3, 4 |
65 |
42 |
|||||
|
DAM2H-630 |
3 |
100 |
65 |
|||||
|
DAM2L-630 |
3 |
6910 |
15 |
8 |
||||
|
DAM2M-630 |
3, 4 |
20 |
10 |
|||||
|
DAM2M-800 |
3 |
630,700,800 |
400 |
800 |
75 |
50 |
||
|
DAM2H-800 |
3 |
100 |
65 |
|||||
|
DAM2M-800 |
3 |
4690 |
30 |
15 |
||||
|
DAM2-1250 |
3 |
800, 1000, 1250 |
400 |
800 |
85 |
42 |
||
|
DAM2-1250 |
3 |
690 |
25 |
12.5 |
||||
Shaci & Girman Shigarwa
Mu CM1 MCCB yana ba da cikakkun bayanai masu girma don ƙirar 63A-1600A, gami da wayoyi na gaba, na baya da nau'in plug-in. Girman firam daban-daban (63/100/225/400/630/800/1250/1600) sun dace da girman H, H1, H2 don daidaitaccen shigarwar majalisar. Hakanan an daidaita tsayin injin aiki na hannu da na lantarki don sauƙin haɗuwa.
Na'urorin haɗi & Ayyuka
Na'urorin haɗi na ciki
★ Shunt saki: 70% – 110% rated irin ƙarfin lantarki ga abin dogara tripping
★ Ƙarƙashin ƙarfin lantarki: 35%-70% raguwar ƙarfin lantarki don kariya ta atomatik
★ Lambobin taimako & lambar ƙararrawa: amsa sigina da ƙararrawa kuskure
★ Mitar da aka riga aka biya ta sadaukarwa: Jinkirin raguwa 0.5-2s
Na'urorin haɗi na waje
★ Manual aiki inji
★ Electric (motor) tsarin aiki
★ Masu raba lokaci, skru masu hawa, na'urorin bas

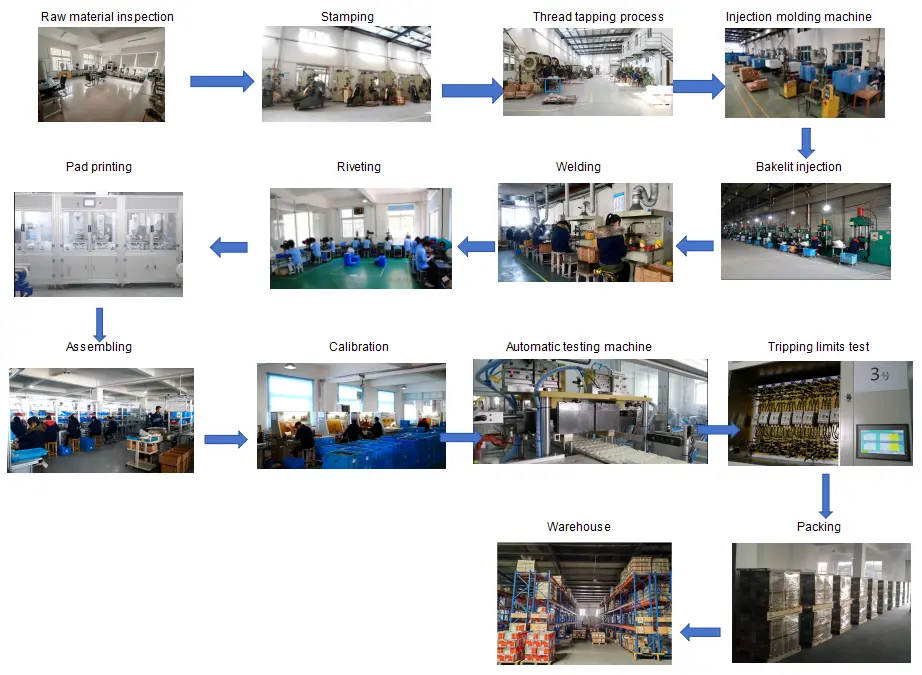

Gudun Kula da ingancin inganci
Duban danyen abu → sarrafa kayan aiki → layin taro → gwajin halayen tafiya → Gwajin hawan zafi → Gwajin gajeren lokaci → Gwajin tsufa → Duban bayyanar & girma → Marufi → Binciken ƙarshe kafin jigilar kaya

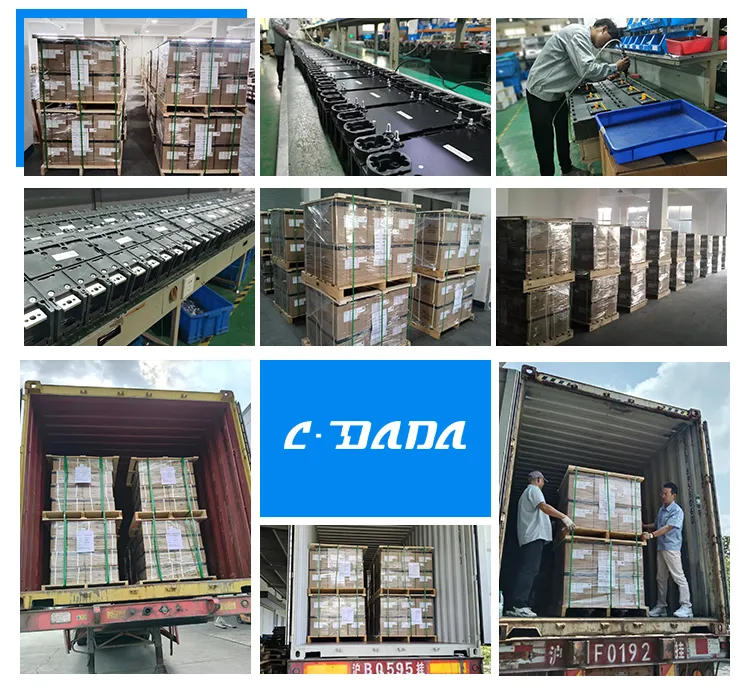

Marufi & jigilar kaya
★ Standard fitarwa kartani + katako pallet don aminci sufuri
★ Label: samfurin, halin yanzu, iyakacin duniya, adadi, takardar shaida
★ Ya dace da kayan aikin teku, iska da ƙasa
Takaddun shaida
IEC60947-2, GB14048.2, CE, CB, ROHS da sauran yarda na duniya.

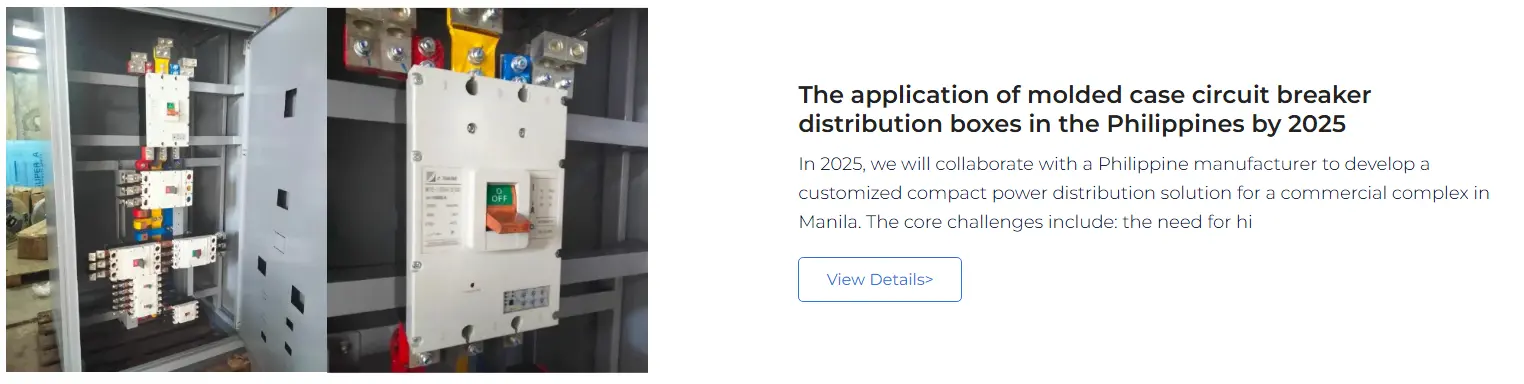

Abubuwan Haɗin gwiwar Abokin Ciniki
CDADA DAM2 jerin MCCB an kawota ga abokan ciniki na duniya, gami da masu haɗa tsarin rarraba wutar lantarki, masana'antun kayan aikin masana'antu, masana'antar sauya sheka, ƴan kwangilar gini da samfuran OEM a Turai, kudu maso gabashin Asiya, Gabas ta Tsakiya, Afirka da Kudancin Amurka. Muna samar da barga mai girma wadata da kuma na musamman mafita ga dogon lokaci abokan.
