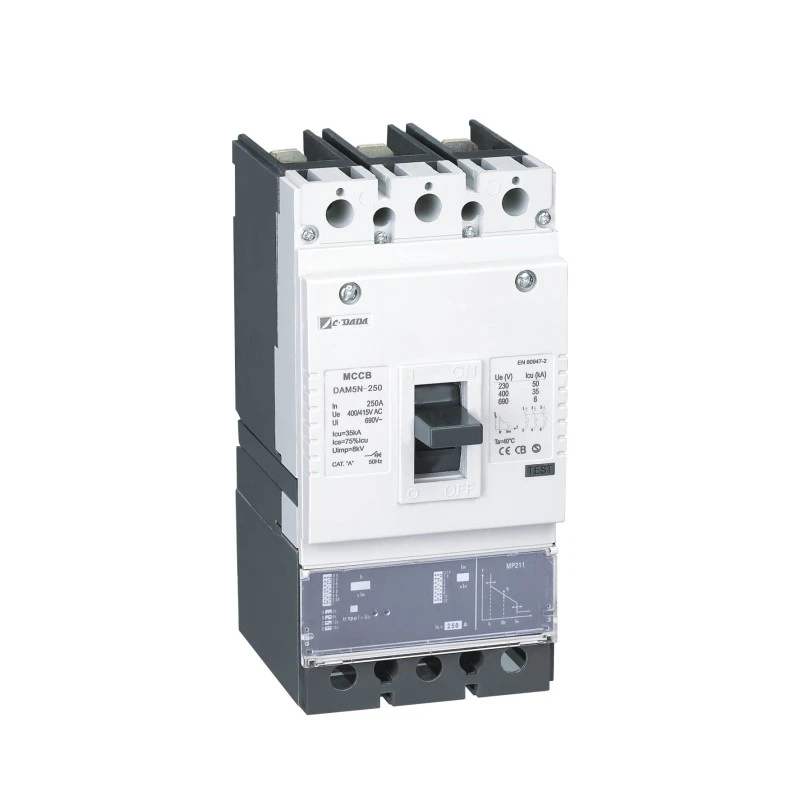

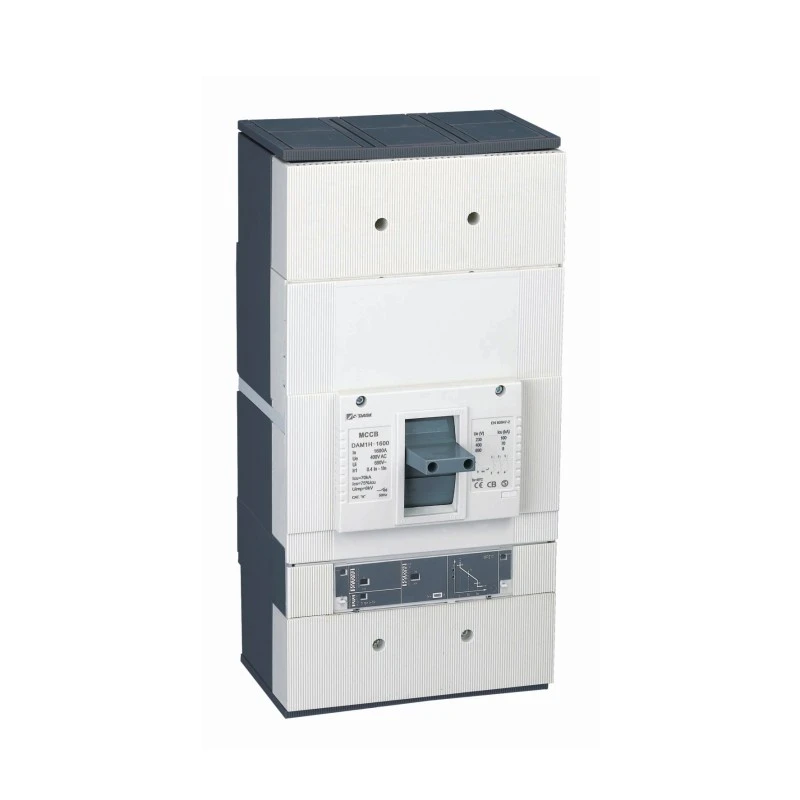

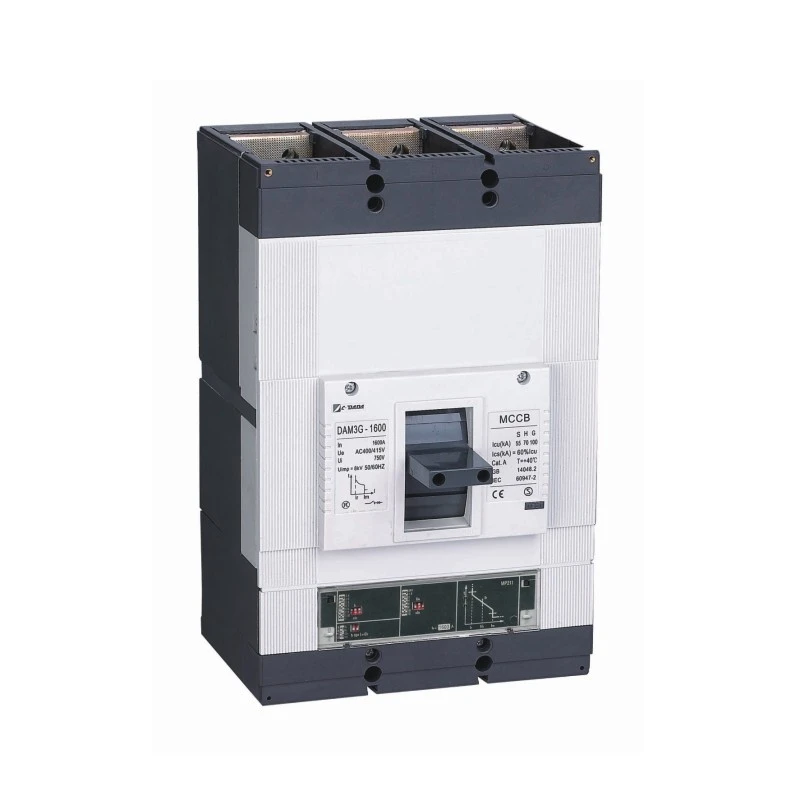

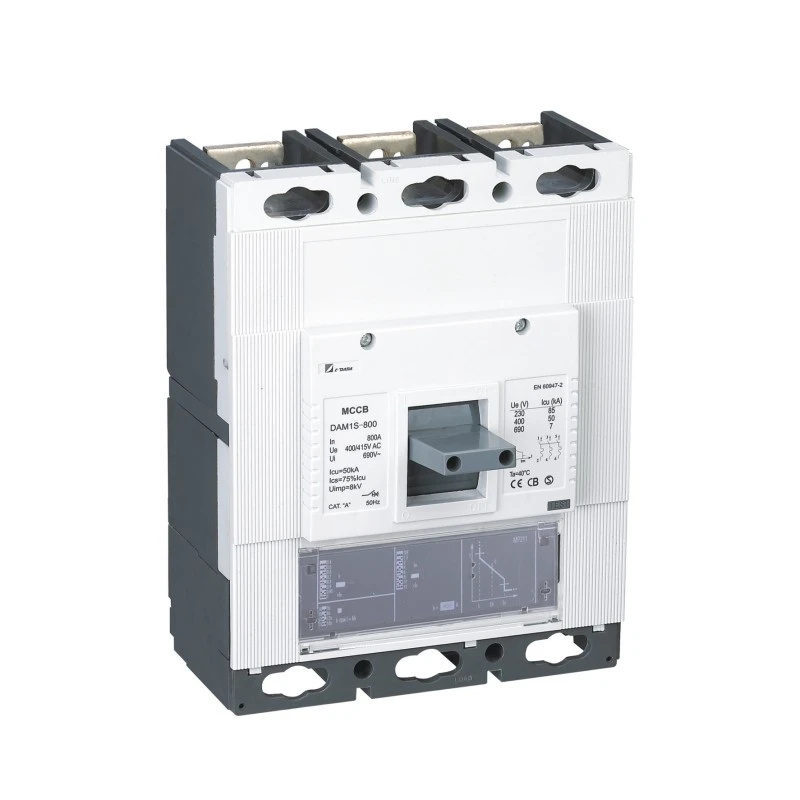

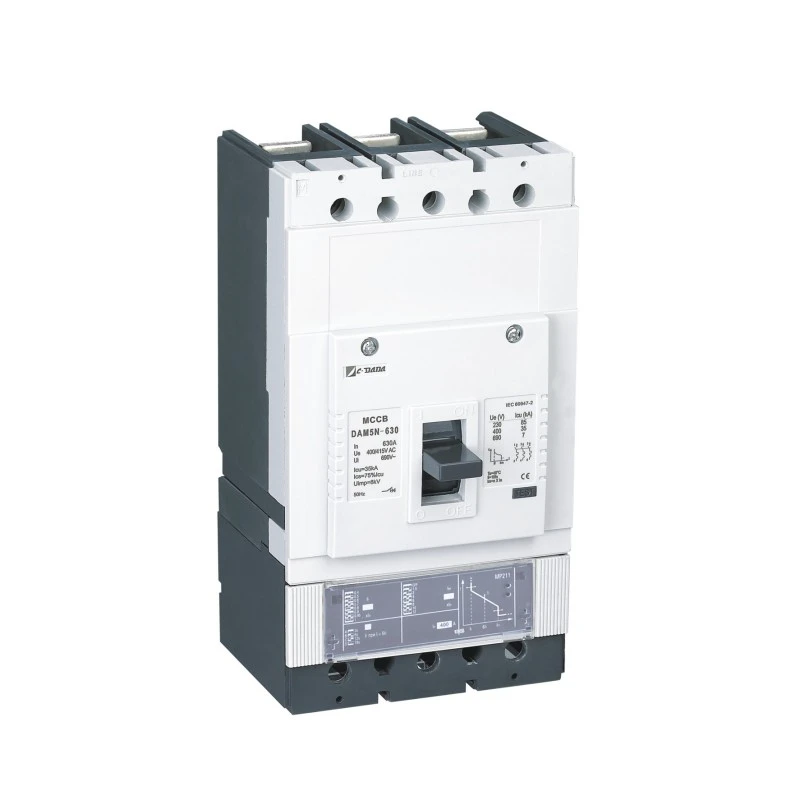

Nau'in Lantarki Molded Case Breaker

Don tsarin wutar lantarki na zamani da ke buƙatar daidaito, hankali, da amintacce, Nau'in Kayan Wutar Lantarki na Wutar Lantarki ta Shanghai DADA Electric CO., LTD. ya kafa sabon ma'auni a cikin kariyar ƙarancin wutar lantarki. Ba kamar na gargajiyar thermal-magnetic breakers, wannan ƙwararren MCCB yana amfani da naúrar balaguron lantarki na tushen microprocessor don isar da ingantacciyar kariyar da za a iya aiwatarwa—mai rigakafi zuwa canjin yanayi na yanayi.

Tare da saitunan daidaitawa daga 40% zuwa 100% A (thermal) da 1.5 × zuwa 12 × A (magnetic), yana ba da sassaucin ra'ayi maras kyau don hadaddun daidaituwa a cikin cibiyoyin bayanai, masana'antu shuke-shuke, asibitoci, da kuma sabunta makamashi tsarin. An ƙididdige shi daga 100A zuwa 1600A a 400V/415V, yana haɗa ƙaƙƙarfan ƙira tare da ayyuka na ci gaba-kuma ya haɗa da tafiya-tafiya-tsare-tsare-tsare yayin manyan laifuffuka, koda kuwa na'urorin lantarki sun gaza.

Maɓalli Maɓalli

Model: CDADA DAM2 / DE Series (Nau'in Lantarki Molded Case Breaker)

Nau'in: Lantarki Molded Case Breaker

Wuta: 3P / 4P

Ƙimar Wutar Lantarki (Ue): 400V / 415V AC

Ƙididdigar Yanzu (A): 100A - 1600A

Sashin Tafiya: Sakin lantarki na tushen Microprocessor

Daidaitawar thermal (Ir): 40% - 100% na In

Daidaita Magnetic (Im): 1.5× - 12× In

Amfani

★ Mai fadi: 100A zuwa 1600A(AC)

★ Karamin girma

★ Daidaitaccen yanayin zafi (40-100%) In.

Daidaitaccen saitin maganadisu (sau 1.5-12) In.

★ Turawa zuwa tanadin maballin tafiya.

★ Raba main da arcing lambobin sadarwa

★ Na'urorin haɗi da yawa.

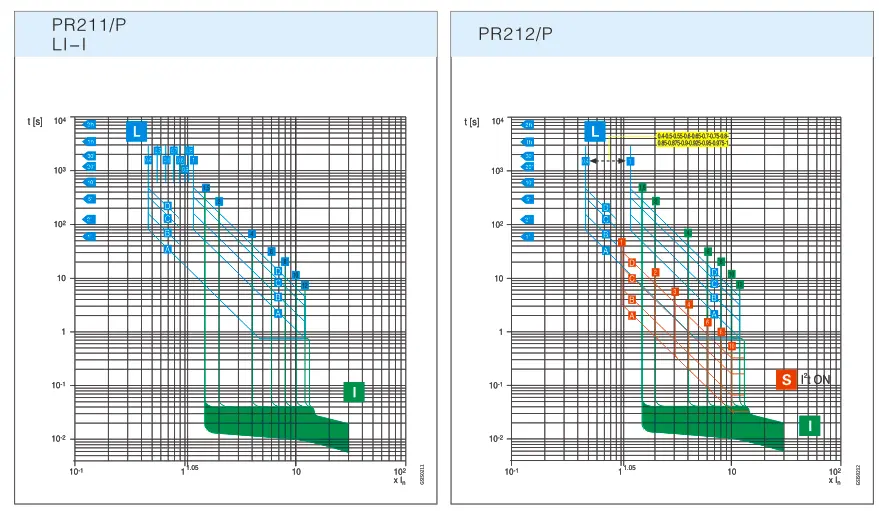

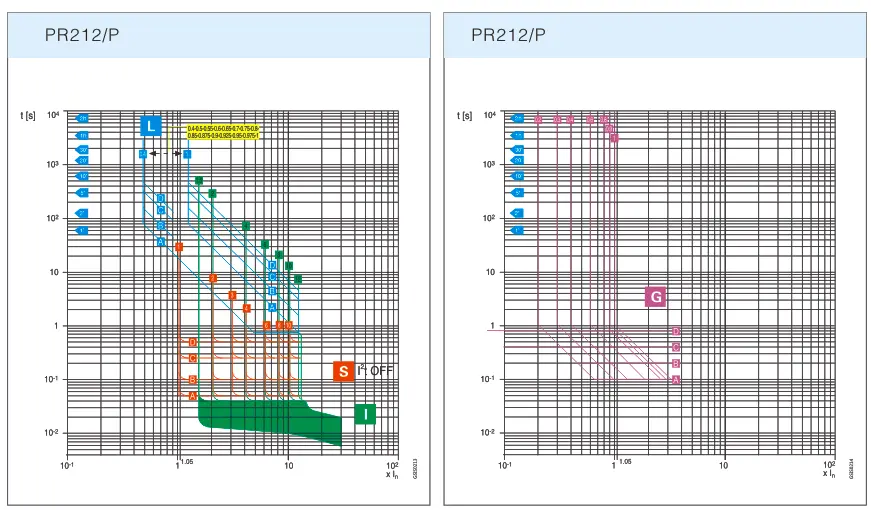

Lanƙwan siffar sakin lantarki

Sigar lantarki

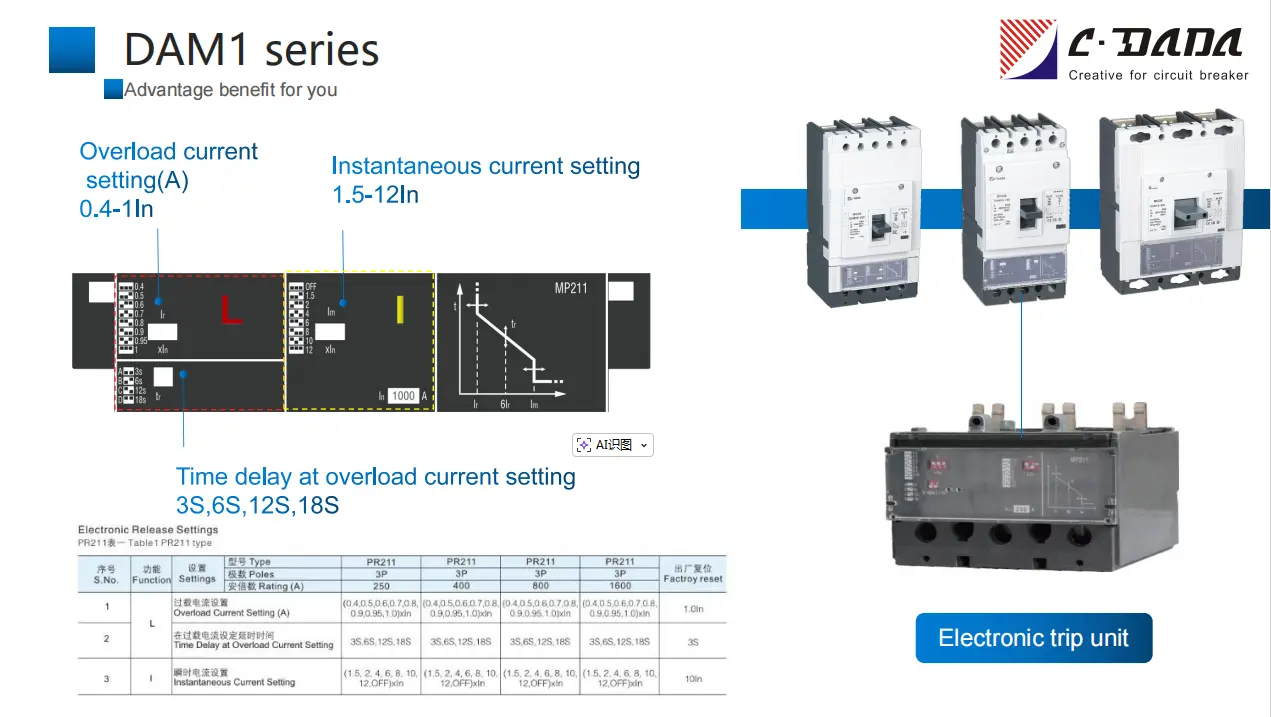

Table 1 PR211 nau'in

S.A'a

Aiki

Saituna

Nau'in

Farashin PR211

Farashin PR211

Farashin PR211

Farashin PR211

Sake saitin masana'anta

Sandunansu

3P

3P

3P

3P

Rating (A)

250

400

800

1600

1

L

Saitunan Ƙarfafawa na Yanzu (A)

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xIn

(0.4,0.5,0.6,0.7,0.8,0.9,0.95,1.0) xIn

1.0 In

2

Jinkirin Lokaci a Saitunan Wuta na Yanzu

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

I

Saitin Yanzu Nan take

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

10 In

Table 2 PR212 nau'in

S.A'a

Aiki

Saituna

Nau'in

Farashin PR212

Farashin PR212

Farashin PR212

Farashin PR212

Sake saitin masana'anta

Sandunansu

3P

3P

3P

3P

Rating (A)

250

400/630

800

1600

1

L

Saitunan Ƙarfafawa na Yanzu (A)

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

(0.4,0.5,0.55,0.6,0.65,0.7,0.75,0.8) xIn

1.0 In

2

Jinkirin Lokaci a Saitunan Wuta na Yanzu

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S,6S,12S,18S

3S

3

S

Gajere - Saitunan Zaure na Yanzu (A)

(1, 2, 3, 4, 6, 8, 10, KASHE) xIn

(1, 2, 3, 4, 6, 8, 10, KASHE) xIn

(1, 2, 3, 4, 6, 8, 10, KASHE) xIn

(1, 2, 3, 4, 6, 8, 10, KASHE) xIn

6 In

4

Jinkirin Lokaci a Gajeren Saitin Yanzu

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.05, 0.1, 0.25, 0.5

0.1S

5

I

Saitin Yanzu Nan take

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

(1.5, 2, 4, 6, 8, 10, 12, KASHE) xIn

10 In

6

G

Saitin Laifin Ƙasa na Yanzu (A)

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, KASHE) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, KASHE) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, KASHE) xIn

(0.2,0.3,0.4, 0.6,0.8,0.9, 1.0, KASHE) xIn

1.0 In

7

Jinkirin Lokaci a Saitin Laifin Ƙasa

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.1, 0.2, 0.4, 0.8

0.4S

8

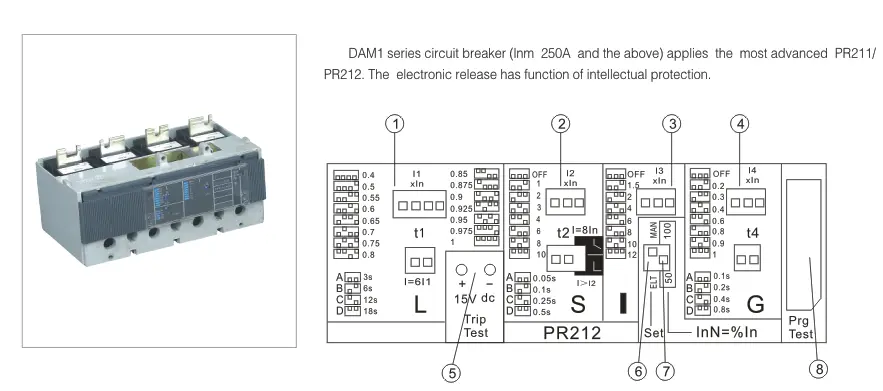

Zaɓin saitunan lantarki ko na lantarki da aka saita

Aiki SET (canza ELT/MAN)

9

Ana amfani da shi don saita sigogi na dip switch na layin sifili

InN =% A, canza 50/100

10

Socket don na'urar auna haɗi

Socket panel

Me yasa Zabi CDADA Electronic MCCB?

★ Haqiqa Hankali, Ba Automation kawai ba
Microprocessor yana ci gaba da yin nazarin sifofin raƙuman ruwa na yanzu, yana ba da damar madaidaicin lokacin juzu'i, ƙayyadaddun lokaci, da kariyar nan take-ba tare da ɗigo ba saboda zafi ko tsufa.

★ Fail-Safe Design
Ko da da'irar lantarki ta kasa, latch ɗin lantarki kai tsaye yana tabbatar da tafiye-tafiyen mai karya yayin gajeriyar da'irori - saduwa da buƙatun rashin aminci na IEC 60947-2.

★ Babban Haɗin kai
Matsakaicin daidaitawa matsananci (40-100% Ir, 1.5-12× Im) suna ba da damar cikakken daidaituwa tare da na'urori na sama / ƙasa - rage girman wuraren fita.

★ Kayayyakin Hulɗa na Gaba
Mai jituwa tare da na'urorin sadarwa na zaɓi (Modbus RTU, Profibus) don haɗawa cikin Tsarin Gudanar da Gina (BMS) ko grid masu wayo.

★ Ingancin Duniya, Farashin Gasa
An kera shi a ƙarƙashin ISO 9001 a Shanghai, tare da takaddun shaida na duniya - yana ba da aikin matakin Turai a ingancin farashin Asiya.

★ Muna da kwazo tawagar 15 injiniyoyi mayar da hankali a kan samfurin ci gaban, inganta, da kuma gyare-gyare.

Ingantattun Aikace-aikace

Cibiyoyin bayanai: Hana gazawar rugujewa tare da madaidaicin zaɓe

Asibitoci: Tabbatar da ikon da ba ya katsewa don tsarin tallafin rayuwa

Kayan Automation na Masana'antu: Haɗa tare da VFDs, masu farawa mai laushi, da na'urorin mutum-mutumi

Solar/Wind Farms: Daidaita zuwa bayanan tsararru masu canzawa

Gine-ginen Kasuwanci na Smart: Kunna saka idanu akan makamashi ba tare da ƙarin mita ba

Tambayoyin da ake yawan yi (FAQ)

Q1: Menene ya sa MCCB na lantarki ya bambanta da thermal-magnetic one?

A1: Nau'in Lantarki Molded Case Breakers suna amfani da microprocessor don nazarin halin yanzu da kuma jawo tafiye-tafiye tare da madaidaicin gaske. Zazzaɓin yanayi bai shafe su ba, suna ba da jeri na daidaitawa mai faɗi, kuma suna iya samar da shigar da bayanan lodi-ba kamar nau'in bimetal/solenoid na tushen thermal-magnetic.

Q2: Shin MCCB na lantarki na 1600A yana samuwa a cikin saitin igiya 4?

A2: Ee-duk CDADA lantarki MCBs daga 250A zuwa 1600A suna samuwa a duka 3P da 4P iri.

Q3: Menene zai faru idan na'urar tafiye-tafiye ta lantarki ta kasa yayin gajeren kewayawa?

A3: Mai karyawa ya haɗa da madaidaicin injina: a lokacin matsanancin matsananciyar kuskure (> 12× In), latch ɗin maganadisu yana haifar da buɗewa kai tsaye-tabbatar da aminci har ma da na'urar lantarki ta layi.

Q4: Zan iya saka idanu kan ƙimar halin yanzu?

A4: Ee — naúrar tafiye-tafiye ta lantarki tana nuna nan take, max, min, da matsakaita na halin yanzu akan windows lokacin zaɓi (misali, 24h), masu amfani don sarrafa makamashi.

Q5: Me yasa zabar CDADA akan sauran samfuran MCCB masu hankali?

A5: CDADA tana ba da:

● Haƙiƙa daidaitaccen kewayo biyu (yawancin masu fafatawa suna iyakance Im zuwa ≤10 ×)

● Rashin aminci na inji (ba duk "electronic" MCCBs ke da wannan ba)

● Karamin girman-ya dace da ginshiƙan gado ba tare da gyara ba

● Ƙarfin takardar shaida ta duniya (ASTA, KEMA, CE)

● Farashin abokantaka na OEM tare da tallafin fasaha a cikin Ingilishi
