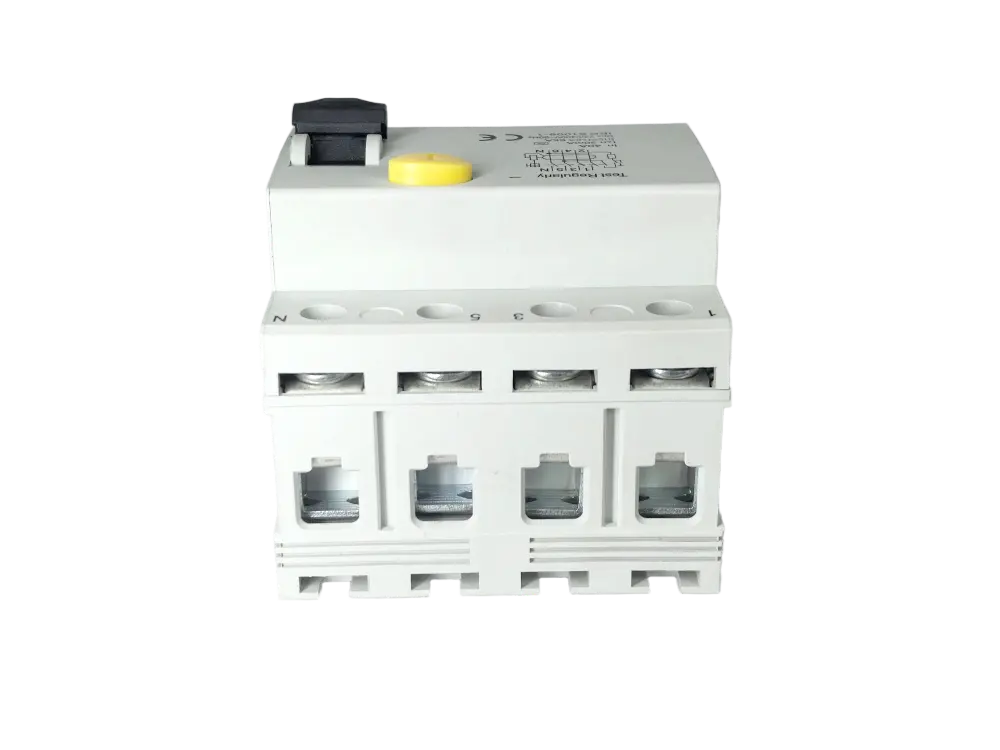

Nau'in A Residual Current Circuit breaker

Tabbatar da cikakken tsaro na sirri da na wuta a cikin mahalli masu wadatar lantarki na yau tare da CDADA Type A Residual Current Circuit Breaker (RCCB), zamu iya bayar da farashin masana'anta kai tsaye. Ya wuce ainihin gano ɓoyayyiyar AC - yana da dogaro akan duka sinusoidal AC da raɗaɗin raƙuman ruwa na DC waɗanda na'urorin gama gari ke samarwa kamar caja na waya, direbobin LED, kwamfutoci, da na'urori masu saurin canzawa.

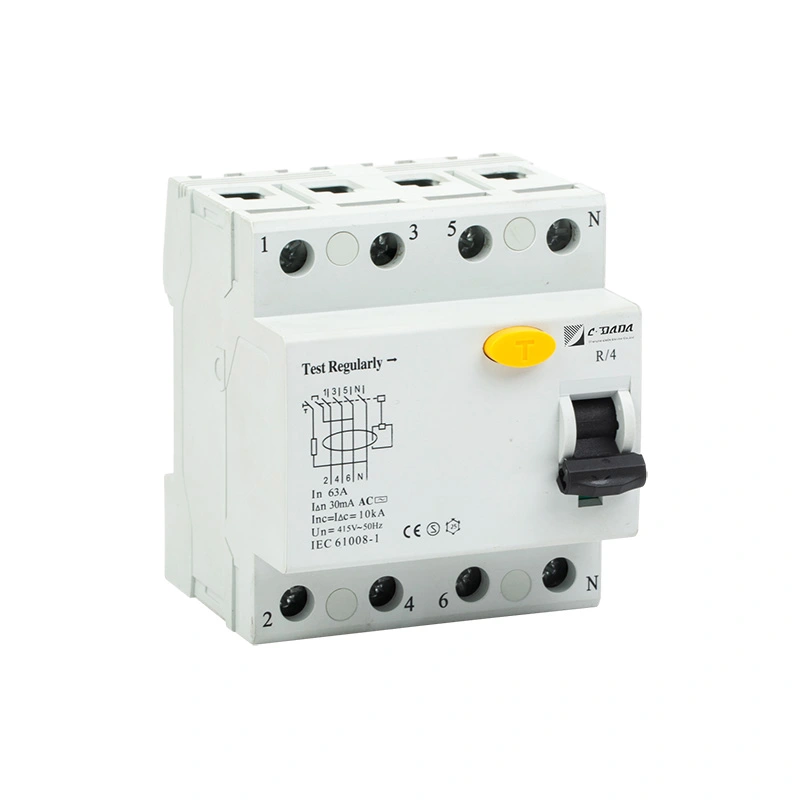

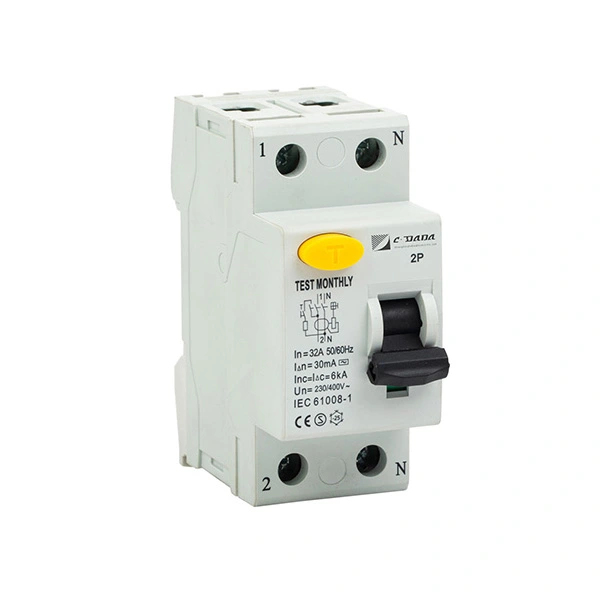

Akwai shi a cikin saitunan 2P (1+N) da 4P (3+N) tare da madaidaitan igiyoyin ruwa daga 16A zuwa 100A da hankali na 10mA, 30mA, 100mA, ko 300mA, an yi shi don zama na zamani, ofis, da shigarwar kasuwanci na haske.

Tare da ƙimar gajeriyar yanayi ta 6kA, kariya ta IP20, da zaɓuɓɓukan tashoshi biyu (lug/pin), CDADA Nau'in A RCCB ya haɗu da aminci, aminci, da ƙirar mai sakawa-duk suna goyan bayan yardawar duniya.

Maɓalli Maɓalli

Me yasa Zabi CDADA Nau'in A RCCB?

★  Yana Gano Barazana na Leaks na Duniya

Ba kamar na'urorin Nau'in AC na asali ba, Nau'in CDADA A yana amsawa ga duka AC da pulsating DC-mahimmanci don aminci a cikin gidaje da ofisoshi cike da kayan wutar lantarki, masu juyawa, da caja EV.

★ Babu Tafiya

Babban tacewa yana tabbatar da kariya ga magudanar wutar lantarki da magudanar ruwa mara lahani, yayin da har yanzu yana ba da garantin <0.1s lokacin tafiya a ƙimar hankali.

★ Bayyana Matsayin gani

Alamar matsayin lamba ja/koren tana ba da damar tabbatarwa nan take na jihar mai karya-mahimmanci yayin kulawa ko duban gaggawa.

★ Waya mai sassauƙa & Babban dacewa

Yana goyan bayan tashoshi na lug ko fil da igiyoyi 35mm², yana mai da shi dacewa da sandunan bas da masu gudanar da sassauƙa a cikin bangarorin zamani.

★ ƙarin rivet guda biyu

ƙara ƙarfi na casing a cikin mahaɗin mahaɗin saboda ƙarin rivets guda biyu da ƙwanƙwaran fuska

★ DIN dogo matsa

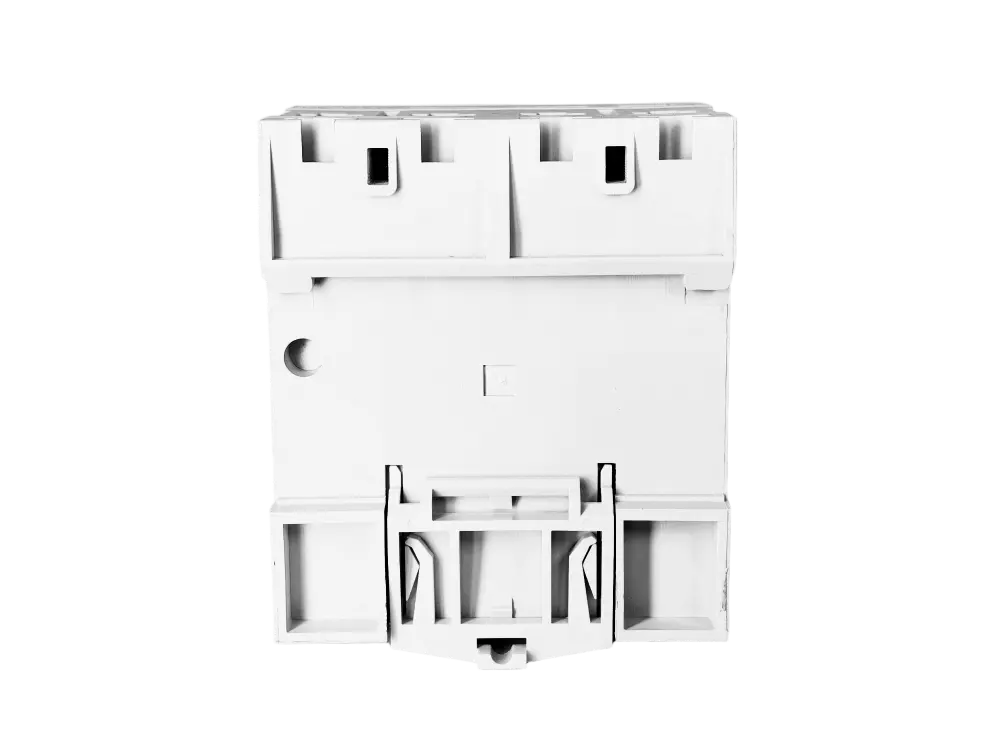

Saurin shigarwa da ƙarin amincin ɗaukar hoto akan dogo na DIN saboda latch tare da kulle biyu

★ Yarda da Duniya, Ƙimar Gida

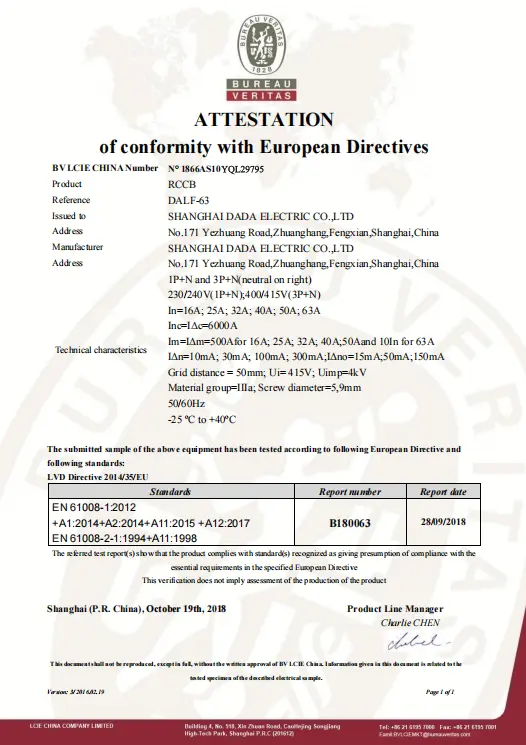

An tabbatar da shi zuwa IEC/EN 61008-1, wanda ya dace da EU, Gabas ta Tsakiya, Afirka, da kasuwannin Asiya-tare da farashi mai gasa daga masana'antun kasar Sin masu dogaro.

Aikace-aikace na yau da kullun

Gidajen Zamani: Wuraren da'ira tare da TV, kwamfutar tafi-da-gidanka, na'urorin lantarki

Ofisoshi: ɗakunan IT, igiyoyin wutar lantarki

Retail: Tsarin POS, alamar dijital, hasken LED

Wuraren Cajin EV: Tushen kariya na asali (haɗe tare da na'urar da ta wuce kima)

Abubuwan Sabuntawa: Masu jujjuyawar hasken rana suna haifar da zubewar DC

FAQ

Q1: Menene bambanci tsakanin Nau'in A da Nau'in AC RCDs?

A1: Nau'in AC kawai yana gano kwararar sinusoidal AC mai santsi. Nau'in A yana gano duka AC da DC mai jujjuyawa (misali, daga masu gyara a cajar waya, direbobin LED, ko injin wanki). Ga kowane da'ira mai kayan lantarki, Nau'in A ana buƙata ta lambobin lantarki na zamani.

Q2: Shin nau'in RCD na 30mA ya isa don kariya ta mutum?

A2: iya. 30mA shine daidaitaccen madaidaicin madaidaicin kariyar girgizar ceton rai ta IEC. Nau'in CDADA's A yana tabbatar da yana aiki koda kuwa laifin ya haɗa da abubuwan haɗin DC - yana mai da shi mafi aminci fiye da Nau'in AC a cikin yanayi na ainihi na duniya.

Q3: Shin wannan RCCB yana ba da kariyar wuce gona da iri ko gajeriyar kewayawa?

A3: A'a. Wannan tsantsar RCCB ne (babu kariya mai wuce gona da iri). Dole ne a yi amfani da shi a jeri tare da MCB ko fuse don kariya daga wuce gona da iri da gajerun kewayawa.

Q4: Zan iya amfani da shi a cikin tsarin ƙasa na TT?

A4: Ee-Nau'in A Residual Current Circuit Breakers ana amfani da su a cikin tsarin TT, musamman tare da 100mA ko 300mA don kariya ta wuta a mai shiga, da 30mA don zagaye na ƙarshe.

Q5: Me yasa zabar CDADA akan sauran nau'ikan nau'in A?

A5: CDADA tana ba da:

● Gaskiya IEC 61008-1 yarda da rahotannin gwaji

● Zaɓuɓɓukan tasha biyu (lug/pin) don sassauƙan wayoyi

● Halin lamba mai lamba (ja/kore)

● Ƙirar rigakafi-babu tafiye-tafiye na ƙarya

● OEM-shirye: farashi mai yawa, takaddun Ingilishi, samfuri mai sauri
