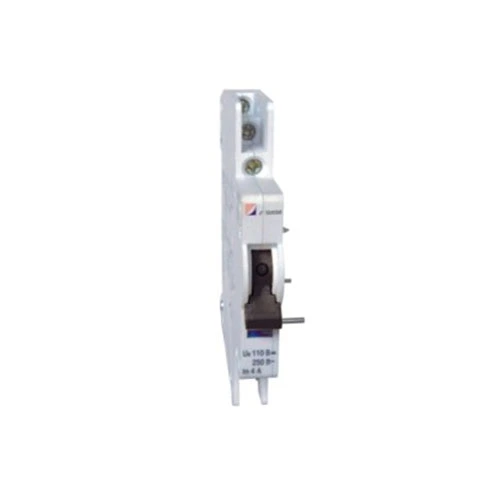

Ƙararrawa na MCB da Tuntuɓar Taimako

CDADA masana'anta ce kuma mai siyarwa tare da gogewar shekaru 40+, mun ga ayyuka da yawa inda ma'aikatan panel suka rasa mai fasa-har sai ya yi latti. Wannan shine dalilin da ya sa muka tsara CDADA MCB Ƙararrawa da Ƙwararrun Ƙwararrun Ƙwararru (DAB7-FL): mai wayo, bayani mai ceton sararin samaniya wanda ke ba ku sigina masu mahimmanci guda biyu a cikin ɗayan nau'i-nau'i guda ɗaya-matsayin mai karya (ON / KASHE) da kuma dalilin tafiya (overload / short-circuit).

Shawarwarinmu: Idan tsarin sarrafa ku yana buƙatar bambance tsakanin kashewa da tafiyar kuskure, wannan shine na'urar da dole ne ku saka. Madaidaicin lambobin sadarwa kadai ba za su iya bambanta ba - amma namu zai iya.

Zane-Aiki Dual-Aiki: Module Daya, Sigina Biyu

Ƙararrawa na CDADA MCB & Auxiliary Contact yana fasalta lambobin sadarwa masu zaman kansu guda biyu tare da zaɓen injina mai wayo:

★ Alamar rawaya a “A”: Duk lambobin sadarwa suna aiki azaman lambobi masu taimako → siginar MCB ON/KASHE

★ Alamar rawaya a “AL”:

★ Lambobin Hagu = Maɗaukaki ( Matsayin ON/KASHE )

★ Dama = Ƙararrawa (yana kunnawa kawai lokacin da MCB yayi balaguro saboda kuskure)

★ Wannan yana nufin zaku iya waya:

★ Hasken kore don nuna "ƙara a kunne"

★ Fitilar jan haske ko PLC don kunna “ƙarararrawar kuskure”

★ Duk daga tsarin ƙara guda ɗaya akan DAB7-63 MCB ɗin ku.

Ƙididdiga na Fasaha

Muhimmi: Wannan na'ura ba za a iya amfani da ita kadai ba-dole ne a dora shi kai tsaye akan DAB7-63 MCB.

Jagoran Shigarwa (Daga Injiniyoyinmu)

★ Bi waɗannan matakan don aiki mai aminci, abin dogaro:

★ Kashe da'ira kafin shigarwa.

Zamar da tsarin DAB7-FL zuwa gefen hagu na DAB7-63 MCB har sai ya danna.

★ Amintacce tare da tef mai gefe biyu da aka haɗa (don juriyar girgiza).

★ Haɗa wayoyi zuwa tashoshi 4 (2 kowace rukunin lamba):

★ Yi amfani da biyun hagu don taimako (matsayi)

★ Yi amfani da dama guda biyu don ƙararrawa (ganowa tafiya)

★ Sanya mai zaɓin rawaya zuwa "AL" idan kuna buƙatar aikin ƙararrawa kuskure.

Gwaji: Yi tafiya da MCB da hannu - tuntuɓar ƙararrawa kawai ya kamata ya canza yanayi yayin balaguron kuskure.

★ Pro Tukwici: Sanya wayoyi a sarari! Yawancin masu fasaha suna rikitar da siginar ƙararrawa vs. ƙararrawa yayin ƙaddamarwa.

Yaushe Ya Kamata Ku Yi Amfani da Wannan maimakon Madaidaicin Tuntun Taimako?

Aikace-aikace na yau da kullun:

★ Data center PDU monitoring

★ Akwatunan haɗakar rana

★ Masana'antu kula da bangarori

★ Tsarin Gudanar da Gine-gine (BMS)

★ Elevator ko HVAC aminci da'irori

Tambayoyin da ake yawan yi

Q1: Zan iya amfani da wannan akan MCBs marasa CDADA?

A1: A'a. DAB7-FL an ƙera shi da injina da ƙira kawai don CDADA DAB7-63 breakers. Ba zai dace da Schneider, ABB, ko Siemens MCBs ba.

Q2: Yaya ainihin lambar ƙararrawa ke aiki?

A2: A cikin MCB, tsarin latch ɗin tafiya yana motsawa daban-daban yayin balaguron zafi / maganadisu da kashe kashewar hannu. DAB7-FL yana gano wannan bambance-bambancen inji kuma yana kunna lambar ƙararrawa kawai yayin kuskure na gaske.

Q3: Ina bukatan duka lambobin sadarwa biyu?

A3: Ba lallai ba ne. Kuna iya amfani da ƙarin kawai, ƙararrawa kawai, ko duka-ya danganta da dabarun sarrafa ku. Tsarin yana ba ku sassauci.

Q4: Shin ya dace da aikace-aikacen hasken rana na DC?

A4: iya! Tare da ƙimar DC-12 na 110V/0.5A, yana da manufa don saka idanu akan igiyoyin hasken rana inda kuke buƙatar gano kurakuran tsararrun PV daga nesa.

Q5: Me yasa zabar CDADA akan nau'ikan nau'ikan iri?

A5: Domin muna bayar da:

● Wariya na gaskiya na gaskiya (ba kawai sanin matsayi ba)

● Haɗin kai mara kyau tare da DAB7 MCBs-babu adaftan faranti

● Gwajin injina na masana'antu - babu wasa ko sigina da aka rasa

● Share alamar gani (tuta mai launin rawaya) don tabbatar da filin

● Takaddun shaida na duniya (CE, CB, RoHS) don ayyukan da ba su da wahala

Bayanan Karshe daga CDADA R&D

A cikin tsarin lantarki na zamani, 'kunnawa/kashe' bai isa ba - kuna buƙatar hankali. Ƙararrawar mu ta MCB & Auxiliary Contact tana juya mai sauƙi mai sauƙi zuwa kumburin bincike, yana taimaka maka gina mafi wayo, mafi aminci. Kuma saboda ƙungiya ɗaya ce ta tsara MCB, kuna samun cikakkiyar daidaituwa - babu zato. " - Ƙungiyar Haɓaka Samfuran CDADA

Shirya yin oda? Muna bayar da:

● Babban rangwame ga masu ginin panel

● Raka'o'in MCB + DAB7-FL da aka riga aka haɗa (ajiye aiki)

● Zane-zane na wayoyi na kyauta & misalan dabaru na PLC
