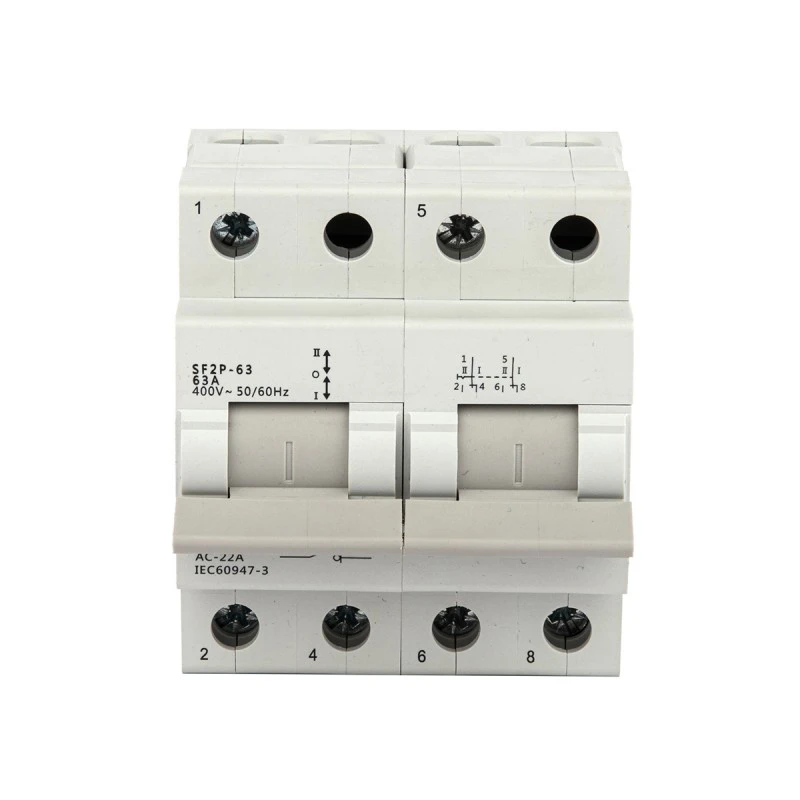

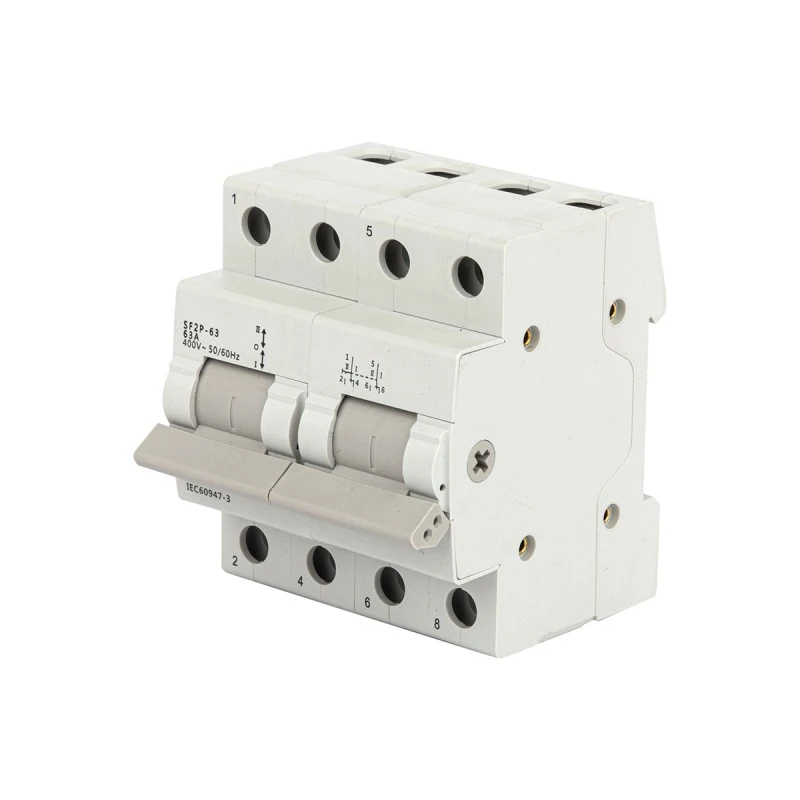

DIN Rail Canjin Canjin 125A
Sayi CDADA DIN Rail Changeover Canja 125A, a matsayin masana'anta a China tare da ƙwarewar shekaru 40+, samfurinmu shine IEC60947-3 bokan, matsayi 3 (I-O-II), don canja wurin tushen wutar lantarki biyu zuwa 400V. Manual, DIN-saka, manufa domin janareta madadin & masana'antu bangarori.
CDADA SF Series DIN Rail Changeover Switch 125A shine ingantaccen bayani mai sauyawa da hannu wanda aka tsara ta Shanghai DADA Electric CO., LTD don ingantaccen tushen wutar lantarki biyu ko jujjuya kaya a cikin kasuwanci, masana'antu, da aikace-aikacen kayan more rayuwa. Mai jituwa tare da IEC 60947-3 da EN 60947-3, wannan canjin yana goyan bayan tsarin AC 50/60Hz har zuwa 400V kuma yana sarrafa ci gaba da igiyoyin ruwa har zuwa 125A a ƙarƙashin nau'in amfani da AC-22A (haɗaɗɗen juriya da haɓakawa).
Yana nuna madaidaicin madaidaicin matsayi 3 (I - KASHE - II), yana ba da damar sauyawa mai aminci tsakanin babban grid da janareta na madadin, masu canji biyu, ko da'irori masu yawa, yayin da matsayin KASHE na tsakiya yana tabbatar da cikakken keɓewa-mahimmanci don kiyayewa da aminci. An ƙera shi don daidaitaccen hawan dogo na TH35 DIN, yana haɗawa ba tare da ɓata lokaci ba cikin allunan rarraba na zamani tare da MCBs, masu tuntuɓar juna, da masu karewa.
Tare da manyan lambobi masu haɓakawa, kayan aikin bazara-taimaka mai sauri-sa / hutu, da daidaitattun abubuwan ciki na ciki, ƙirar 125A tana ba da ayyukan inji na 8,500 da hawan lantarki na 1,500 a ƙarƙashin yanayin ƙima. Lura: ba shi da ɗaki mai kashe baka, don haka dole ne a yi amfani da su tare da fuses na sama ko na'urorin da'ira don kariya ta gajeriyar kewayawa.
Maɓalli Maɓalli (Model 125A)
| Samfura: | SF Series DIN Rail Canjin Canji - 125A |
| Alamar: | CDADA | Maƙerin: Shanghai DADA Electric Co., LTD |
| Sanduna: | Akwai a cikin 1P, 2P, 3P, 4P (ayyana yadda ake buƙata) |
| Ƙimar Yanzu: | 125A (ƙara zuwa 100A idan na yanayi> 40°C) |
| Ƙimar Wutar Lantarki: | 230V / 400V AC, 50/60Hz |
| Insulation Voltage (Ui): | 500V |
| Rukunin Amfani: | AC-22A |
| Juriya na ɗan gajeren lokaci (Icw): | 12 × 125A = 1, 500A na dakika 1 |
| Ƙarfin Ƙarfafawa: | 20 × 125A = 2, 500A a t=0.1s |
| Rayuwar Injiniya: | 8,500 ayyuka |
| Rayuwar Wutar Lantarki: | Ayyuka 1,500 (a ƙarƙashin kaya) |
| Matsayin gurɓatawa: | II |
| hawa: | TH35 DIN dogo, shigarwa na tsaye kawai |
| Aiki: | Hannun matsayi 3 na hannu (I - O - II) |
| Tashoshi: | Kebul ko bas, max 50mm² jan karfe waya |
| Tighting Torque: | 3.5 nm |
| Yarda da Tsaro: | IEC 60947-3, EN 60947-3 |
| Katsewar Arc: | ❌ Babu ɗakin baka → ba don katsewar halin yanzu ba |
Me yasa Zabi CDADA DIN Rail Changeover Canja 125A?
★ Babban Dogara
Injiniya don ci gaba da aikin 125A-mai kyau ga manyan famfo, raka'a HVAC, ko tsarin adana bayanan cibiyar bayanai.
★ Keɓewar Gaskiya tare da KASHE Matsayi
Matsayin "O" na tsakiya yana katse hanyoyin biyu, yana kawar da haɗarin ciyar da baya ko kuzarin bazata.
★ DIN-Rail Ready for Modern Paels
Ajiye sarari da sauƙaƙa shigarwa a cikin ƙaramin allo ko na zamani rarraba.
★ Masana'antu-Gin Gine-gine
Lambobin da aka ɗora a lokacin bazara, sandar mai mai mai, da ƙarfin tasha 50mm² suna tabbatar da kwanciyar hankali na dogon lokaci.
★ Amincewa da Matsayin Duniya
An ba da izini ga IEC 60947-3-an yarda da duniya don kasuwanci da amfanin masana'antu masu haske.
★ Safe Aiki Guidance
Ya haɗa da tsawaita shawarwarin hannu don samfuran 125A-yana tabbatar da sarrafawa, sauyawar cikakken tafiya.
Aikace-aikace na yau da kullun
Canja wurin Wutar Gaggawa: Babban grid ↔ Generator (asibitoci, hasumiya ta wayar tarho)
Tsarukan Wutar Lantarki: Dual UPS ko sauyawar wuta
Injin Masana'antu: Zaɓin tushen don manyan injina ko tsarin dumama
Gudanar da Gine-gine: Ajiyayyen hasken wuta ko sarrafa wutar lantarki
Haɗin kai mai sabuntawa: Grid vs. tsarin keɓewar tsarin matasan hasken rana
Game da CDADA
★ Muna da ƙwararrun ƙungiyar R & D, suna da daidaitaccen tsarin haɓakawa. Zai iya ba da kyakkyawan sabis na musamman.

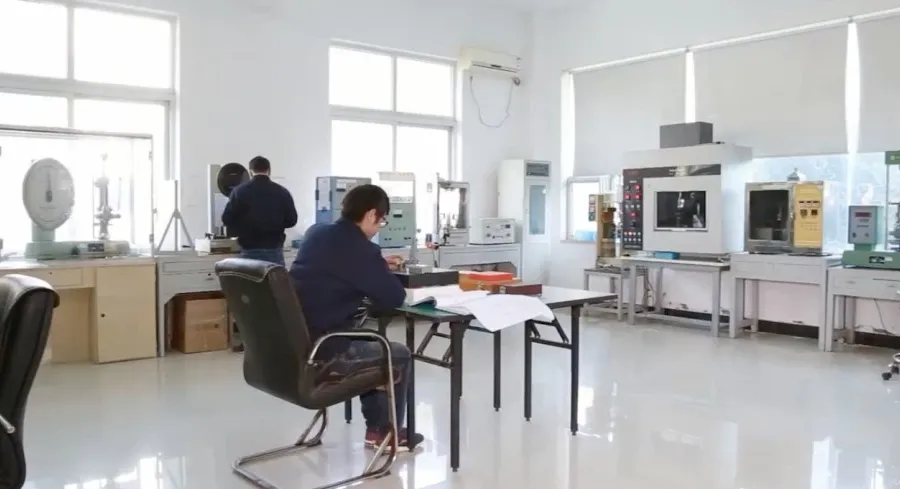

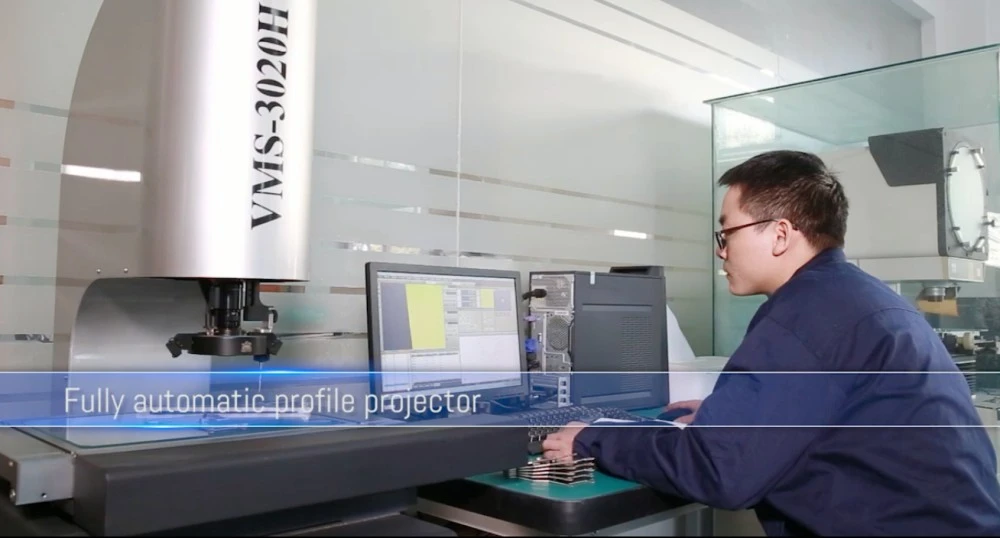

★ Muna da cikakken aikin dakin gwaje-gwaje, mu dakin gwaje-gwaje iya shaida dakin gwaje-gwaje , za mu iya yi thermal load, Magnetic, da tripping iyaka, inji rayuwa, EMC a cikin dakin gwaje-gwaje.
★ muna ba da shirye-shiryen haɗin gwiwar da aka tsara don masu rarrabawa, wakilai, da abokan haɗin gwiwar OEM a cikin manyan kasuwanni, samar da tallafin tallace-tallace, kayan tallace-tallace, da sharuɗɗan gasa.
★ Bayanin kamfani
Tambayoyin da ake yawan yi
Q1: Zan iya canza DIN Rail Changeover Switch 125A a ƙarƙashin kaya?
A1: A'a. Wannan canji ba shi da ikon kashe baka. Dole ne a yi aiki da shi kawai lokacin da aka cire kuzari ko kuma amfani da shi sosai azaman mai keɓewa (canjawa mara nauyi). Don canja wurin kaya mai rai, yi amfani da maɓalli na atomatik (ATS) ko cakuɗaɗɗen mai motsi.
Q2: Me yasa samfurin 125A ke buƙatar hannaye biyu ko tsayin tsayi?
A2: Tsarin bazara a cikin manyan samfura na yanzu yana haifar da ƙarfin inertial mai mahimmanci. Yin aiki da hannu ɗaya na iya haifar da rashin cikar hulɗar tuntuɓar juna, haifar da harbi ko zafi fiye da kima. CDADA tana ba da shawarar hannaye biyu ko abin da masana'anta suka samar don aminci, cikakken aikin tafiya.
Q3: Menene girman kebul ɗin da ake buƙata don 125A?
A3: Yi amfani da kebul na jan karfe 50mm² (kamar yadda aka bayar). Tabbatar an ƙarfafa tashoshi zuwa 3.5 N·m don hana zafi fiye da kima.
Q4: Ina bukatan fuses tare da wannan canji?
A4: iya. Tun da ba zai iya katse igiyoyin kewayawa ba, koyaushe shigar da fis ko MCBs masu ƙima don matakin kuskuren tsarin ku. Maɓallin yana ba da keɓewa/canzawar hannu kawai.
Q5: Me yasa zabar CDADA akan masu fafatawa don 125A canji?
A5: CDADA tana ba da:
● Matsakaicin madaidaici na gaske 3 interlock (babu jihohin iyo)
● Takaddun shaida na IEC 60947-3 tare da yarda da duniya
● Ingantacciyar ƙira ta thermal don shingen DIN-rail
● Bayyanar alamar gani na sauyawa matsayi
● Farashin farashi tare da tallafin fasaha a cikin Ingilishi
