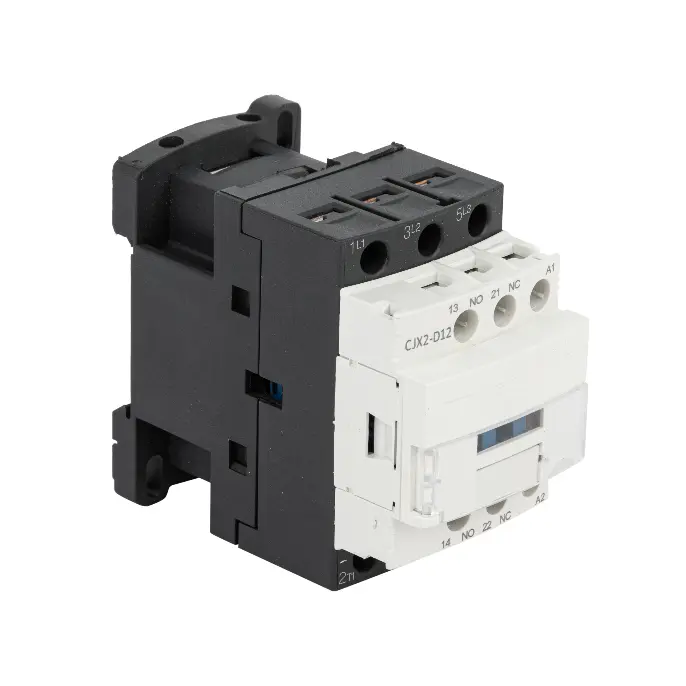

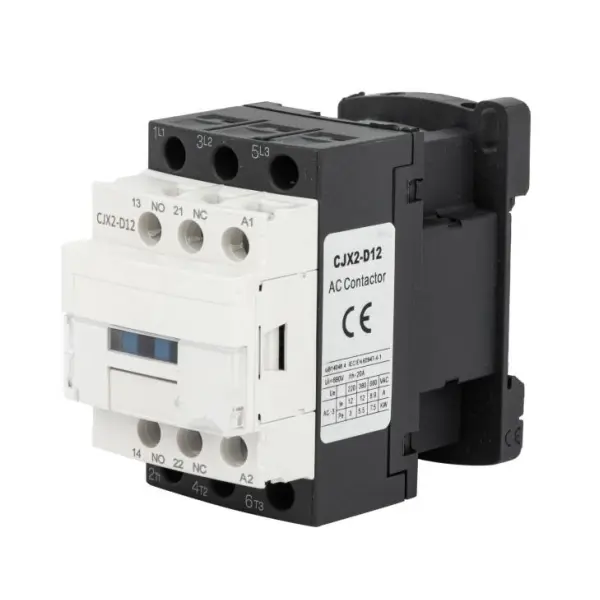

D Contactor
Model:LC1-D Series
Shanghai DADA Electric shine abin dogara kuma muna da samfuran mu, CDADA. D Contactor mu (LC1-D Series) an IEC 60947-4-1 bokan, 3P/4P, har zuwa 620A, AC-3/AC-4 rated. Zaɓuɓɓukan wutar lantarki mai faɗi. Muna ba da shawarar wannan samfurin don sarrafa mota & sarrafa kansa na masana'antu, tuntuɓe mu don ƙima.
Injiniyan abin dogaro da sarrafa motar da wutar lantarki tare da CDADA LC1-D Series D Contactor babban mai ba da sabis na AC wanda Shanghai DADA Electric CO., LTD ya tsara don saduwa da ka'idodin IEC / EN 60947-4-1. An gina shi don aikace-aikacen masana'antu, kasuwanci, da kayan aiki, jerin LC1-D suna goyan bayan 3-pole ko 4-pole jeri tare da ƙwararrun igiyoyi daga 9A zuwa 95A (har zuwa 620A a cikin bambance-bambance masu nauyi) kuma yana sarrafa 3-phase squirrel-cage motors har zuwa 45kW (a 15V-3-4).
An sanye shi da daidaitattun lambobin sadarwa na 1NO + 1NC, yana haɗawa ba tare da ɓata lokaci ba tare da jujjuyawar zafi don cikakken kariya ta mota. Tare da zaɓin AC ko DC coil (24V-600V), AC-3 da AC-4 nau'ikan amfani, da ƙaƙƙarfan ƙira da aka ƙididdige su don rufin 690V, CDADA D Contactor yana ba da ingantaccen aiki a cikin sake zagayowar farawa akai-akai, tsarin jigilar kaya, famfo, compressors, da raka'a HVAC-har ma a cikin yanayin da ake buƙata har zuwa 40m zafin jiki na 40m.
Maɓalli Maɓalli
Jerin: D Contactor
Marka: CDADA | Maƙerin: Shanghai DADA Electric Co., LTD
Matsayi: IEC/EN 60947-4-1
Takaddun shaida: CE
Sanduna: 3P ko 4P (zaɓi)
Ƙididdigar Aiki na Yanzu (AC-3): 9A - 95A (har zuwa 620A a cikin kewayo mai tsawo)
Ikon Ƙarfin Mota (AC-3):
380/415V: 4kW - 45kW
660/690V: har zuwa 45kW
Rukunin Amfani: AC-3 (Motoci-squirrel-cage), AC-4 (toshe & inching)
Ƙimar Insulation mai ƙima: 690V AC
Zazzabi na yanayi: -5°C zuwa +40°C
Tsayinsa: ≤2000m
Hawa: Jirgin sama na tsaye ±5°, Matsayin Hawan Jiki III
Lambobin Taimako: 1NO + 1NC (misali akan duk samfuran)
Zaɓuɓɓukan Kwanɗa:
AC Coils: 24V, 36V, 48V, 110V, 127V, 220V, 240V, 380V, 415V, 440V, 480V, 500V, 600V
Wutar lantarki: 24V, 36V, 48V, 110V, 220V
Takardar bayanan fasaha
|
Abubuwa |
Samfura |
LC1-D09 |
LC1-D12 |
LC1-D18 |
LC1-D25 |
LC1-D32 |
|
|
Sanda |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Tuntuɓar Taimako |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
||
|
Ƙididdigar dumama halin yanzu (A) AC-1 |
20 |
20 |
30 |
40 |
50 |
||
|
An ƙididdige aiki halin yanzu (A) |
380/400V |
AC-1 AC-4 |
9 |
12 |
18 |
25 |
32 |
|
3.5 |
5 |
7.7 |
8.5 |
12 |
|||
|
660/690V |
AC-3 AC-4 |
6.6 |
8.9 |
12 |
18 |
21 |
|
|
1.5 |
2 |
3.8 |
4.4 |
7.5 |
|||
|
Ƙimar wutar lantarki (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Ƙarfin sarrafawa 3-lokaci Motar cage (AC-3) |
kW |
220/230V AC 380/415V AC 660/690V AC |
2.2 |
3 |
4 |
5.5 |
7.5 |
|
4 |
5.5 |
7.5 |
11 |
15 |
|||
|
5.5 |
7.5 |
10 |
15 |
18.5 |
|||
|
AC nada (V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
DC nada (V) |
24,36,48,110,220 |
||||||
|
Abubuwa |
Samfura |
LC1-D40 |
LC1-D50 |
LC1-D65 |
LC1-D80 |
LC1-D95 |
|
|
Sanda |
3/4 |
3/4 |
3/4 |
3/4 |
3/4 |
||
|
Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwararren Ƙwaƙwalwa : AC-15 , Ue = 4 15V le = 0.95A Ith = 10A |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
1 NO+1NC |
||
|
Ƙididdigar dumama halin yanzu (A) AC-1 |
60 |
80 |
80 |
110 |
110 |
||
|
An ƙididdige aiki halin yanzu (A) |
380/400V |
AC-3 AC-4 |
40 |
50 |
65 |
80 |
95 |
|
18.5 |
24 |
28 |
37 |
44 |
|||
|
660/690V |
AC-3 AC-4 |
34 |
39 |
42 |
49 |
49 |
|
|
9 |
12 |
14 |
17.3 |
21.3 |
|||
|
Ƙimar wutar lantarki (V AC) |
690 |
690 |
690 |
690 |
690 |
||
|
Ƙarfin sarrafawa 3-lokaci Motar cage (AC-3) |
KW |
220/230V AC 380/415V AC 660/690V AC |
11 |
15 |
18.5 |
22 |
25 |
|
18.5 |
22 |
30 |
37 |
45 |
|||
|
30 |
37 |
37 |
45 |
45 |
|||
|
AC nada (V) |
24,36,48,110,127,220,240,380,415,440,480,500,600 |
||||||
|
DC nada (V) |
24,36,48,110,220 |
||||||
|
Abubuwa |
Samfura |
LC1-D115 |
LC1-D150 |
LC1-D170 |
LC1-D205 |
Saukewa: LC1-D245 |
|||||||
|
Sanda |
3 |
3 |
3 |
3/4 |
3/4 |
||||||||
|
Ƙididdigar dumama halin yanzu (A) AC-1 |
200 |
200 |
200 |
275 |
280 |
||||||||
|
An ƙididdige aiki halin yanzu (A) |
380/400V |
AC-3 AC-4 |
115 |
150 |
170 |
205 |
245 |
||||||
|
50 |
65 |
70 |
75 |
85 |
|||||||||
|
660/690V |
AC-3 AC-4 |
70 |
90 |
100 |
108 |
115 |
|||||||
|
25 |
32 |
35 |
38 |
40 |
|||||||||
|
Ƙimar wutar lantarki (V AC) |
690 |
690 |
690 |
690 |
690 |
||||||||
|
Ƙarfin sarrafawa 3-lokaci Motar cage (AC-3) |
kW |
380/415V AC 660/690V AC |
55 |
75 |
75 |
90 |
110 |
||||||
|
80 |
100 |
100 |
110 |
140 |
|||||||||
|
AC nada (V) |
110,127,220,240,380,415,440,480,500,600 |
||||||||||||
|
Abubuwa |
Samfura |
LC1-D300 |
LC1-D410 |
LC1-D475 |
Saukewa: LC1-D620 |
||||||||
|
Sanda |
3/4 |
3/4 |
3/4 |
3/4 |
|||||||||
|
Ƙididdigar dumama halin yanzu (A) AC-1 |
360 |
430 |
580 |
850 |
|||||||||
|
An ƙididdige aiki halin yanzu (A) |
380/400V |
AC-3 AC-4 |
300 |
410 |
475 |
620 |
|||||||
|
124 |
150 |
185 |
188 |
||||||||||
|
660/690V |
AC-3 AC-4 |
190 |
235 |
290 |
360 |
||||||||
|
60 |
72 |
85 |
170 |
||||||||||
|
Ƙimar wutar lantarki (V AC) |
690 |
690 |
690 |
690 |
|||||||||
|
Ƙarfin sarrafawa 3-lokaci Motar cage (AC-3) |
kW |
380/415V AC 660/690V AC |
160 |
200 |
250 |
335 |
|||||||
|
220 |
280 |
330 |
450 |
||||||||||
|
AC nada (V) |
110, 127, 220, 240, 380, 415, 440, 480, 500, 600 |
||||||||||||

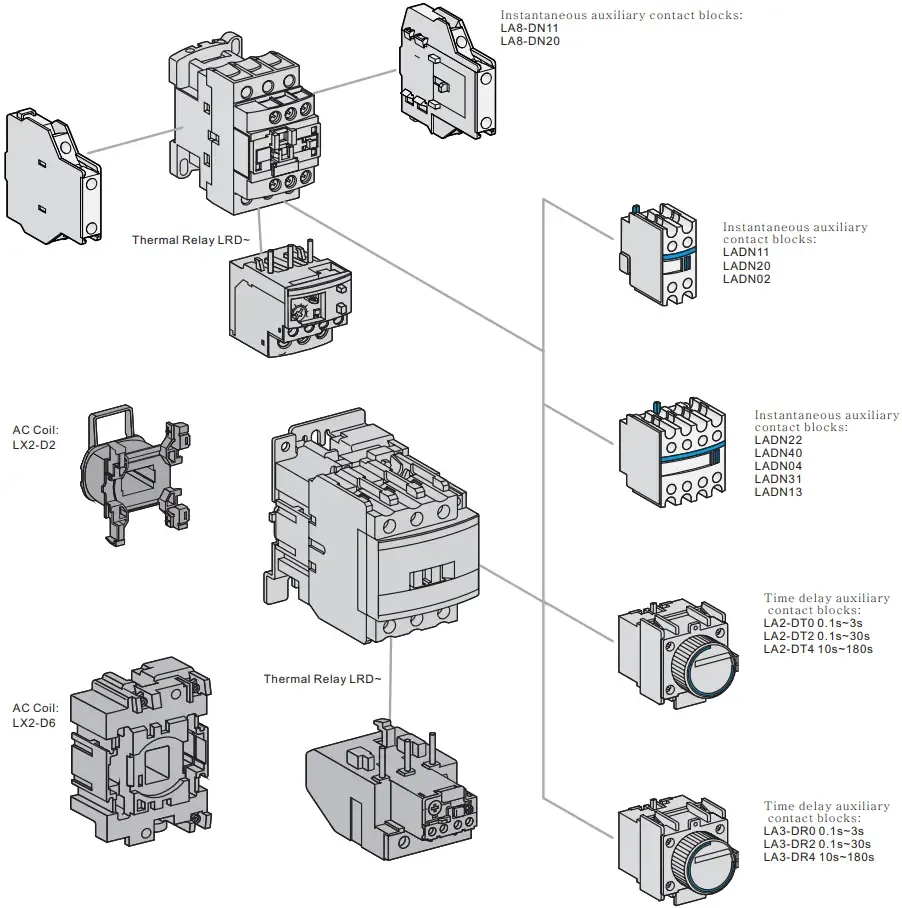

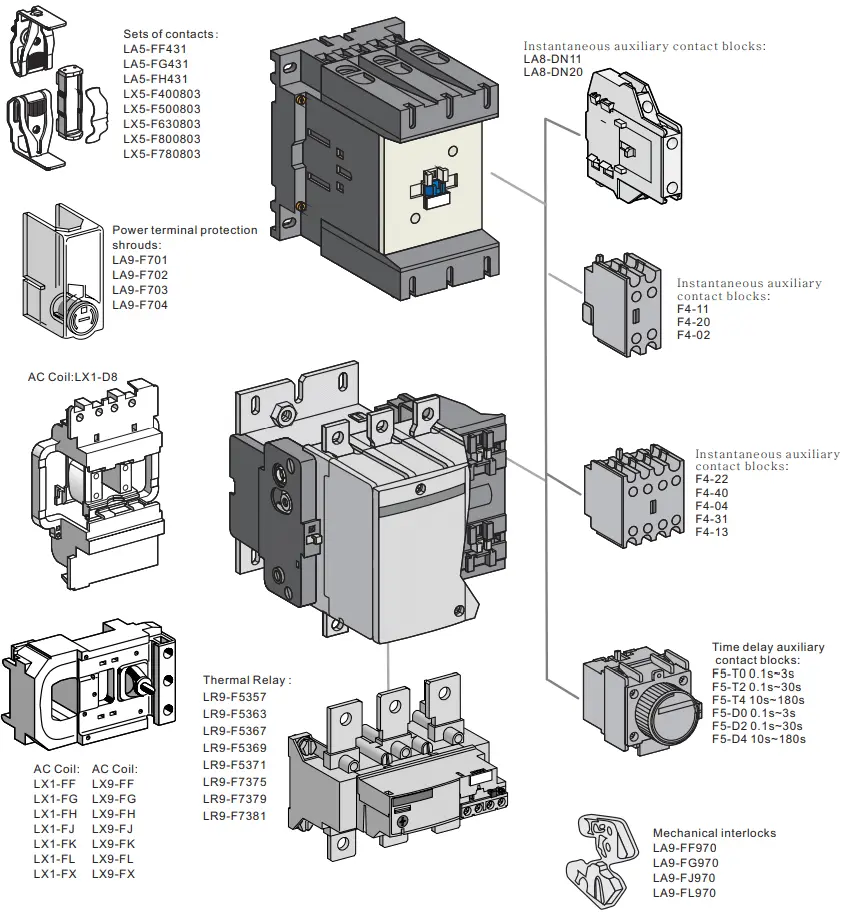

Na'urorin haɗi
Me yasa Zabi CDADA D Contactor?
★ Haqiqa IEC Biyayya
An tsara shi kuma an gwada shi zuwa IEC / EN 60947-4-1 - yana tabbatar da yarda da haɗin gwiwa a duniya.★ Cikakken Maganin Kula da Motoci
Haɗa tare da relays CDADA na zafi mai zafi don cikakkun majalissar masu fara motsa mota-yawanci + gajeriyar kewayawa + keɓewa.★ Faɗin Wutar Lantarki
Zaɓi daga 13 AC da 5 DC ƙarfin lantarki-mai kyau don ayyukan duniya ko gauraye-ƙarashin wutar lantarki.★ Mai Karfi Don Yin Nauyin Ayyuka
Yana goyan bayan aikin AC-4 (juyawa / juye-juye) - cikakke ga cranes, lif, da masu jigilar kaya.★ Haɗin kai-da-Play
Madaidaicin lambobi masu taimako na 1NO+1NC suna ba da damar haɗawa cikin sauƙi, sigina, ko amsawar PLC.★ Dogaran-Masana'antu
An gwada don tsayin juriyar wutar lantarki, ƙarancin juriyar hulɗa, da tsayayyen kashe baka - rage raguwar lokaci.★ Mu key abũbuwan amfãni ne: 1) Complete kasa da kasa certifications, 2) Strong OEM / ODM iyawa, 3) High kudin-yi rabo, 4) dogara manyan-sikelin samar iya aiki, 5) Extensive fitarwa kwarewa.
★ An samu nasarar fitar da samfuranmu zuwa kudu maso gabashin Asiya, Gabas ta Tsakiya, Kudancin Amurka, Afirka, Turai, da ƙasashen CIS, tare da mai da hankali sosai kan kasuwannin Belt da Road.
Aikace-aikace na yau da kullun
Motoci masu farawa: famfo, magoya baya, compressors, mahaɗa
HVAC Systems: Chiller & Mai sarrafa busa
Kayan Automation na Masana'antu: Layukan jigilar kayayyaki, injinan tattara kaya
Gudanar da Gini: Gudanar da lif, bankunan haske
Makamashi & Ruwa: Maganin sharar ruwa, tsarin ban ruwa
Tambayoyin da ake yawan yi
Q1: Menene ma'anar "D Contactor"?
A1: “D” yana nufin jerin nadi (LC1-D) da aka yi amfani da shi a duniya don wannan na'ura mai daidaitawa, daidaitaccen dandamali na abokin hulɗa na AC. Ba rarrabuwa ba ne na fasaha-amma an san shi sosai a ginin panel don dacewarsa tare da na'urorin haɗi kamar jujjuyawar juye-juye da makullin injina.
Q2: Menene bambanci tsakanin AC-3 da AC-4 wajibi?
A2:● AC-3: Farawa na al'ada / tsayawa na squirrel-cage Motors (misali, famfo, magoya). Ƙananan damuwa.
● AC-4: Yawan toshewa, inching, ko juyawa (misali, cranes, hoists). Mafi girman damuwa na lantarki → yana buƙatar ƙarin lambobi masu ƙarfi. → CDADA LC1-D an ƙididdige shi duka biyun, yana mai da shi mai girma.
Q3: Zan iya amfani da wannan mai tuntuɓar ba tare da relay mai yawa ba?
A3: Ba a ba da shawarar don lodin mota ba. Mai tuntuɓar kawai yana canza wuta-ba ya karewa daga abubuwan da suka wuce kima. Koyaushe haɗa tare da ma'aunin zafi ko na lantarki don amincin mota.
Q4: Akwai nau'ikan igiyoyi 4?
A4: iya! Duk samfuran LC1-D suna goyan bayan daidaitawar 3P ko 4P-manufa don aikace-aikacen tsaka tsaki ko tsarin waya 4.
Q5: Me yasa zabar CDADA akan sauran masu tuntuɓar jerin D?
A5: CDADA tana ba da:● Gaskiyar IEC 60947-4-1 yarda da rahotannin gwaji
● Faɗin wutar lantarki na coil (ciki har da 415V, 480V, 600V don fitarwa)
● Madaidaicin inganci tare da lambobin azurfa-alloy da chutes arc
● OEM-friendly farashin da sauri samfurin juyawa
● Takaddun shaida na duniya (CE) da takardun Ingilishi
