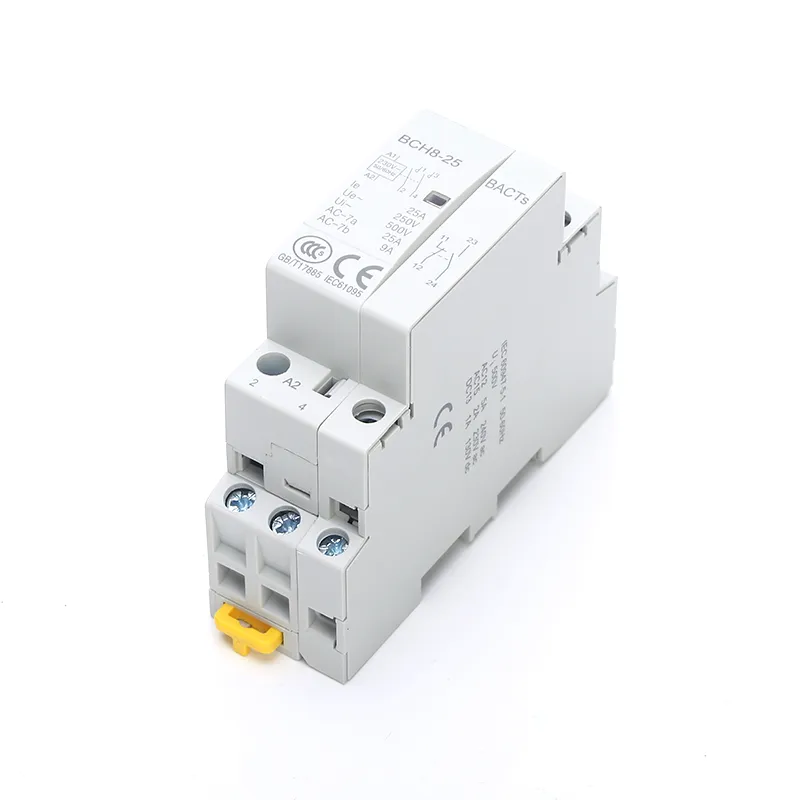

Saukewa: BCH8
CDADA amintaccen maroki ne na BCH8 Contactor, za mu iya ba da goyan bayan fasaha da garanti don samfuranmu. Wannan mai tuntuɓar ya yi shiru, 16-125A, don haske, HVAC & ƙananan injuna. Ya dace da IEC61095/IEC60947-4-1. DIN-rail saka, IP40 a cikin panel, dace don amfani da gine-gine masu wayo & wuraren jama'a.

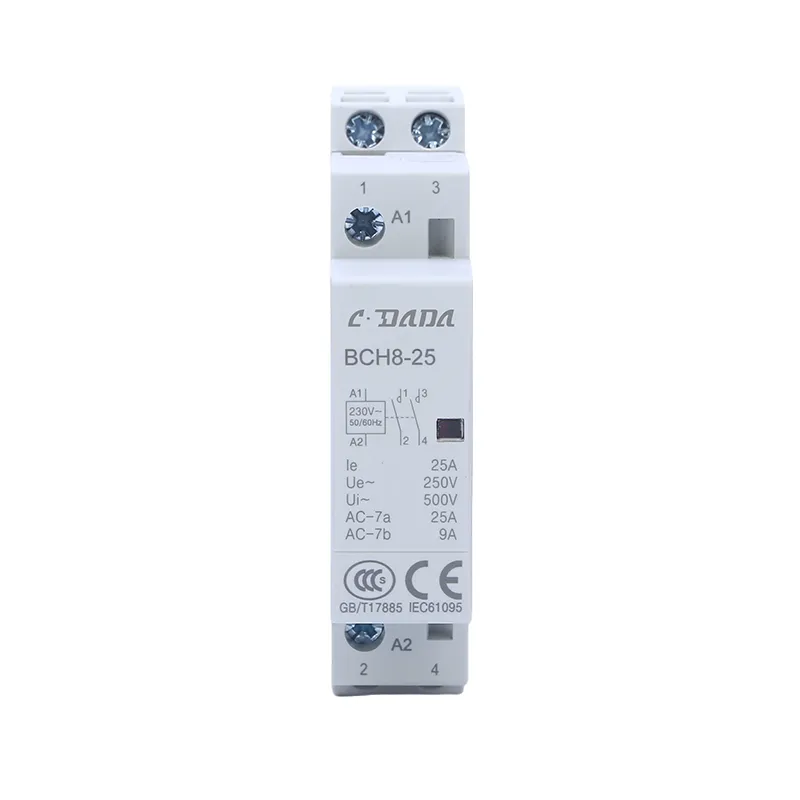

Haɗu da CDADA BCH8 Contactor — ƙaƙƙarfan bayani, na zamani, da matsananciyar shiru, wanda amintaccen masana'anta, CDADA ke bayarwa. Har ila yau, an san shi da "gidan gida" ko "mai tuntuɓar ginin," BCH8 an ƙera shi don sauyawa mai nisa na juriya da ƙananan kayan aiki kamar na'urori masu haske, masu dumama ruwa, tsarin geothermal, masu rufewa, da ƙananan motoci na gida.
An ƙididdige shi har zuwa 125A (AC-1) da 50A (AC-3) a 400V, yana aiki da dogaro a cikin yanayin yanayin yanayi daga -5 ° C zuwa + 60 ° C kuma yana hawa kai tsaye akan daidaitattun TH35 DIN rails - cikakke don haɗawa tare da MCBs a cikin allunan rarraba. Tare da kariya ta IP40 lokacin shigar, babu hayaniya mai aiki, da bayyananniyar taga mai nuna matsayi, BCH8 ya dace don otal-otal, asibitoci, ofisoshi, manyan kantuna, da gine-gine masu wayo.
Mai jituwa tare da IEC 61095, IEC 60947-4-1, GB17885, da GB/T 14048.4, yana goyan bayan ƙarfin sarrafa SELV/ELSV (12-240V AC / DC) kuma yana ba da kewayon inji na 1 miliyan da 100,000 na ayyukan lantarki na kwantar da hankali ba tare da jurewa ba.
Maɓalli Maɓalli
| Jerin: | BCH8 Modular AC Contactor |
| Alamar: | CDADA | Maƙerin: Shanghai DADA Electric Co., LTD |
| Sanduna: | 1P, 2P, 3P, 4P (haɗin NO/NC iri-iri) |
| Ƙimar Yanzu (AC-1): | 16A-125A |
| Ƙimar Yanzu (AC-3): | 6A - 50A (don ƙananan kayan hawan mota) |
| Ƙimar Wutar Lantarki Mai Aiki: | 250V (1P/2P), 400V (3P/4P) |
| Ƙimar Insulation Voltage (Ui): | 500V |
| Wutar Lantarki: | AC/DC 12V, 24V, 48V, 110V, 230V (fadi SELV kewayon) |
| Matsayi: | IEC 61095, IEC 60947-4-1, GB17885 |
| Rayuwar Injiniya: | ≥1,000,000 ayyuka |
| Rayuwar Wutar Lantarki: | ≥100,000 ayyuka |
| Matsakaicin Mitar Canjawa: | 30 ops / awa, 100 ops / rana |
| Matsayin gurɓatawa: | II | Yawan Wutar Lantarki: II |
| Ƙimar Kariya: | IP20 (jiki), IP40 (a cikin yadi) |

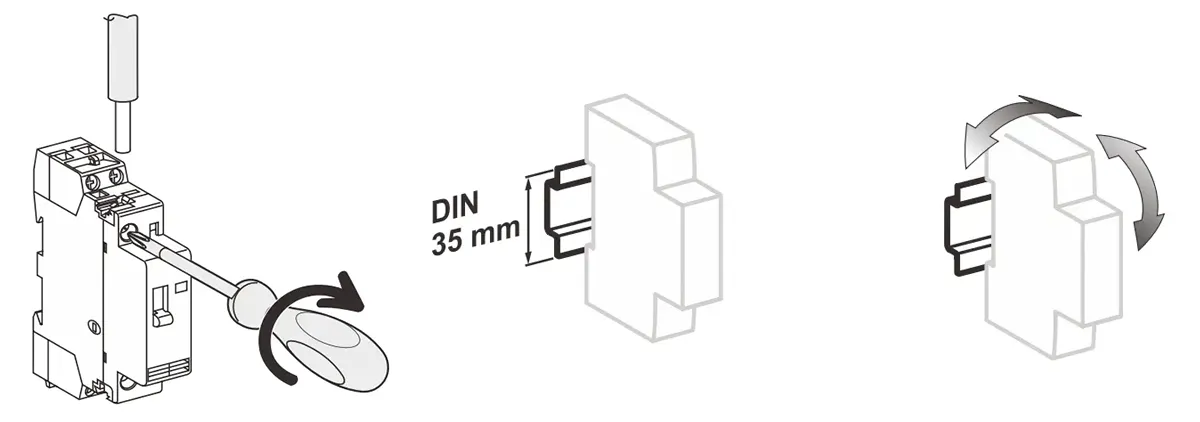

| Shigarwa: | TH35-7.5 DIN dogo, tsaye ± 5° |
Siffofin Musamman:
★ Aiki shiru (mai kyau ga asibitoci/otal)
★ Matsayin taga
★ Zaɓin sokewa da hannu (akan zaɓi samfuri)
★ Spacers for zafi dissipation a m bangarori

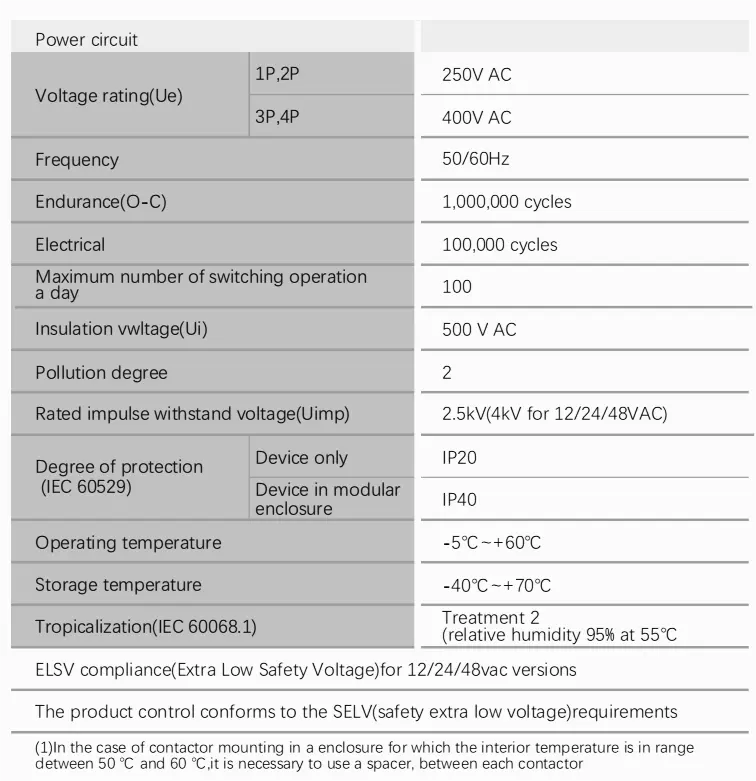

Takardar bayanan Fasaha
Me yasa Zabi CDADA BCH8 Contactor?
★ An ƙera shi don Gine-gine masu wayo
Cikakke don sarrafa hasken wuta, yankin HVAC, da masu rufewa ta atomatik a cikin ayyukan kasuwanci/na zama.
★ Aiki Silent
Babu humming ko buzzing-mahimmanci ga asibitoci, otal-otal, dakunan karatu, da gidaje.
★ Modular & Space-Ajiye
Matsakaicin ɗimbin yawa mm 9 sun dace ba tare da wani lahani ba kusa da MCBs-babu ƙarin braket ko adaftan.
★ Amincewar Duniya
Haɗu da IEC 61095 (Masu tuntuɓar gida) da IEC 60947-4-1 (masana'antu) - Amintattun masu tabbatar da dual.
★ Tallafin Kula da SELV
Ya yarda da 12–48V AC/DC—mai kyau don PLC, BMS, ko tsarin gida mai wayo ta amfani da ƙananan ƙarfin lantarki.
★ Babban Dorewa
1M hawan keke yana tabbatar da shekaru na sabis na kyauta a cikin aikace-aikacen sake zagayowar.

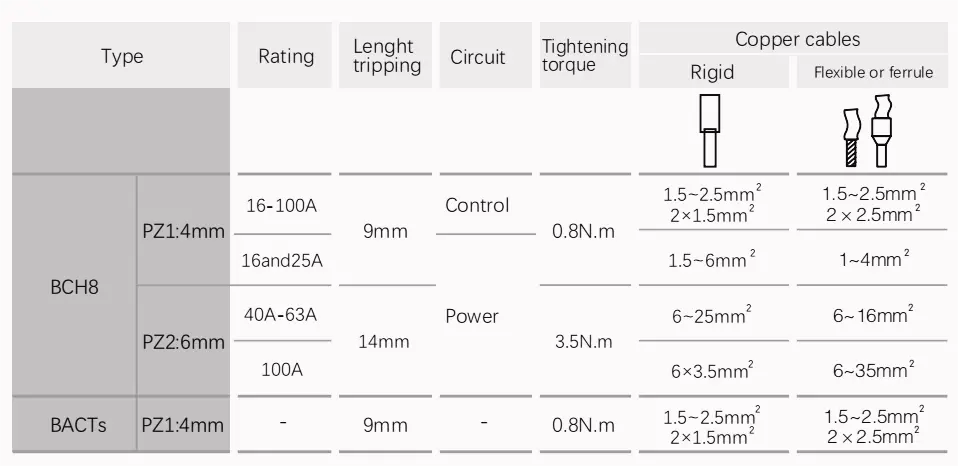

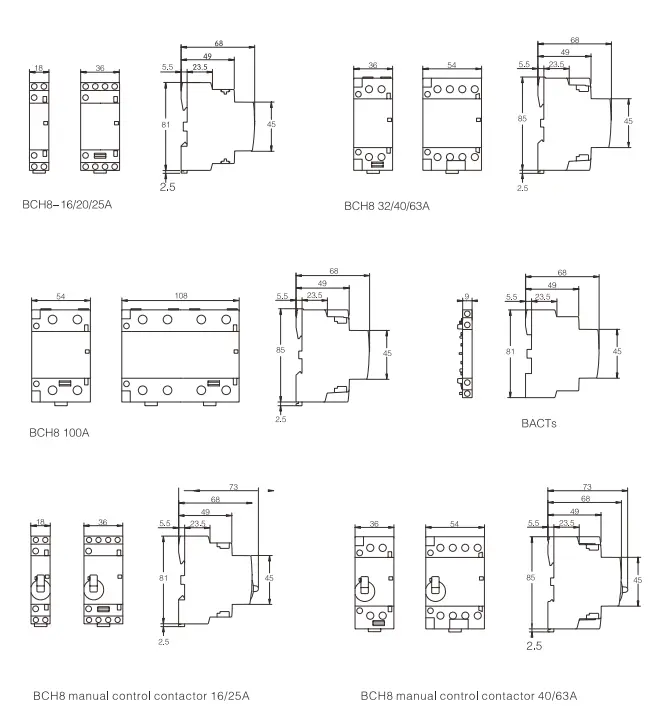

★ Ma'aunin Haɗa
Aikace-aikace na yau da kullun
★ Kula da Haske: Filin wasa, manyan kantuna, hanyoyin ofis
★ Gine-gine Automation: Roller shutters, geothermal dumama bene, ruwa famfo
★ Kayayyakin Jama'a: Asibitoci, filayen jirgin sama, cibiyoyin sabis na gwamnati
★ Residential: Smart homes, Apartment complexes, villa energy management
★ OEM Panels: Haɗe cikin allunan rarraba hankali
Ƙimar Ƙarfafawa
Me yasa zabar CDADA?
★ Strong abokin ciniki tushen
★ Mun mallaki haƙƙin mallaka sama da 60 na ƙasa, gami da ƙirƙira, samfuran kayan aiki, da ƙira.
★ Injiniyoyinmu na tallace-tallace na iya taimaka muku zaɓi mafi dacewa samfurin bisa ga aikace-aikacenku, kaya, da buƙatun tsarin ku.
★ An samar da samfuranmu don ayyukan grid na wutar lantarki, masana'antu masana'antu, gine-ginen kasuwanci, da ayyukan more rayuwa a ƙasashe da yawa.
★ Babban fa'idodinmu shine:
1) Cikakken takaddun shaida na duniya,
2) ƙarfi OEM / ODM iyawa,
3) High cost-performance rabo,
4) Amintaccen ƙarfin samarwa mai girma, 5) ƙwarewar fitarwa mai yawa.
Tambayoyin da ake yawan yi
Q1: Shin BCH8 Contactor ya dace da sarrafa motar?
A1: Ee-amma ga ƙananan injinan gida (misali, kofofin gareji, ƙananan famfo). An ƙididdige shi don AC-3 har zuwa 50A (samfurin 125A). Don injinan masana'antu, yi amfani da masu tuntuɓar jerin jerin F ko D.
Q2: Me yasa yake buƙatar masu sarari a cikin panel?
A2: BCH8 yana haifar da zafi yayin ci gaba da aiki. Masu sarari (3mm/9mm) tsakanin raka'a suna haɓaka kwararar iska kuma suna hana zafi fiye da kima a cikin akwatunan rarraba cunkoso.
Q3: Za a iya sarrafa shi ta tsarin gida mai wayo?
A3: Lallai! Tare da zaɓuɓɓukan coil na 12V/24V DC, yana haɗa kai tsaye tare da KNX, BACnet, PLCs, ko masu kula da tushen Rasberi Pi.
Q4: Menene bambanci tsakanin BCH8 da masu tuntuɓar masana'antu?
A4:
● BCH8: An inganta shi don shiru, sauyawa akai-akai na hasken wuta / nauyin juriya; Ya dace da IEC 61095.
● Masana'antu (misali, LC1-F): An gina shi don manyan motoci na yanzu, aikin AC-4, da kuma yanayi mai tsanani.
→ BCH8 = ginin jin dadi; F/D jerin = ikon masana'anta.
Q5: Me yasa zabar CDADA BCH8 akan sauran samfuran?
A5: CDADA tana ba da:
● Zane na gaskiya na zamani tare da daidaitattun daidaituwa na DIN
Biyu Biyu (IEC 61095 + IEC 60947-4-1)
● Ƙananan ƙarfin wutar lantarki na SELV don tsarin wayo
● Ayyukan sifili - an tabbatar da shi a cikin gwaje-gwaje na zahiri
● Farashin farashi tare da cikakken tallafin fasaha na Ingilishi
